B2 Audio Dual 8" 1000W Peak Dual 2 Ohm Vented Subwoofer Enclosure with Amplifier

• Dual 8" Subwoofers: Pre-installed in a vented enclosure for precise and powerful bass
• Power Handling: 1000W RMS, 2000W max for high-performance sound output
• Durable Build: Features corner bracing, dual baffle, and airflow-optimized slot ports to reduce flex and maximize performance
• Compact Design: Fits the entire width of most vehicle trunks with angled back for enhanced internal volume and stability
• Impedance: Dual 2 Ohm voice coils, compatible with 1-ohm or 4-ohm amplifier setups

B2 Audio Dual 8" 1000W RMS 2 Ohm Vented Loaded Subwoofer Enclosure DVPE28

This listing includes:

• (1) Vented Loaded Dual 8" B2 Audio Enclosure


• (1) MICRO Series 1-Ohm 1000W Monoblock Amplifier

The DVPE28 is more than loaded prefab enclosures. Features like bracing, acoustilux, airflow optimization, and L and J-shaped slot ports, along with a dual baffle, are usually reserved for custom-built enclosures. However, the DVPE incorporates all of the above and comes with dual 8†woofers, ready to satisfy any bass cravings.

DUAL SUB PORTED ENCLOSURES

DVPE 28 / DVPE 212 goes beyond what you can expect from a prefab. They offer a wider frequency response and a tuning frequency that makes sense so you can enjoy your music without limitations. This is also reflected in the size of the enclosures. The DVPEs are made to fit, utilizing the entire width of most vehicle’s trunk space, and having an angled back to increase the inner volume. All of this helps achieve more bass with less power.

CORNERS & ANGLES

NO FLEX should be a fundamental consideration when constructing enclosures. Regrettably, many enclosures do not match their external appearance internally. The presence of flex can significantly impact both performance and overall quality. The DVPE features corner bracing, full-height slot ports (which also act as bracing), and a wedged design to enhance stability.

With a tuning of 40 Hz, one would typically require longer ports or a larger enclosure. However, in our case, the ports are designed with 3 90-degree bends, each featuring an angled/rounded curve to optimize airflow and maximize the performance of these enclosures.

The 2 x 8 or 2 x 12 configurations can be connected in either a 1-ohm or 4-ohm load, allowing them to be compatible with amplifiers of varying sizes.

Enclosure Specifications:

• Frequency Response: 25 Hz - 500 Hz


• Sensitivity: 90 dB


• Nominal Impedance: 2+2 Ohm


• Tuning Frequency: 40 Hz


• Power Handling: 400W RMS / 1000W Max


• Enclosure volume: 1.94 cu. ft / 55.6L


• Dimensions: 33.46" x 11.60" x 14.76"


• Port Area: 9.52 Cubic inches / 159 cm


• Port Length: 5.6"


• Configuration: Dual 8"


• Cone Material: Non-Pressed Coated Paper


• Voice Coil Dim: 1.5"


• Voice Coil Material: Copper


• Magnet Weight oz: 4 x 30 Oz


• Gross Weight: 47.4LB / 21.5Kg

Enclosure Dimensions:

• Length: 33.5"


• Width:   15"


• Height:  11.5


• Weight: 42.75 lb.

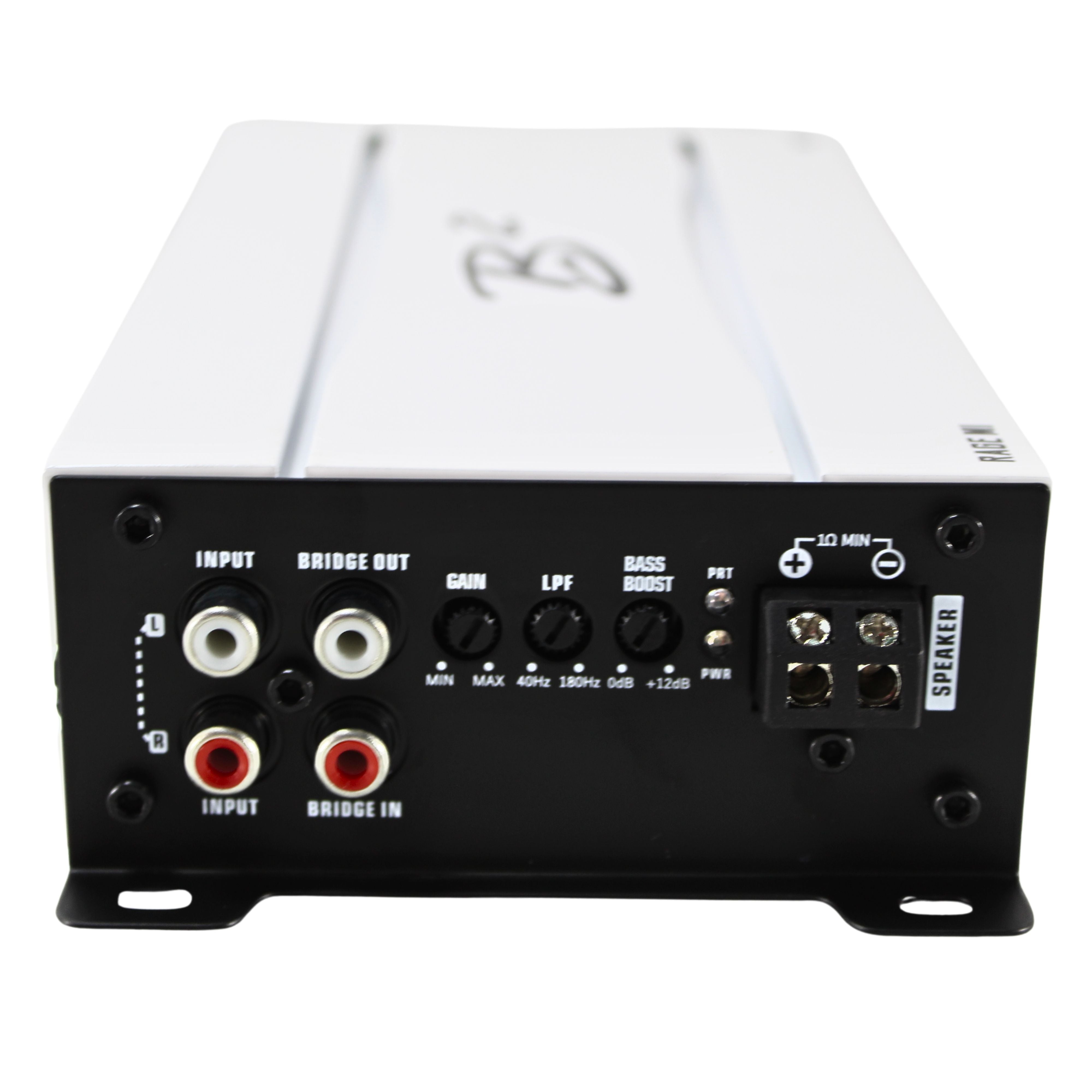

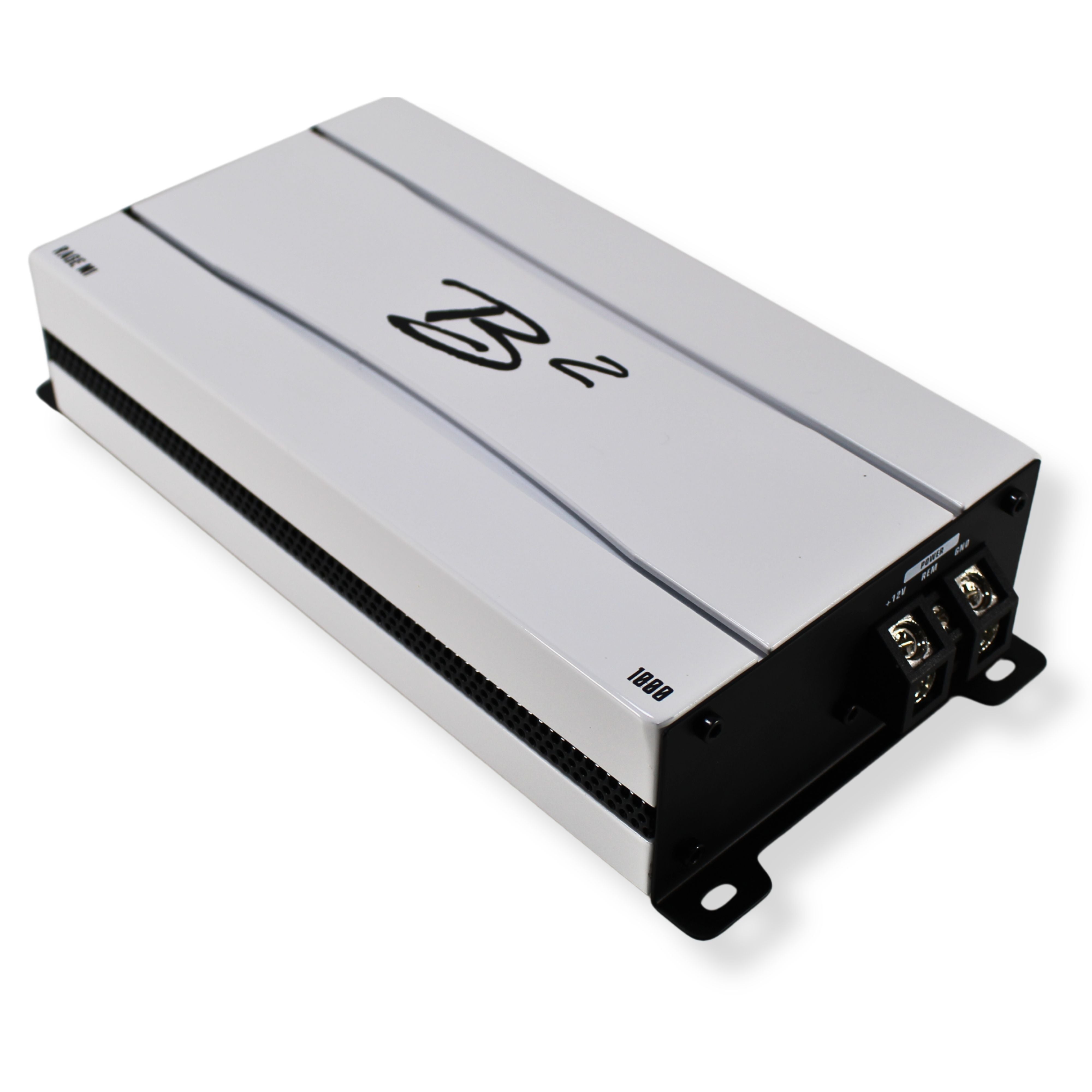

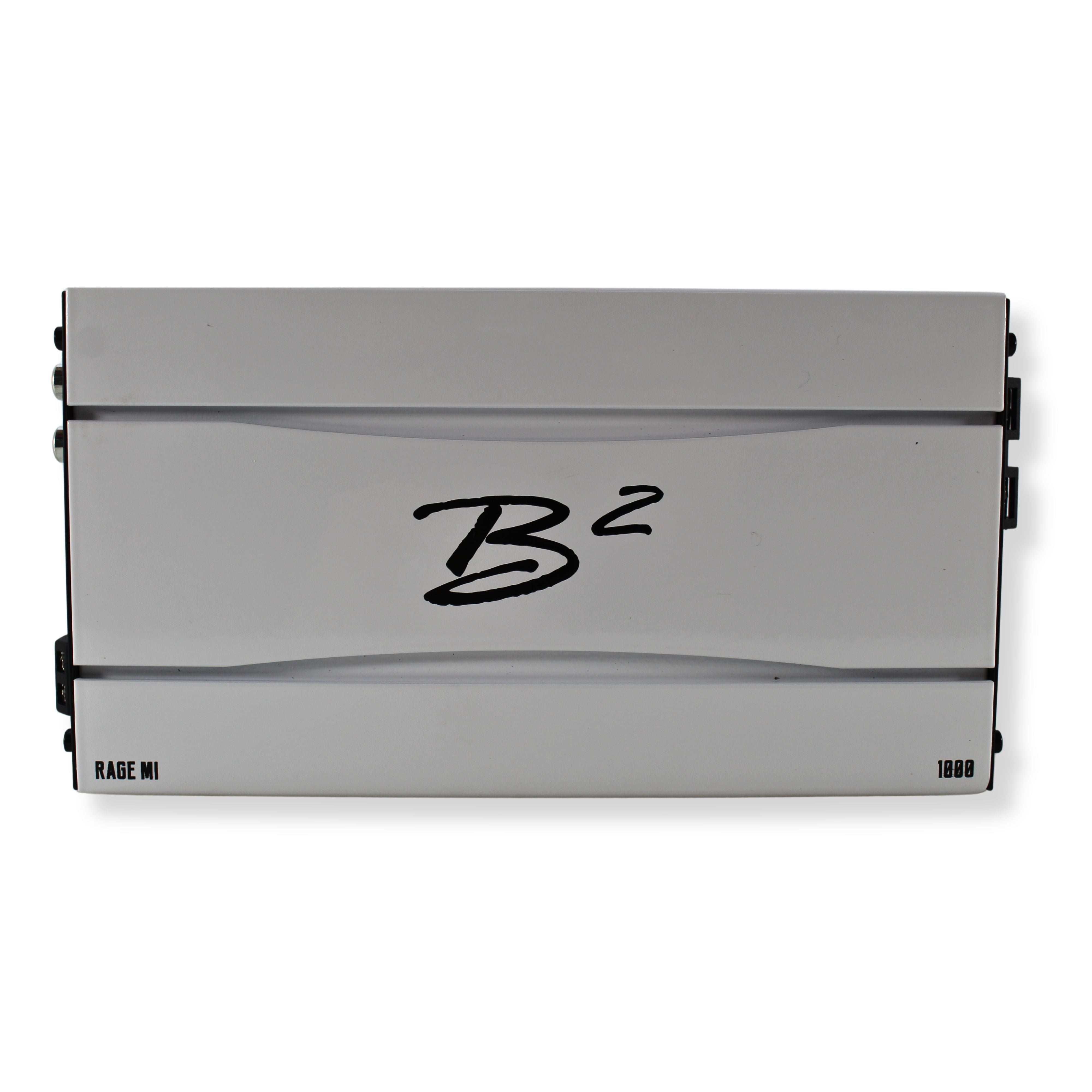

Amplifier Specifications:

• Total Watts: 1000W


• RMS Power @ 4 ohm: 400W


• RMS Power @ 2 ohm: 700W


• RMS Power @ 1 ohm: 1000W


• Circuit Configuration: Class D Monoblock


• Frequency Response: 18 Hz ~ 180 Hz


• Signal to Noise Ratio: >95 dB


• Input Sensitivity: 0.2V ~ 6V


• Crossover Circuit: 12 DB / Octave


• Low Pass Crossover: 40 Hz ~ 180 KHz


• High Pass Crossover: N/A


• Damping Factor: >400

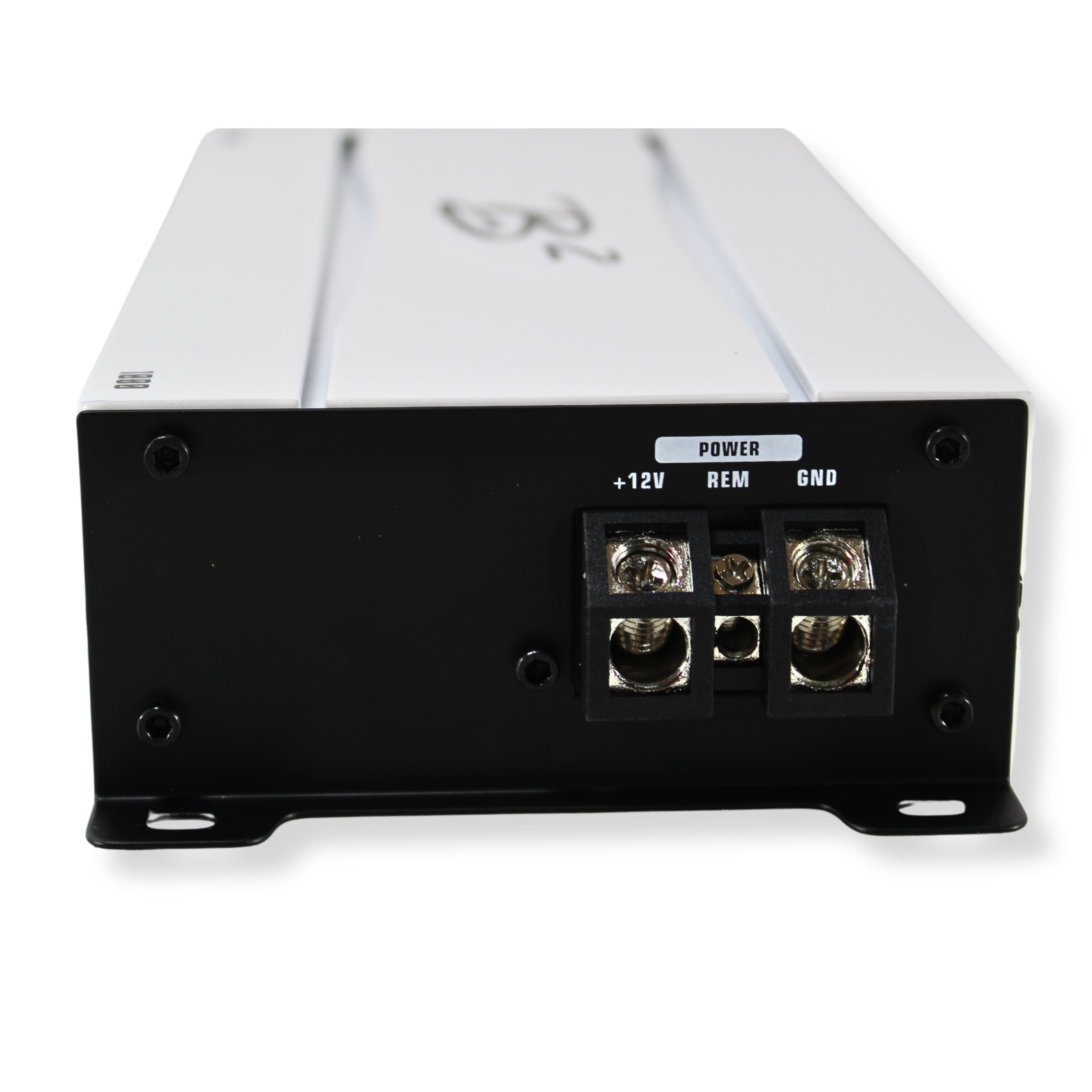

• Power Terminal Gauge: 8 AWG


• Fuse Rating: 80 A

Amplifier Measurements:

• Length: 7.91" / 201mm


• Width: 4.33" / 110mm


• Height: 1.81" / 46mm
