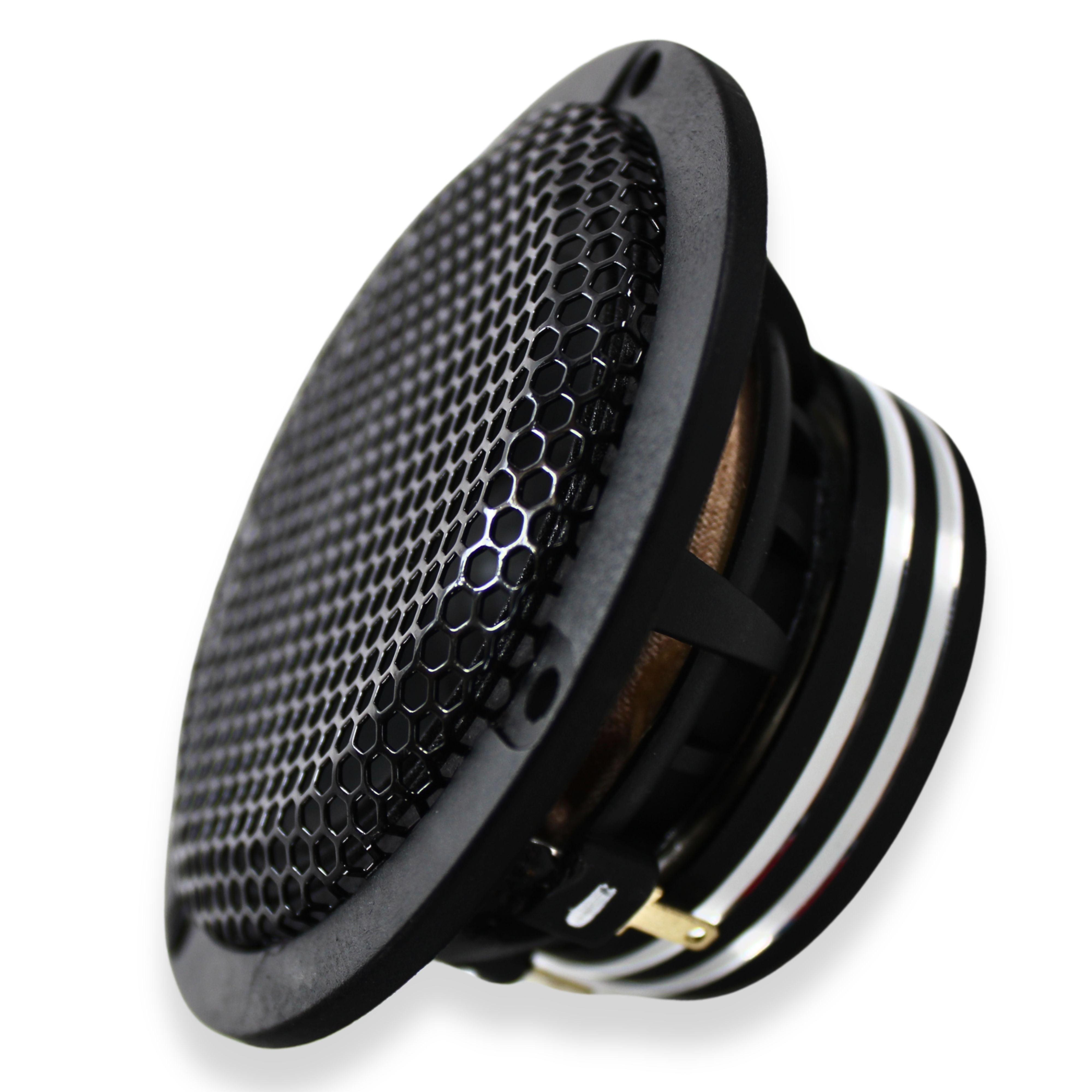

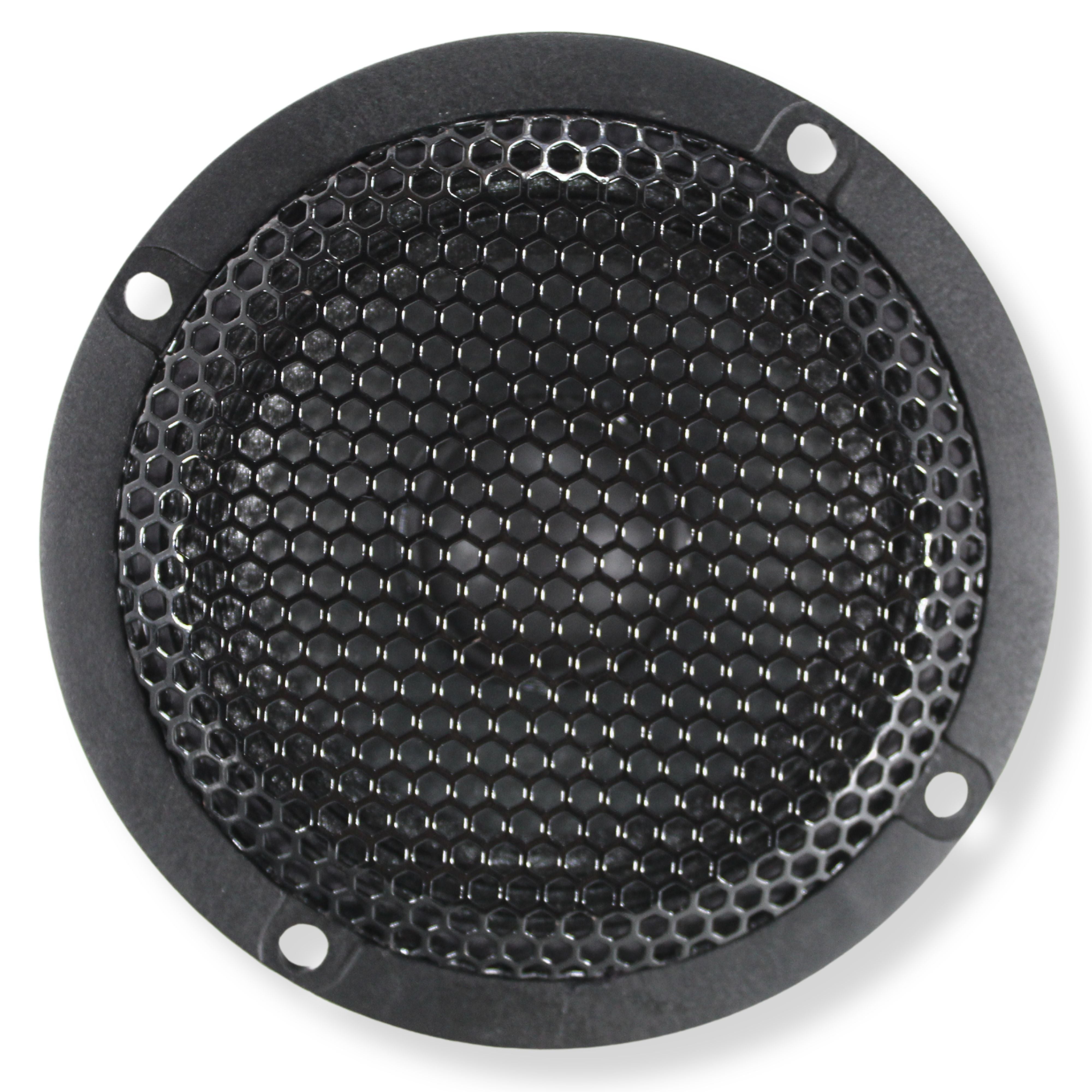

B2 Audio RAGE 3" 80 Watt RMS 6-Ohm Coated Paper Cone Midrange W/ 3-Way Crossover

B2 Audio RAGE 3" 80 Watt RMS 6-Ohm Coated Paper Cone Midrange W/ 3-Way Crossover

SKU:B2-RAGE63MRXO

Regular price $179.95
Regular price $224.95 Sale price $179.95
Sale Sold out

This product includes a free CPS 2 Year Extended Warranty card that will be shipped with your order. You will need to follow the information on the card to register your warranty for this product.

  • High-Performance Midrange: Enjoy clear and detailed midrange frequencies with these 3" coated paper cone speakers from B2 Audio RAGE series.
  • Powerful RMS Handling: Each speaker handles 80W RMS power, delivering robust and dynamic sound reproduction.
  • Complete Audio Solution: Includes 3-way crossovers for seamless integration into your car audio system.
  • Versatile Compatibility: With a nominal impedance of 6 Ohm, these speakers are compatible with a wide range of setups.
  • Enhanced Sound Quality: Designed with optimized Thiele & Small parameters for superior audio performance.


B2 Audio RAGE 3" 80 Watt RMS 6-Ohm Coated Paper Cone Midrange W/ 3-Way Crossover





This Listing Includes:

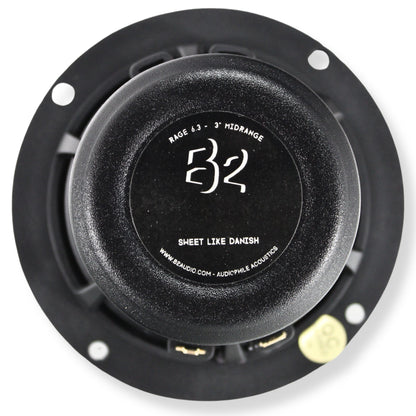

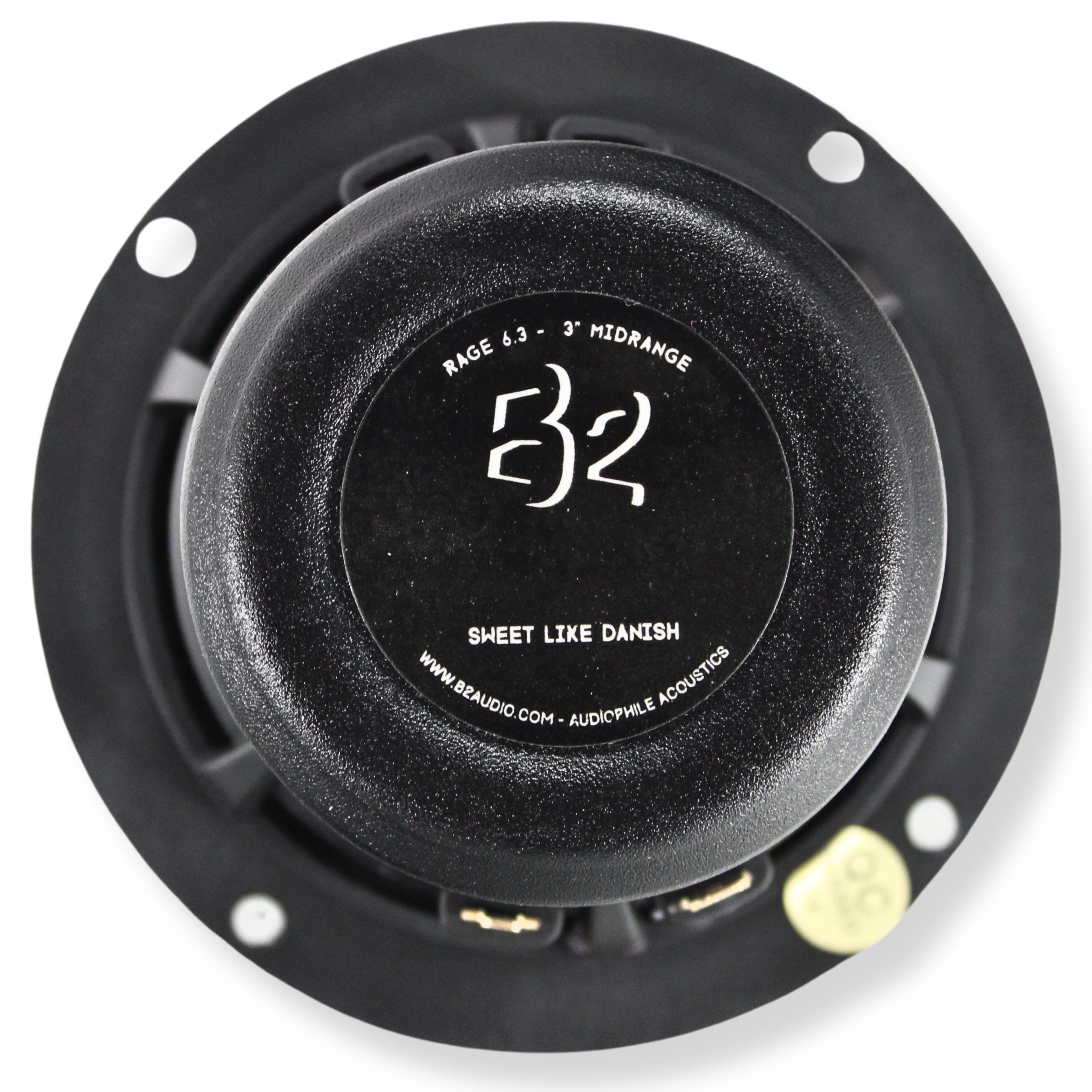

  • (2) 3" 80W 6 Ohm Coated Paper Cone Midrange Speakers

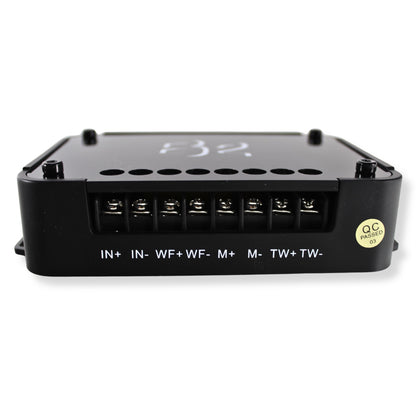

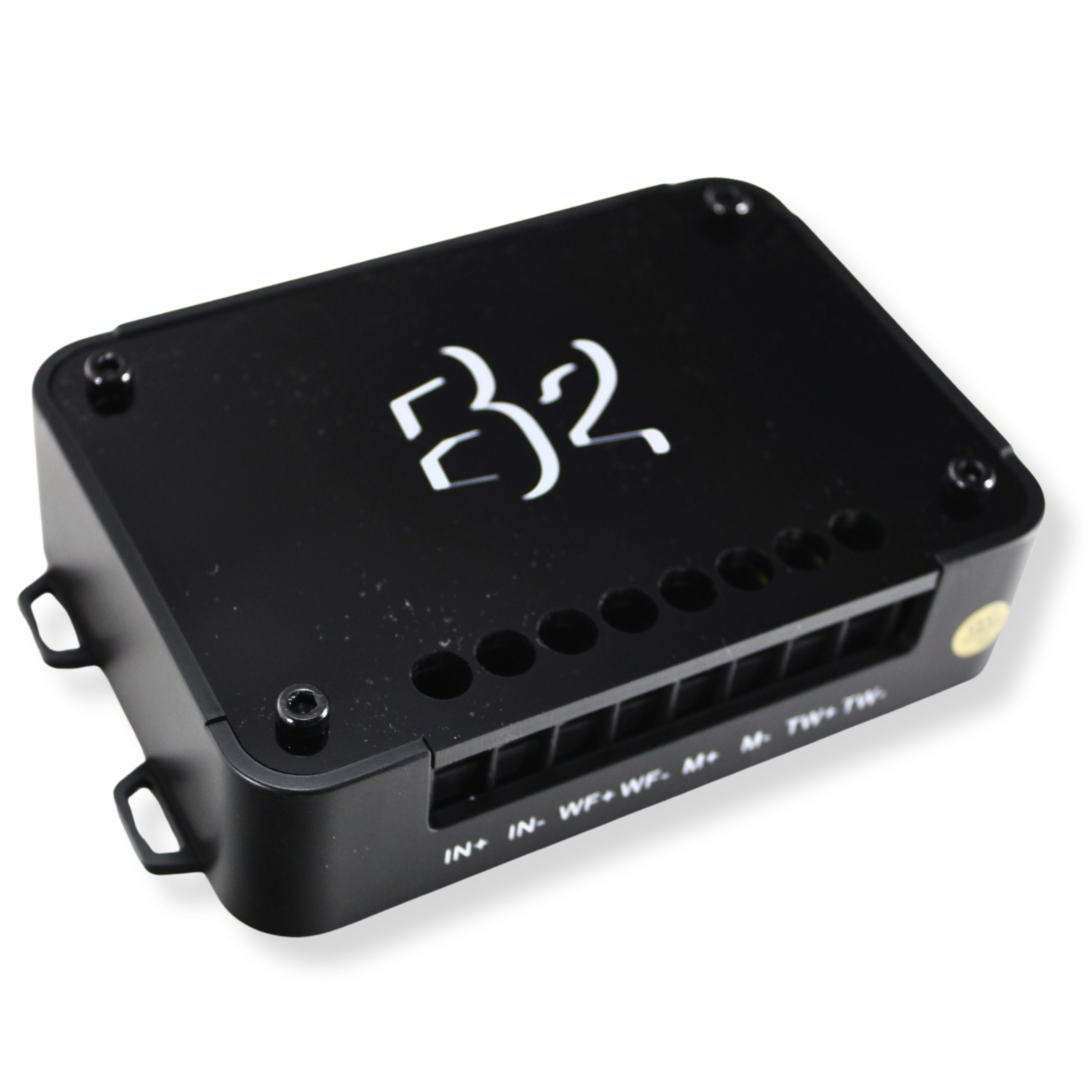

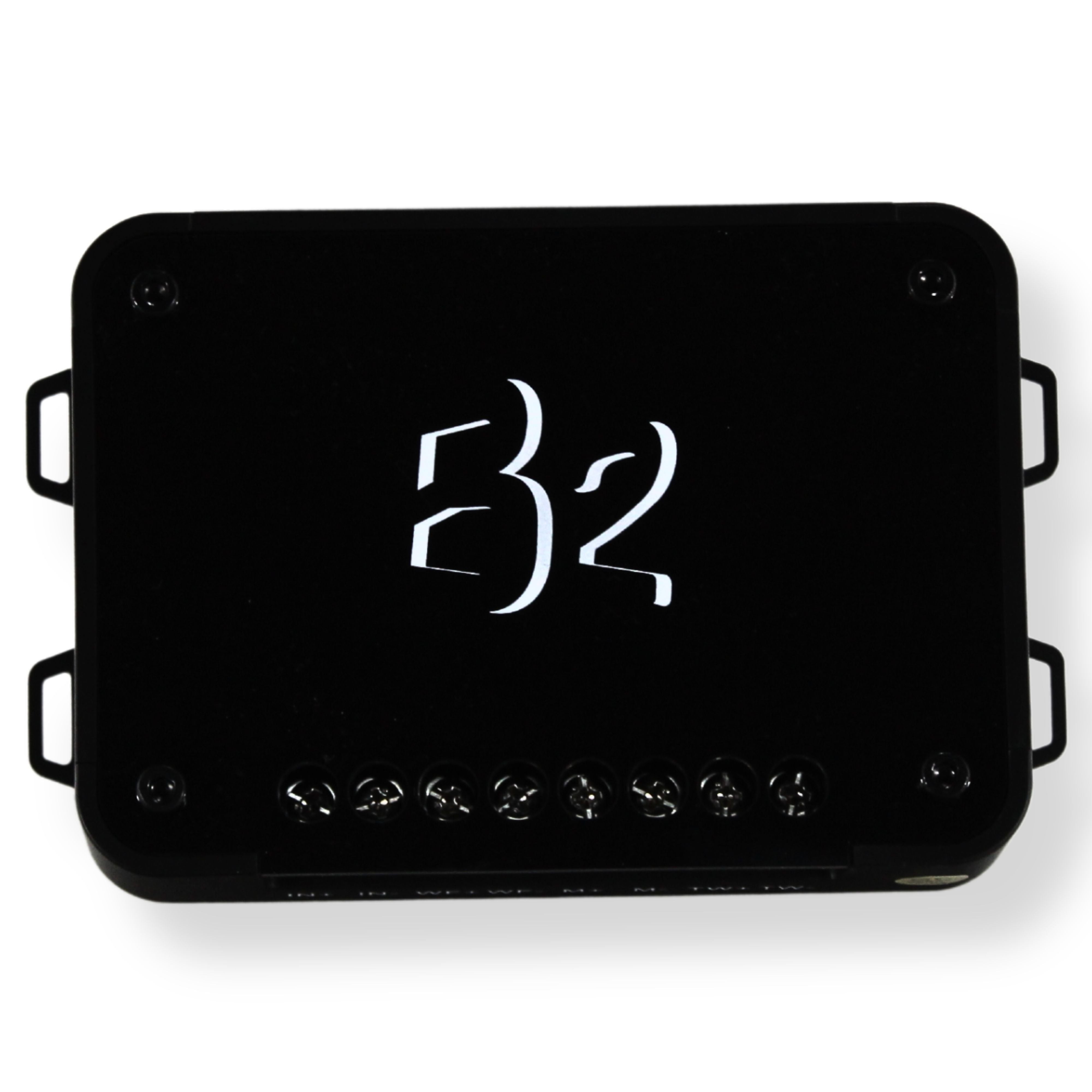

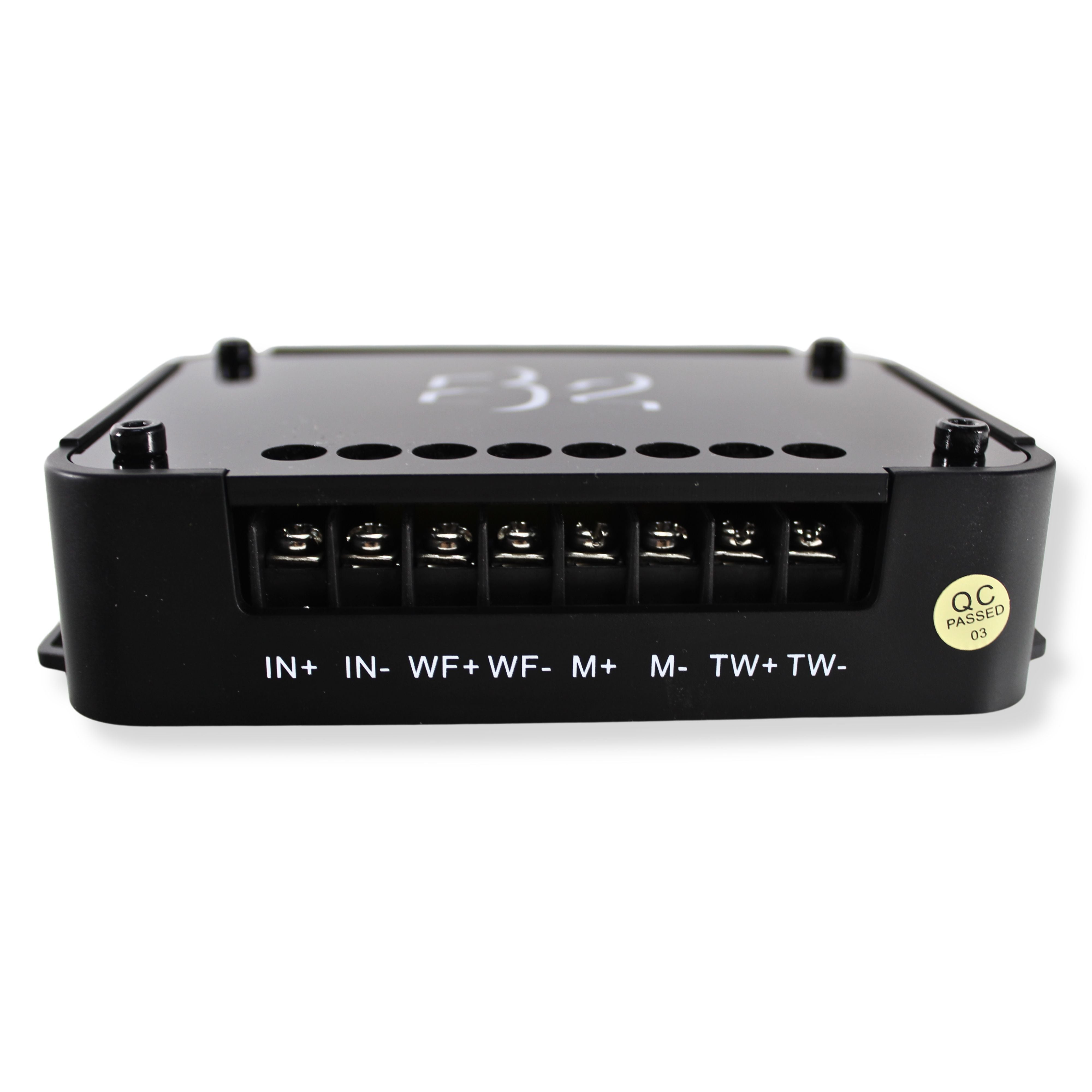

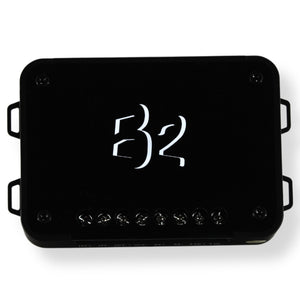

  • (2) 3-Way Crossovers




Get ready to unleash pure audio aggression with the B2 Audio RAGE 3" Coated Paper Cone Midrange Speakers. These aren't just speakers, they're the relentless warriors of midrange dominance, engineered to tear through the mundane and elevate your audio experience to new heights on the road. With an astounding RMS power handling of 80W per speaker, they don't just reproduce sound, they command it with authority, delivering robust and dynamic performance that'll have your speakers begging for mercy. Equipped with included 3-way crossovers, these speakers seamlessly integrate into your car audio system, ensuring precise frequency distribution for maximum impact. With a nominal impedance of 6 Ohm, they're compatible with a wide range of setups, ready to unleash their fury with every beat.



Midrange Specifications:





  • RMS Power Handling: 80W


  • Nominal Impedance: 6 Ohm


  • Voice Coil Diameter: 1"


  • Frequency Response: 60 Hz ~ 20 KHz




Thiele & Small Parameters:





  • Free Air Resonance (Fs): 208.90 Hz


  • Resistance (Re): 5.34 ohm


  • Mechanical Factor (Qms): 6.00


  • Electrical Factor (Qes): 1.28


  • Total Factor (Qts): 1.05


  • Sound Pressure Level (SPL): 83.7 dB




Measurements:





  • Overall Diameter: 3.38" / 86mm


  • Mounting Diameter: 3.17" / 80mm


  • Front Mount Baffle Cutout: 2.52" / 64mm


  • Overall Depth: 1.58" / 40.3mm


  • Mounting Depth: 1.14" / 29mm


  • Sold as: (Pair)
