B2 Audio RAGE 4 Channel 1.2k Amp W/ 1 RIOT8P Set + RAGE T1 NEO Tweeters COMBO-14
B2 Audio RAGE 4 Channel 1.2k Amp W/ 1 RIOT8P Set + RAGE T1 NEO Tweeters COMBO-14
SKU:B2-COMBO-14
CASE QUANTITY: N/A
PACKAGE WEIGHT: 17.65 LB
This product includes a free CPS 2 Year Extended Warranty card that will be shipped with your order. You will need to follow the information on the card to register your warranty for this product.
Share
- Powerful Amplification: 1200W 4-channel amplifier delivers exceptional sound performance.
- Dynamic Sound Enhancement: RIOT8P speakers and RAGE T1 NEO tweeters offer rich, detailed audio.
- Versatile Configuration: Perfect for car audio enthusiasts seeking high-quality sound components.
- Hi-EF Class D Technology: Ensures efficient power usage and distortion-free sound output.
- Complete Audio Combo: Includes speakers, tweeters, and amplifier for a comprehensive setup.
B2 Audio RAGE 4 Channel 1.2k Amp W/ 1 RIOT8P Set + RAGE T1 NEO Tweeters COMBO-14

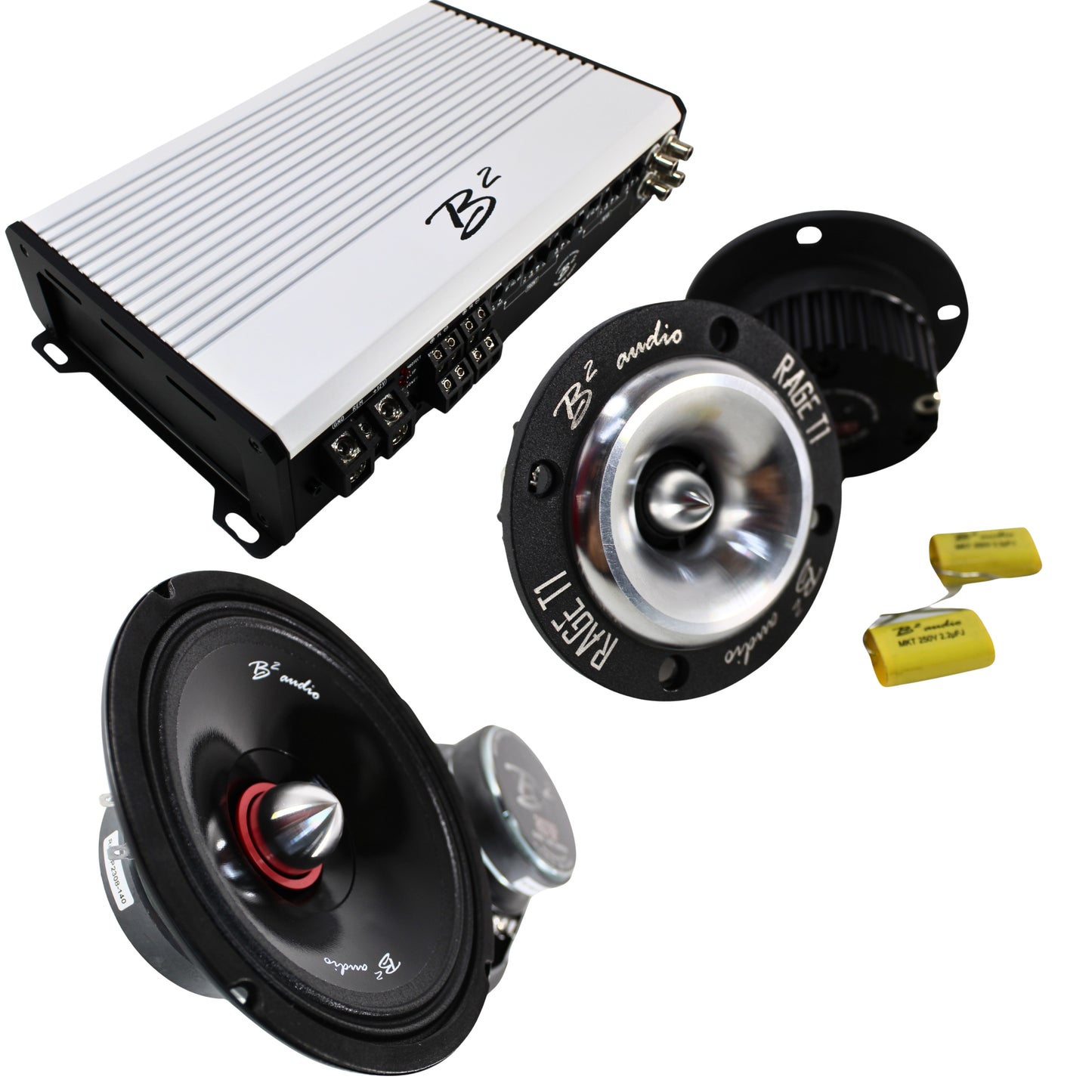

This Listing Includes:
- (2) Rage Series 4 Ohm 100W RMS Bullet Tweeters
- (2) 8" 4-Ohm 150W Speakers B2-RIOT8P
- (1) 1200 Watt 4-Channel 4-Ohm Amplifier
Upgrade your car audio system with the B2 Audio RAGE 4-Channel 1.2k Amplifier, paired with RIOT8P speakers and RAGE T1 NEO tweeters. This combo provides powerful amplification, with the 1200W 4-channel amplifier delivering exceptional sound performance. HI-EF Class D technology ensures efficient power usage and distortion-free sound output across the frequency spectrum. The RIOT8P speakers feature 150W RMS power handling and 4-Ohm impedance, producing rich, detailed mid-range frequencies. Complementing them are the RAGE T1 NEO tweeters, boasting 100W RMS power handling and 4-Ohm impedance, delivering crisp highs with their titanium diaphragm. Whether you're pushing the limits of car audio or aiming for superior sound quality, this combo offers versatility and strength. With rugged build quality and advanced protection measures, your investment is safeguarded against thermal overload and short circuits. Elevate your car audio experience with the B2 Audio RAGE combo and immerse yourself in superior sound quality.
Amplifier Specifications:
- RMS Power @ 4 ohm: 4 x 200 W
- RMS Power @ 2 ohm: 4 x 300 W
- RMS Power @ 1 ohm: N/A / 2 x 600 W (Bridged @ 4-Ohm)
- Circuit Configuration: HI-EF CLASS D
- Frequency Response: 10 Hz - 24 KHz (+/- 3dB)
- Signal to Noise Ratio: > 90 dB
- Input Sensitivity: 6 V - 0.2 V
- Crossover Circuit: 12 dB / OCT
- Low Pass Crossover: 50 Hz - 5 KHz
- High Pass Crossover: 20 Hz - 4 KHz
- Damping Factor: > 200
- Power Terminal Guage: 0 AWG
- Fuse Rating: 100 A
Mid Range Specifications:
- RMS Power Handling: 150 Watts
- Maximum Power Handling: 300 Watts
- Nominal Impedance: 4-Ohm
- Voice Coil Diameter: 1.5" / 38.6 mm
- Magnet Weight: 23 oz
- Frequency Response: 80 - 10000 Hz
- Sensitivity: 97 dB
- Nominal Chassis Diameter: 8" / 205 mm
- Resonance (natural) Frequency: 93 Hz
- Voice Coil Material: KCCAW
Tweeter Specifications:
- RMS Power Handling: 100W
- Max Power Handling: 200W
- Nominal Impedance: 4 Ohm
- Voice Coil Diameter: 1" / 25.4mm
- Frequency Response: 3 KHz ~ 20 KHz
- Sensitivity: 106 dB
- Diaphragm Type: Titanium
