B2 Audio RAGE 4 Channel 1.2k Amp W/ 2 RIOT6P Sets + RAGE H1 NEO Tweeters

• Unleash the Rage: Experience explosive, crystal-clear sound with the B2 Audio Rage Series, featuring the powerful B2 Audio Rage 6.5" Mid-Range Speakers paired with the adrenaline-fueled performance of the RAGE-H1-NEO Bullet Tweeters.
• Brutal Efficiency: The B2 Audio Rage 6.5" speakers deliver brutal efficiency with 120W RMS power and thunderous maximum power handling of 250W, ensuring every detail is heard at deafening volumes.
• Sharp, Balanced Sound: Revamped RAGE-H1-NEO Bullet Tweeters provide sharper, more balanced sound reproduction across a wider frequency range for an immersive audio experience.
• Advanced Amplification: Powered by the B2 Audio RAGE Series 1200 Watt 4 Channel Hi-EF Class D Amplifier, delivering explosive sound with advanced protection measures and unparalleled versatility.
• Complete Package: Includes amplifier, tweeters, capacitors, and mid-range speakers for a comprehensive audio upgrade.

B2 Audio RAGE 4 Channel 1.2k Amp W/ 2 RIOT6P Sets + RAGE H1 NEO Tweeters

This Listing Includes:

• (1) 1.2k 4 Channel 2 Ohm RAGE Amplifier



• (4) Rage Series 4 Ohm 100W RMS H1-NEO Tweeters

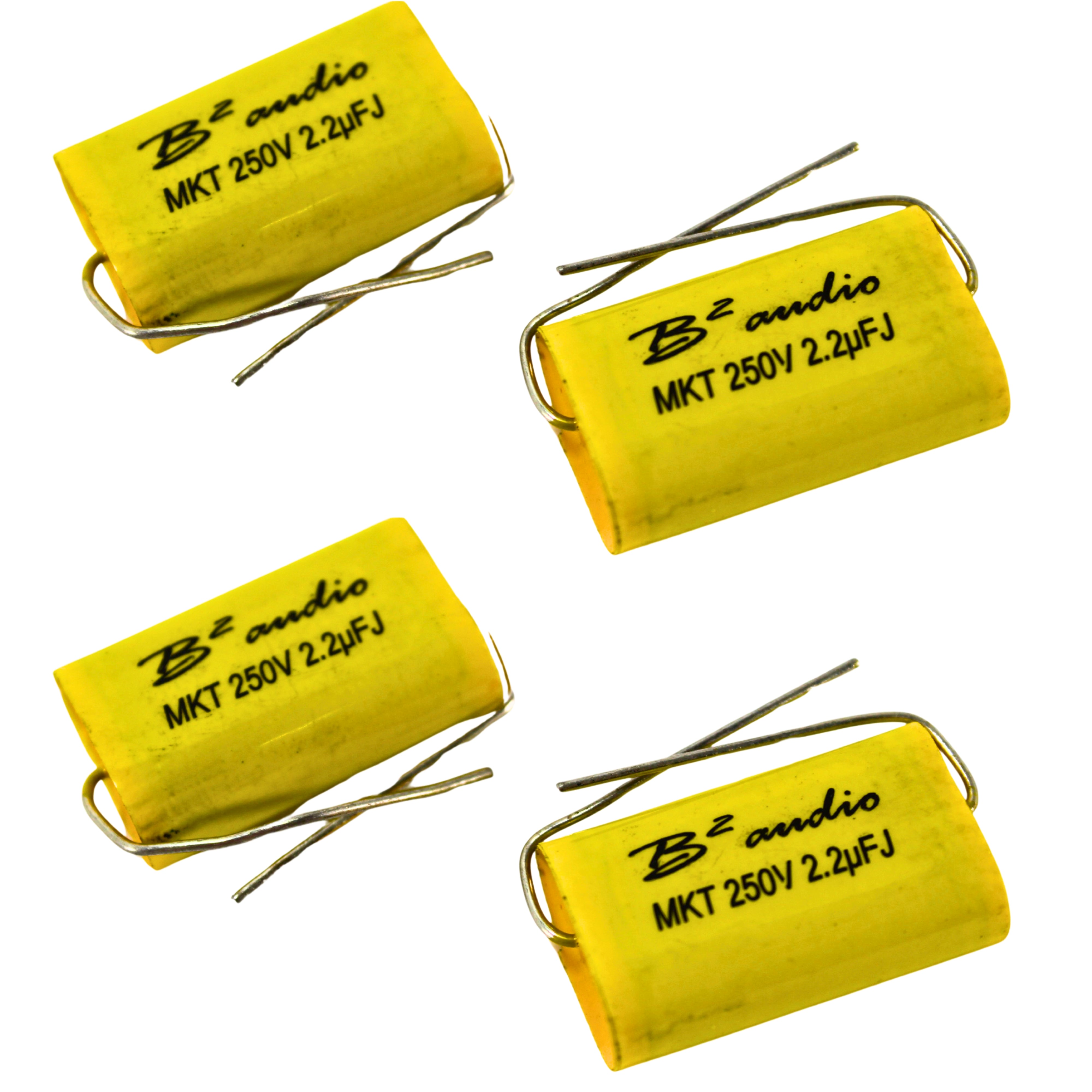

• (4) MKT 250V 2.2uFJ Capacitors



• (4) B2 Audio Rage 6.5" Speaker Pair RAGE6P

Unleash the rage with the B2 Audio Rage Series, featuring the B2 Audio Rage 6.5" 4-Ohm 120W RMS Mid-Range Speaker B2-RAGE6P, engineered for brutal efficiency with a powerful 120W RMS and thunderous maximum power handling of 250W. Precision-built for immersive audio, it boasts a 1.5" voice coil, 30 oz magnet, and a frequency response range of 90 - 6000 Hz, ensuring every detail is heard at deafening volumes with a sensitivity of 95.7 dB. Paired with the adrenaline-fueled performance of the B2 Audio Rage Series RAGE-H1-NEO Bullet Tweeters, revamped for sharper, more balanced sound reproduction across a wider frequency range, and powered by the B2 Audio RAGE Series 1200 Watt 4 Channel Hi-EF Class D Amplifier RAGE-1200.4-V2, delivering explosive, crystal-clear sound with advanced protection measures and unparalleled versatility. Elevate your sound experience, feel the power, and embrace the rage!

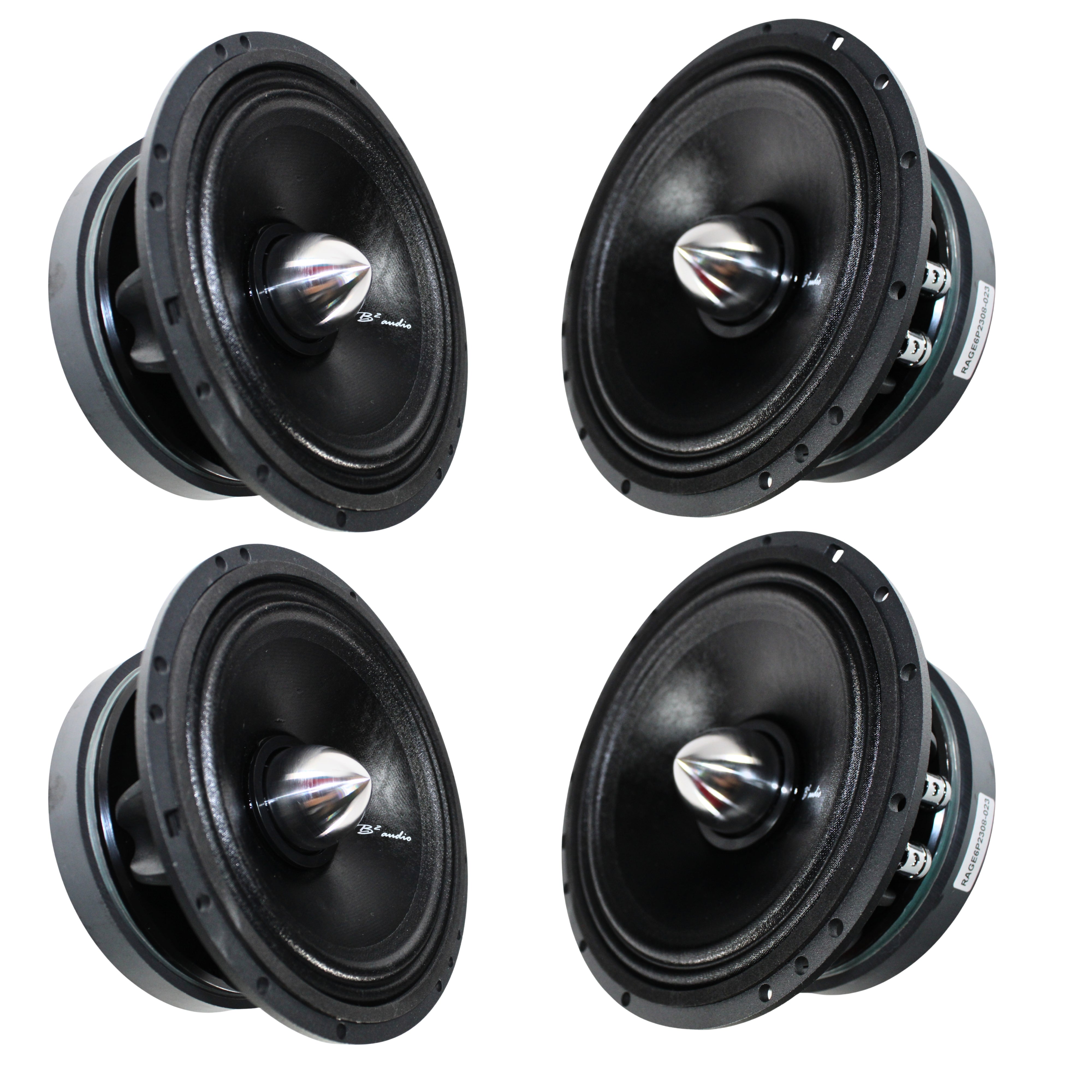

Midrange Specifications:

• RMS Power Handling: 120W



• Maximum Power Handling: 250W



• Nominal Impedance: 4-Ohm



• Voice Coil Diameter: 1.5" (38.6 mm)



• Magnet Weight: 30 Oz



• Frequency Response: 90  6000 Hz



• Sensitivity: 95.7 dB



• Nominal Chassis Diameter: 6.5" (165 mm)



• Resonance Frequency: 94 Hz



• Voice Coil Material: CCAR

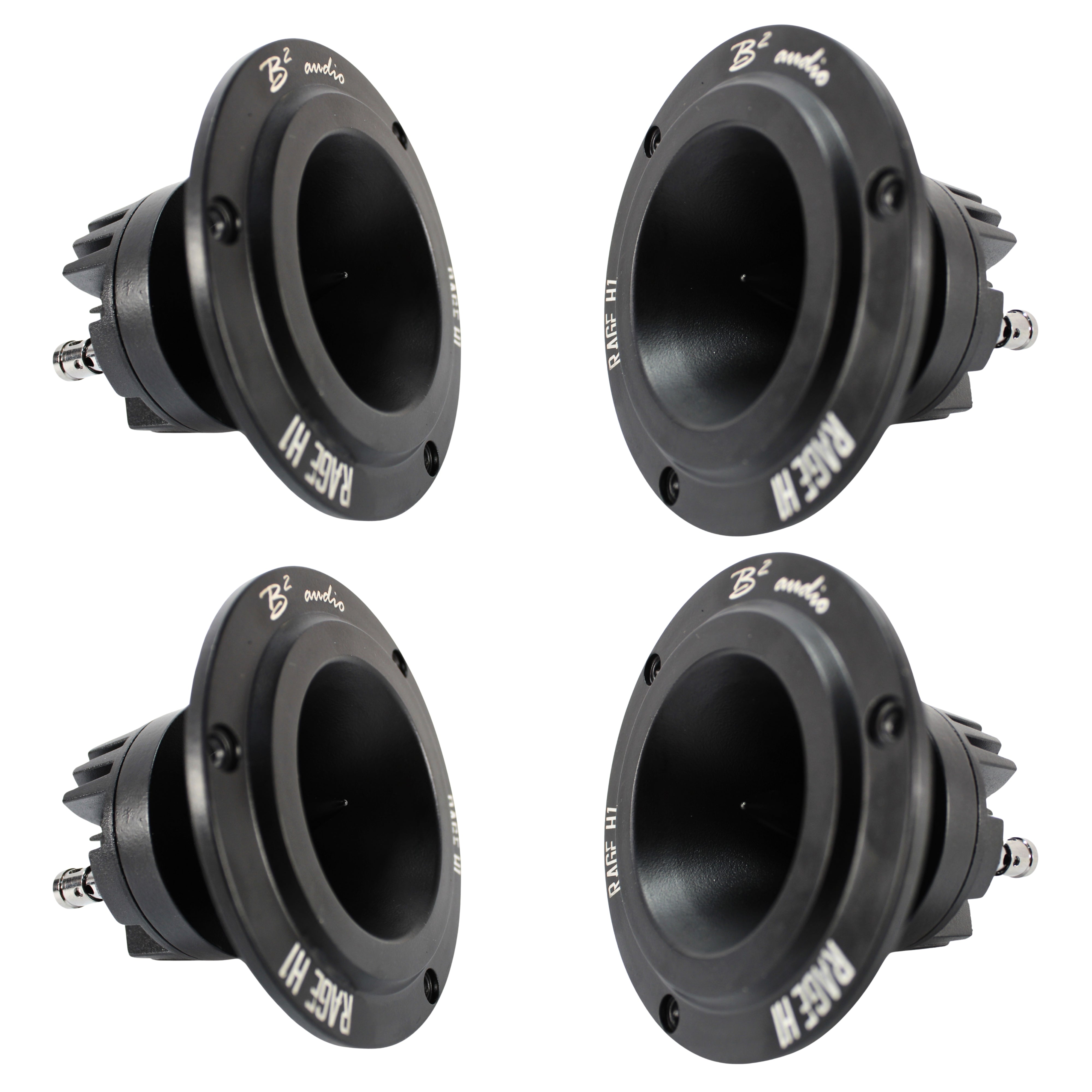

Tweeter Specifications:

• RMS Power Handling: 100 Watts



• Max Power Handling: 200 Watts



• Nominal Impedance: 4-Ohm



• Voice Coil Diameter: 1" / 25.4 mm



• Magnet: Neodymium



• Frequency Response: 2 KHz - 20 Khz



• Sensitivity: 104 dB



• Throat Diameter: 2.3 " / 59 mm



• Winding Material: CCAW



• Diaphragm Type: Titanium

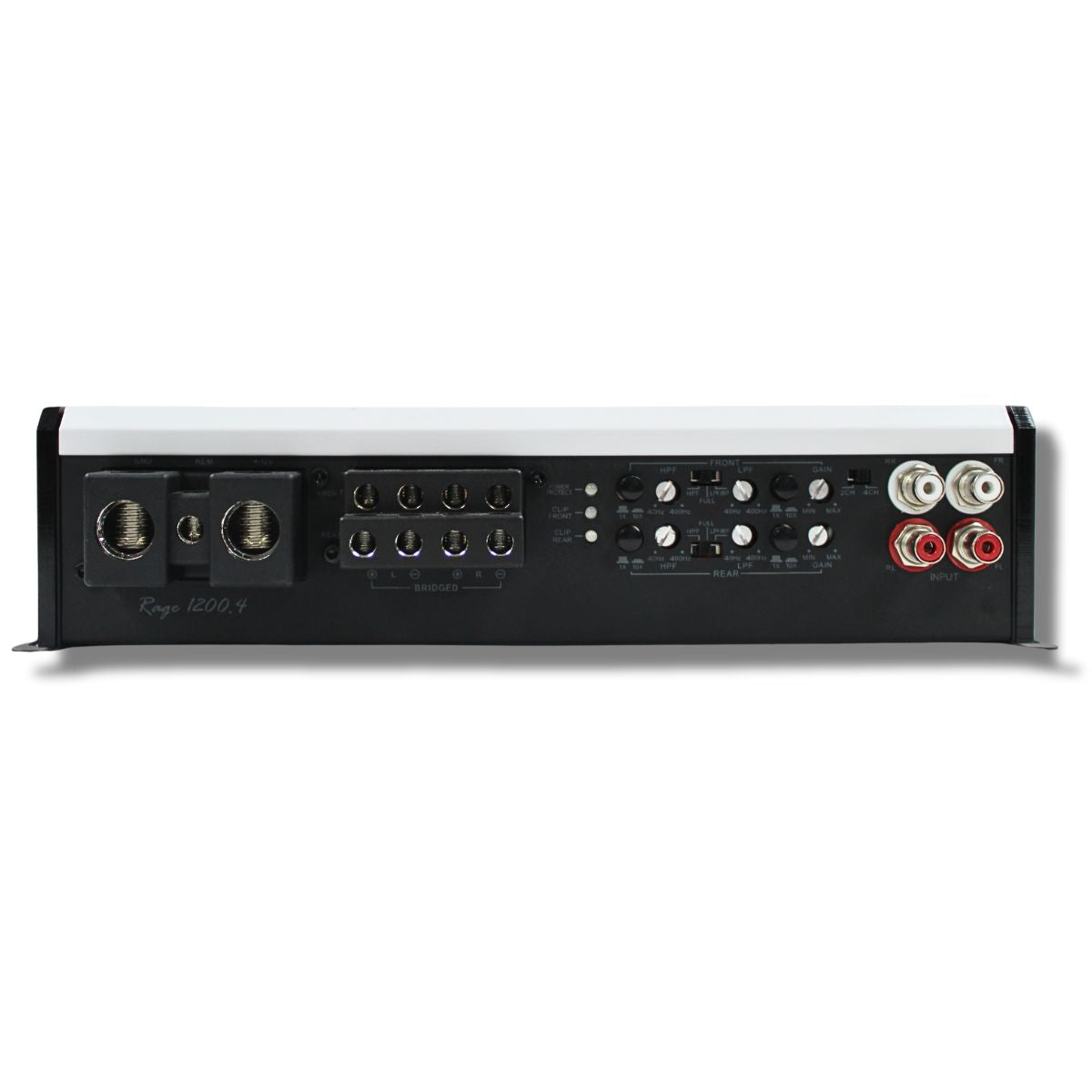

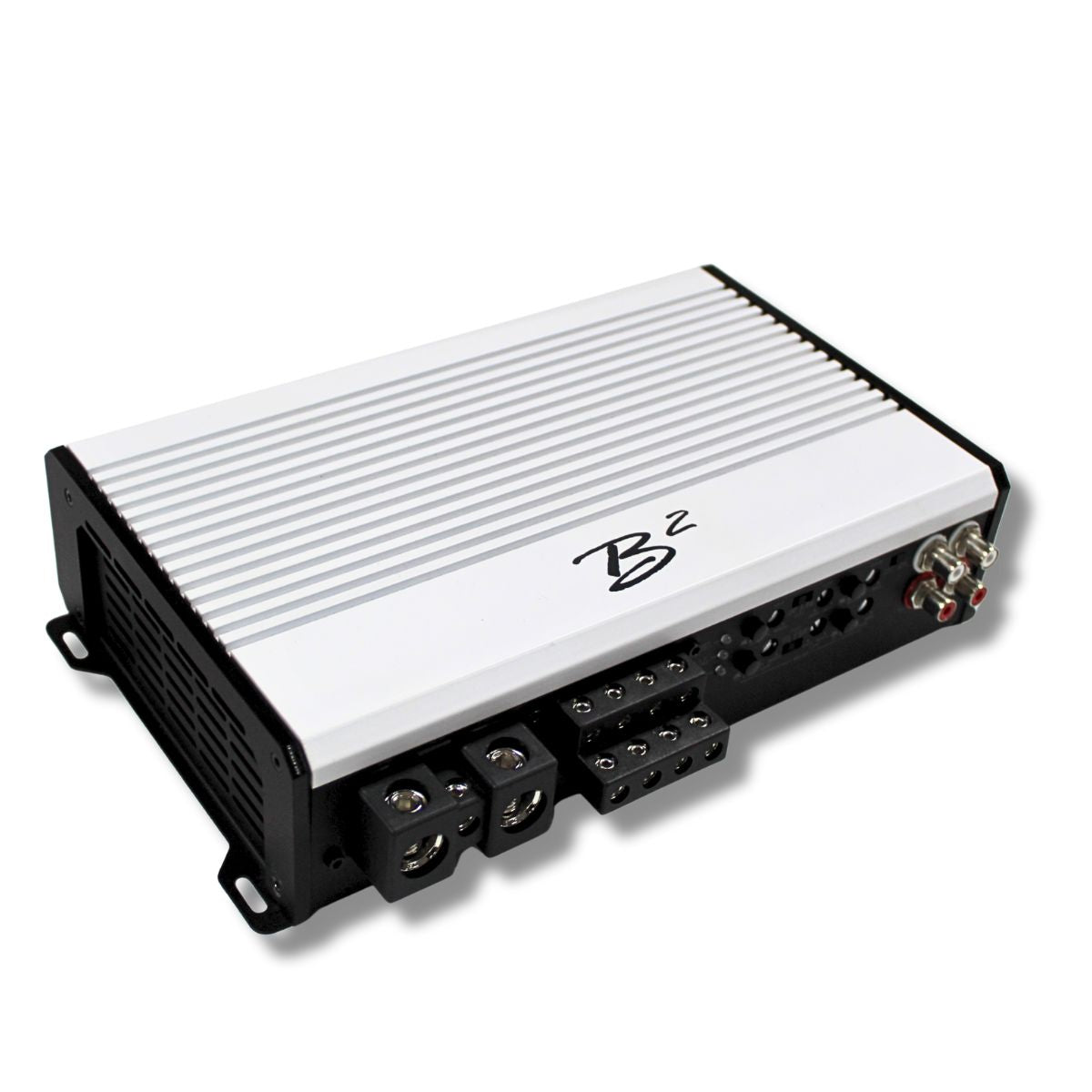

Amplifier Specifications:

• RMS Power @ 4 ohm: 4 x 200 W



• RMS Power @ 2 ohm: 4 x 300 W



• RMS Power @ 1 ohm: N/A / 2 x 600 W (Bridged @ 4-Ohm)



• Circuit Configuration: HI-EF CLASS D



• Frequency Response: 10 Hz - 24 KHz (+/- 3dB)



• Signal to Noise Ratio: > 90 dB



• Input Sensitivity: 6 V - 0.2 V



• Crossover Circuit: 12 dB / OCT



• Low Pass Crossover: 50 Hz - 5 KHz



• High Pass Crossover: 20 Hz - 4 KHz



• Damping Factor: > 200



• Power Terminal Guage: 0 AWG



• Fuse Rating: 100 A
