B2 Audio RAGE 4 Channel 1.2k Amp W/ 2 RIOT8P Sets + RAGE T1 NEO Tweeters
B2 Audio RAGE 4 Channel 1.2k Amp W/ 2 RIOT8P Sets + RAGE T1 NEO Tweeters
SKU:B2-COMBO-2
CASE QUANTITY: N/A
PACKAGE WEIGHT: 17.65 LB
This product includes a free CPS 2 Year Extended Warranty card that will be shipped with your order. You will need to follow the information on the card to register your warranty for this product.
Share
- Sonic Revolution: Prepare for a sonic revolution with the B2 Audio RAGE Series 1200 Watt 4 Channel Hi-EF Class D Amplifier, delivering raw power across four channels for an intense audio experience.
- Crystal-Clear Sound: Hi-EF Class D technology maximizes efficiency while ensuring crystal-clear sound reproduction, transforming your audio into an adrenaline-pumping experience.
- Unmatched Performers: Pair with B2 Audio Rage Series RAGE-T1-NEO Bullet Tweeters for balanced sound reproduction and B2 Audio RIOT 8" Mid-Range Speakers for blistering mid-range frequencies.
- Durable Construction: Built for durability and protection, this combo is ready to handle any challenge, ensuring long-lasting performance and reliability.
- Complete Package: Includes amplifier, tweeters, capacitors, and mid-range speakers for a comprehensive audio upgrade.
B2 Audio RAGE 4 Channel 1.2k Amp W/ 2 RIOT8P Sets + RAGE T1 NEO Tweeters
This Listing Includes:

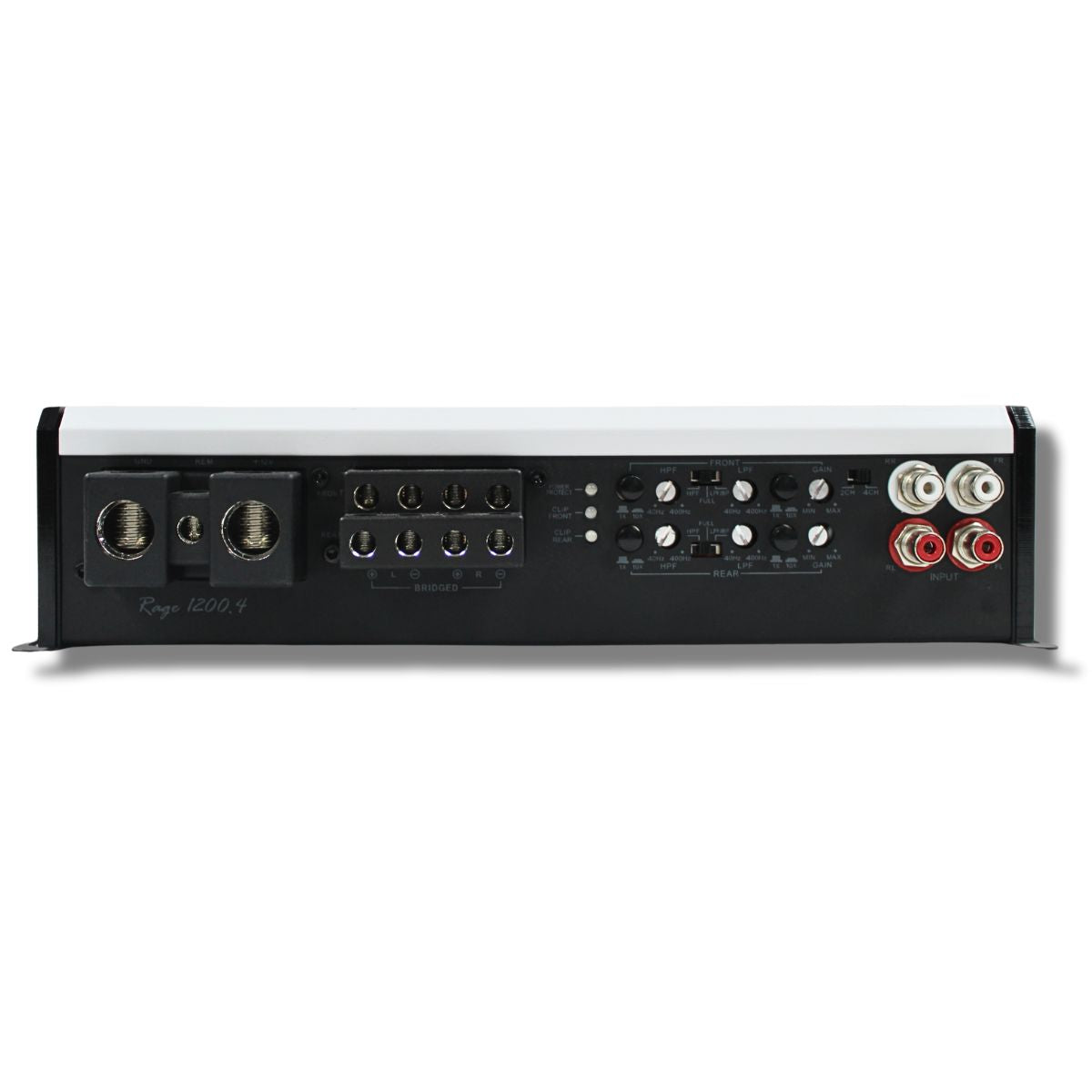

- (1) 1.2k 4 Channel 2 Ohm RAGE Amplifier

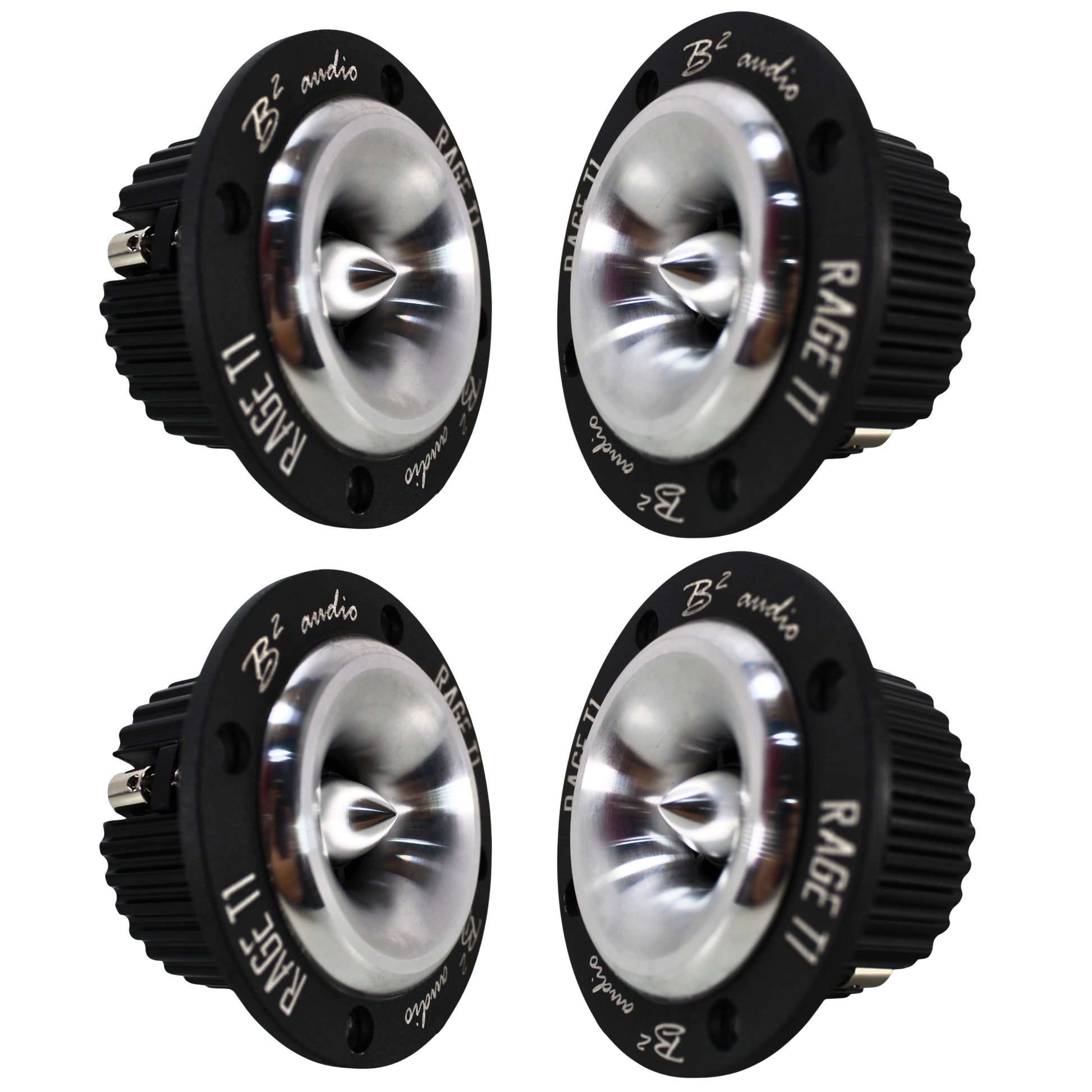

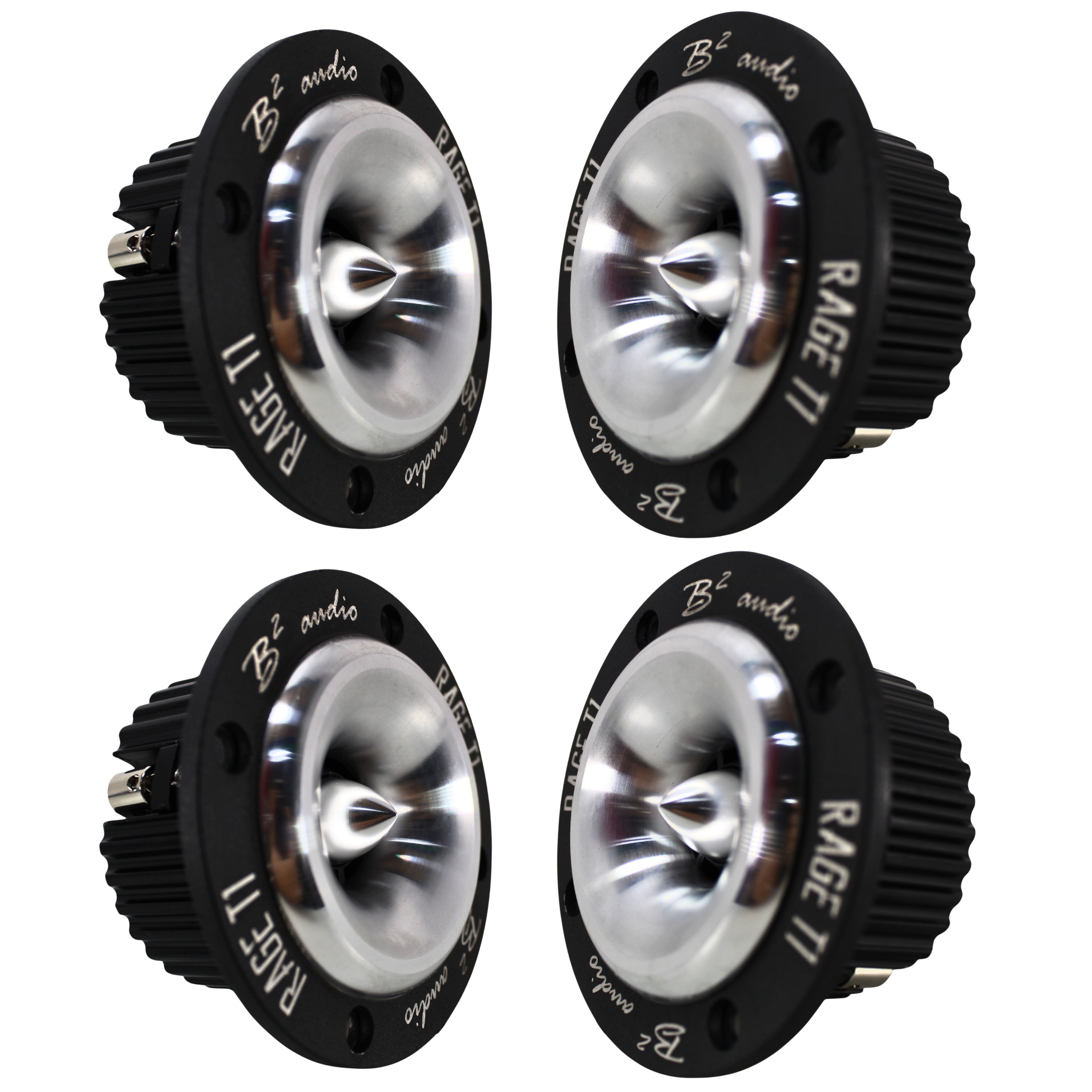

- (4) Rage Series 4 Ohm 100W RMS Bullet Tweeters

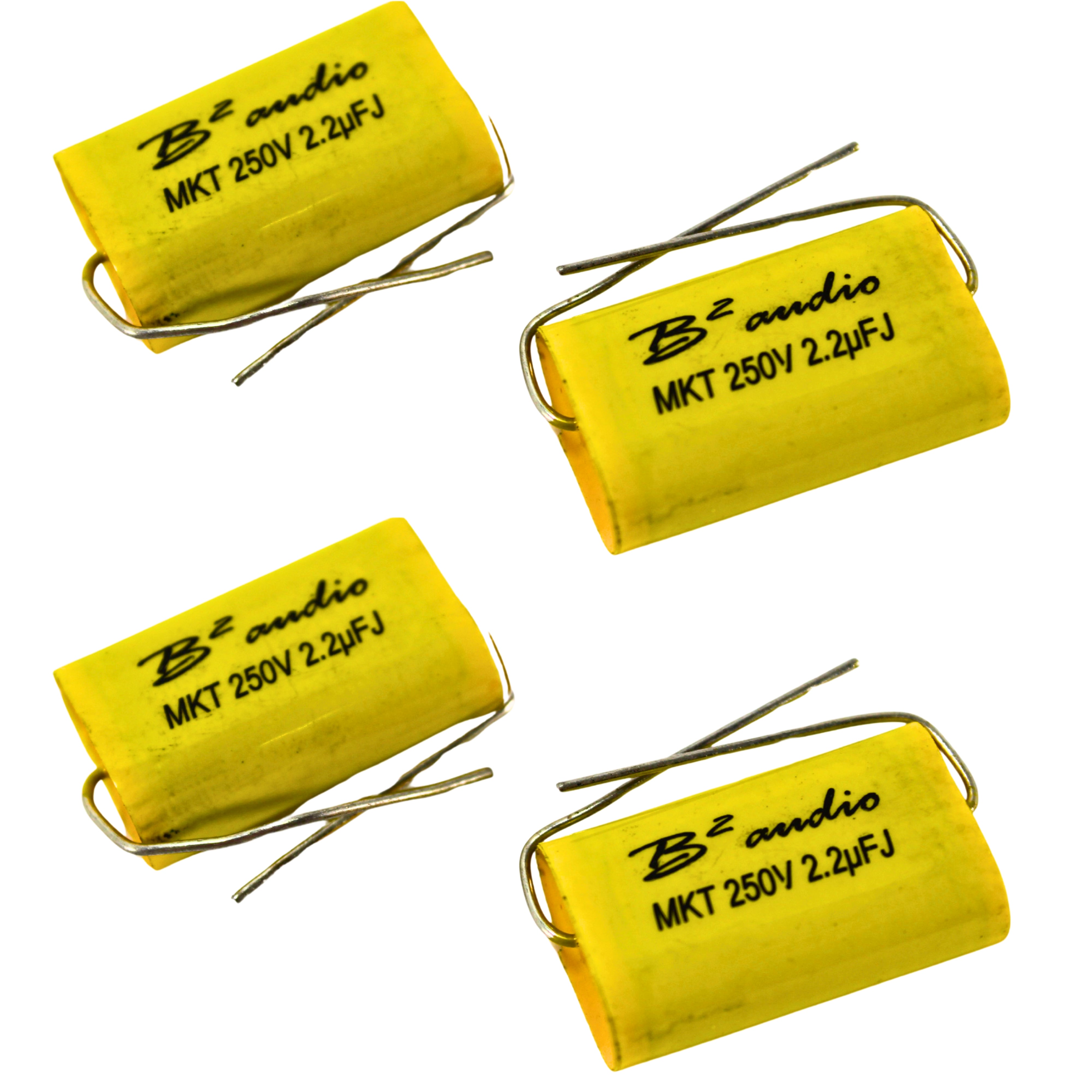

- (4) MKT 250V 2.2uFJ Capacitors

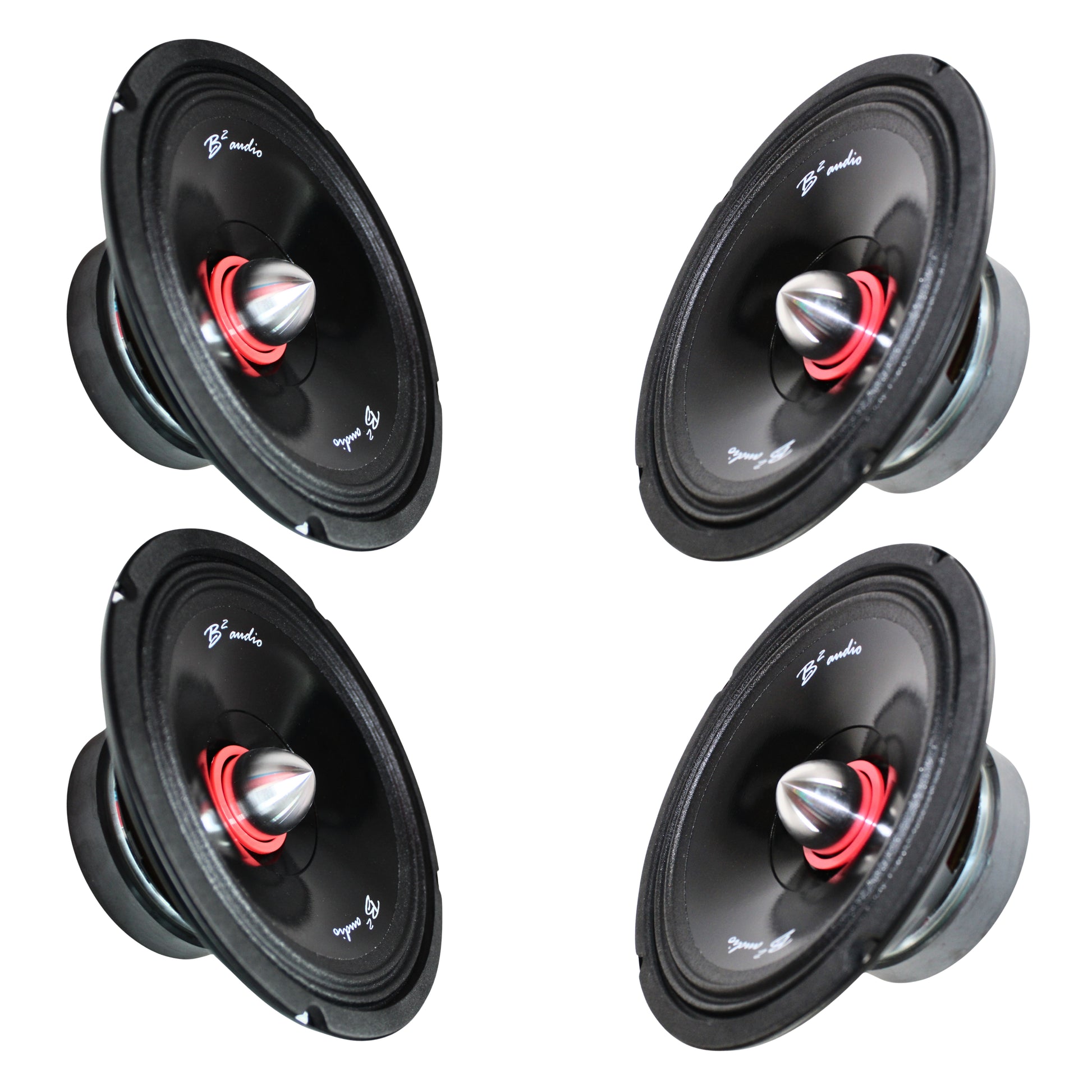

- (4) 8" 4 Ohm 150W Speakers B2-RIOT8P

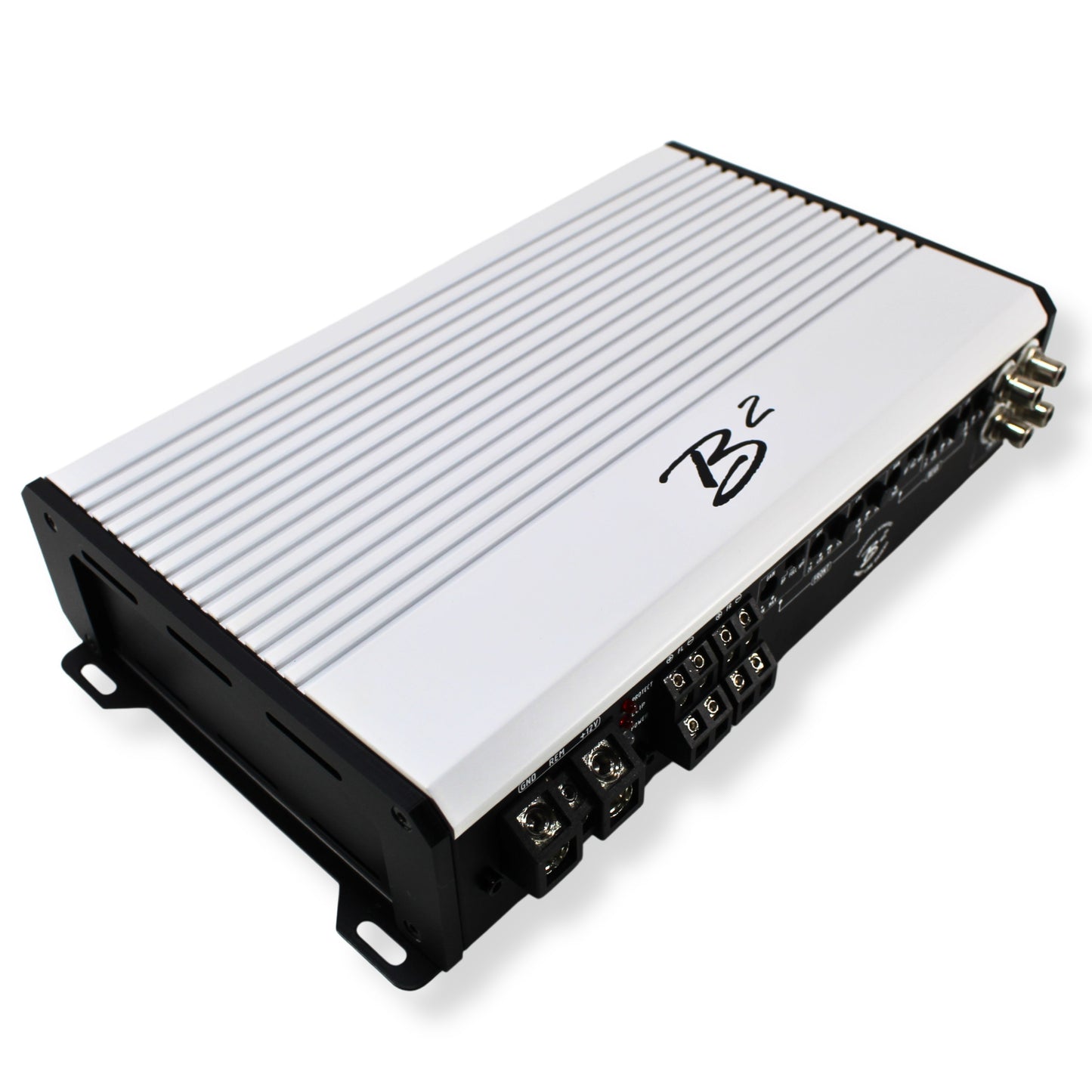

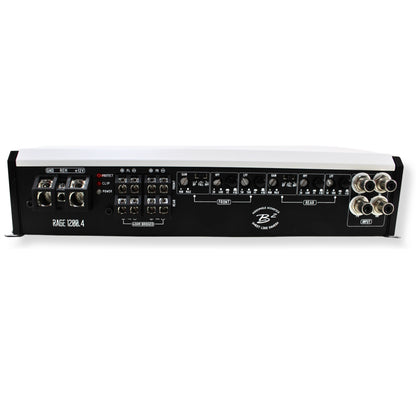

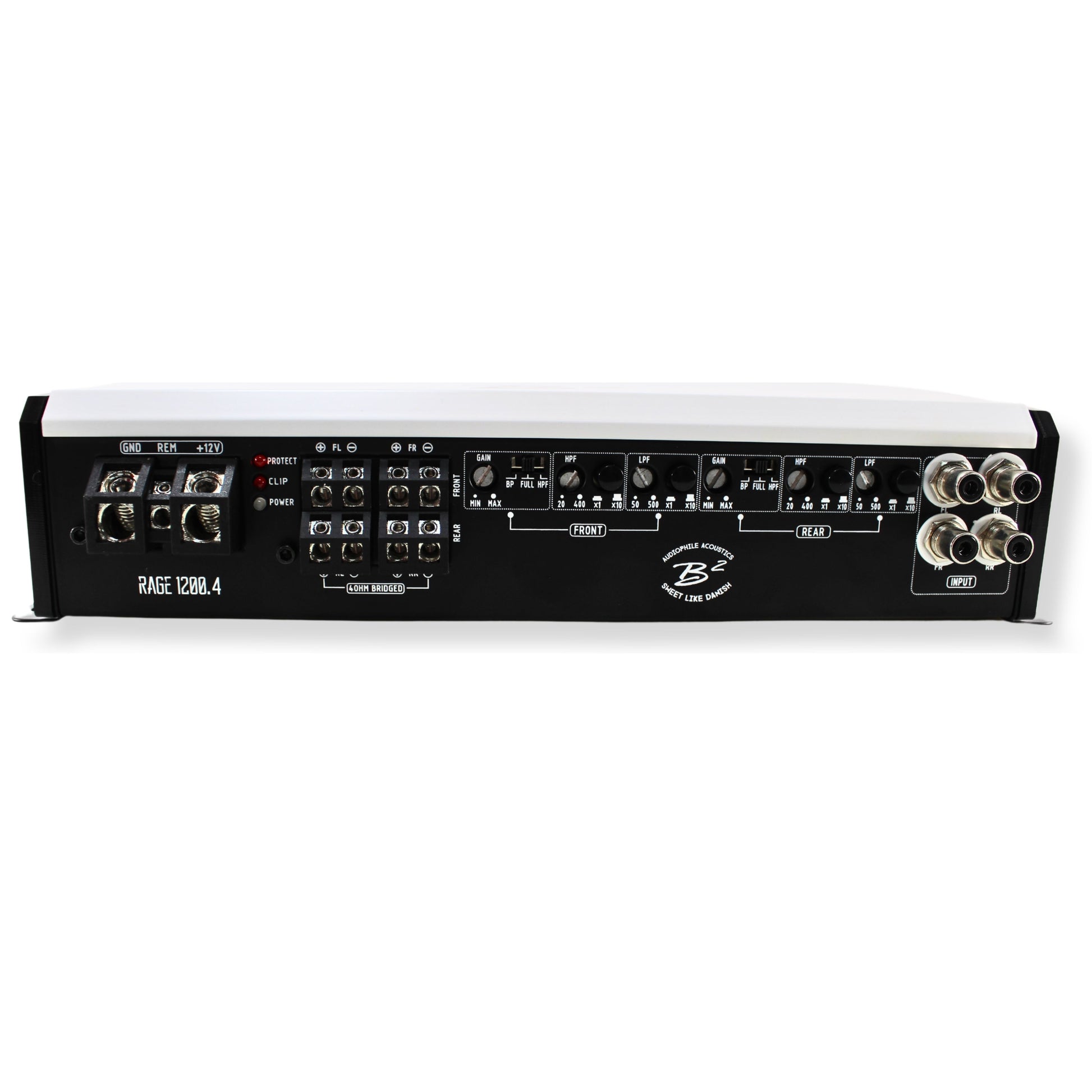

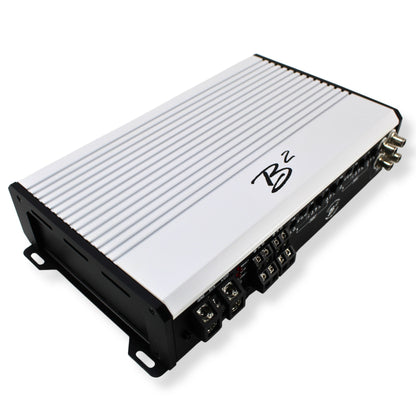

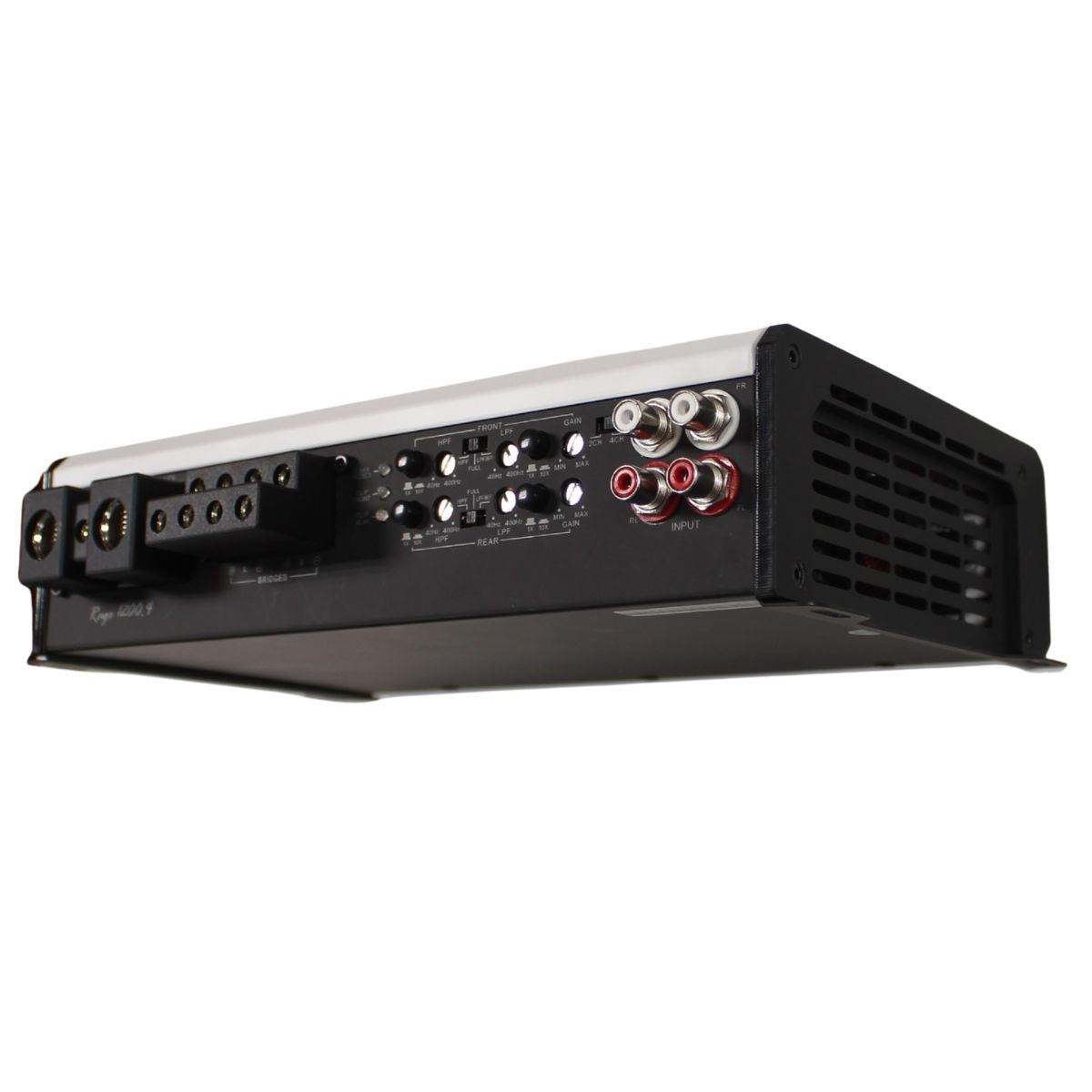

Prepare for a sonic revolution with the B2 Audio RAGE Series 1200 Watt 4 Channel Hi-EF Class D Amplifier RAGE-1200.4-V2, delivering raw power across four channels for an intense audio experience. With Hi-EF Class D technology, it maximizes efficiency while ensuring crystal-clear sound. Built for durability and protection, it's ready to handle any challenge. Pair it with the B2 Audio Rage Series RAGE-T1-NEO Bullet Tweeters for balanced sound reproduction and the B2 Audio RIOT 8" 4-Ohm 150W RMS Mid-Range Speakers RIOT8P for blistering mid-range frequencies, transforming your audio into an adrenaline-pumping experience. Elevate your sound game with these unmatched performers and embrace the rage of unstoppable audio dominance!
Midrange Specifications:
- RMS Power Handling: 150 Watts
- Maximum Power Handling: 300 Watts
- Nominal Impedance: 4-Ohm
- Voice Coil Diameter: 1.5" / 38.6 mm
- Magnet Weight: 23 oz
- Frequency Response: 80 - 10000 Hz
- Sensitivity: 97 dB
- Nominal Chassis Diameter: 8" / 205 mm
- Resonance (natural) Frequency: 93 Hz
- Voice Coil Material: KCCAW
Tweeter Specifications:
- RMS Power Handling: 100W
- Max Power Handling: 200W
- Nominal Impedance: 4 Ohm
- Voice Coil Diameter: 1" / 25.4mm
- Frequency Response: 3 KHz ~ 20 KHz
- Sensitivity: 106 dB
- Diaphragm Type: Titanium
Amplifier Specifications:
- RMS Power @ 4 ohm: 4 x 200 W
- RMS Power @ 2 ohm: 4 x 300 W
- RMS Power @ 1 ohm: N/A / 2 x 600 W (Bridged @ 4-Ohm)
- Circuit Configuration: HI-EF CLASS D
- Frequency Response: 10 Hz - 24 KHz (+/- 3dB)
- Signal to Noise Ratio: > 90 dB
- Input Sensitivity: 6 V - 0.2 V
- Crossover Circuit: 12 dB / OCT
- Low Pass Crossover: 50 Hz - 5 KHz
- High Pass Crossover: 20 Hz - 4 KHz
- Damping Factor: > 200
- Power Terminal Guage: 0 AWG
- Fuse Rating: 100 A
