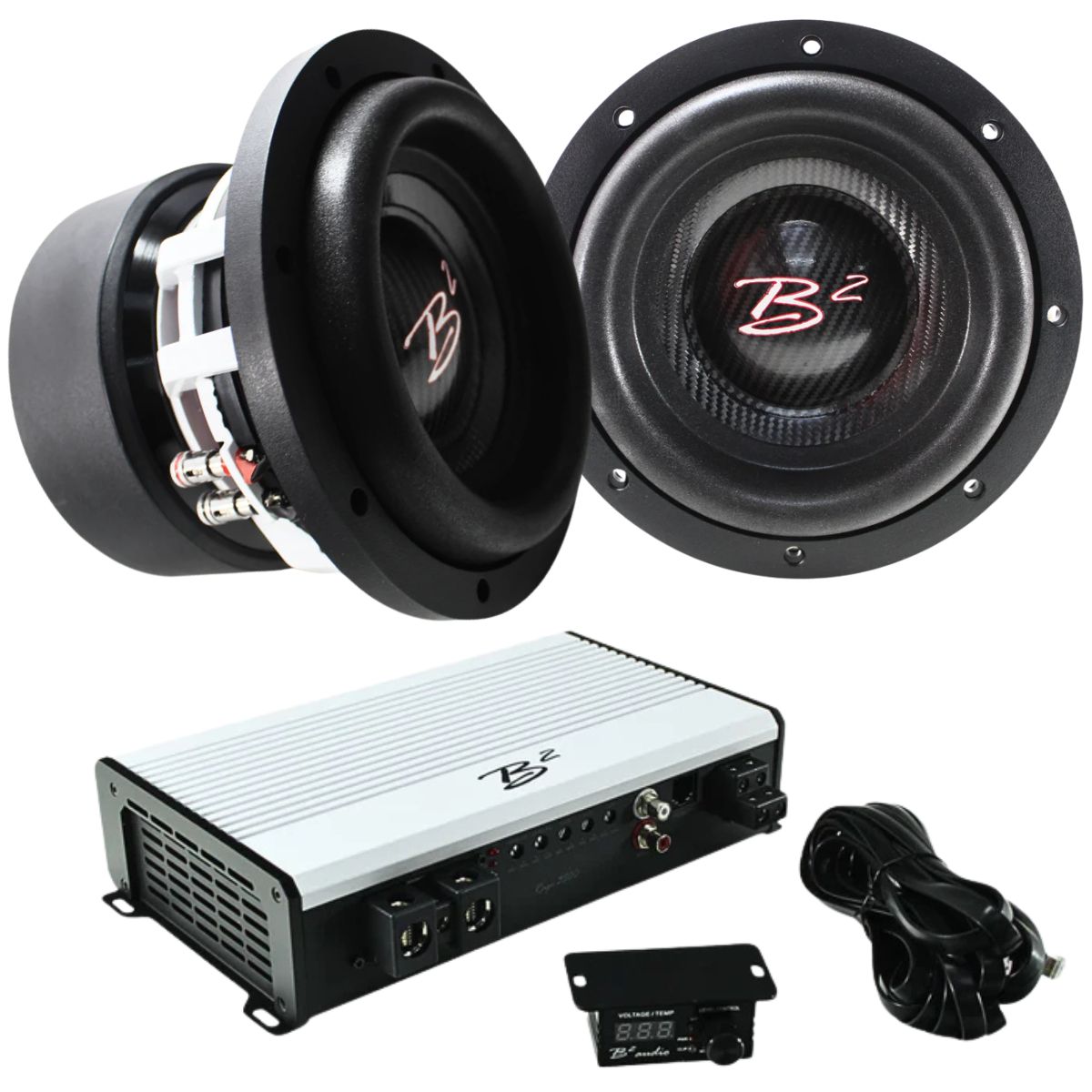

B2 Audio RAGE Monoblock 3.2k 2 Ohm Amplifier W/ 2 RAMPAGE 8" Subwoofers COMBO-10

• Extreme Power Output: Unleash a staggering 3200 watts of peak power through a 1-channel full bridge design, delivering thunderous bass and intense soundscapes.
• Class D Efficiency: Enjoy high-performance amplification with exceptional efficiency, minimizing heat and maximizing power output for a superior audio experience.
• Rugged Reliability: Built for intense use, the amplifier features advanced protection against overheating, short circuits, and other potential hazards, ensuring consistent, long-lasting performance.

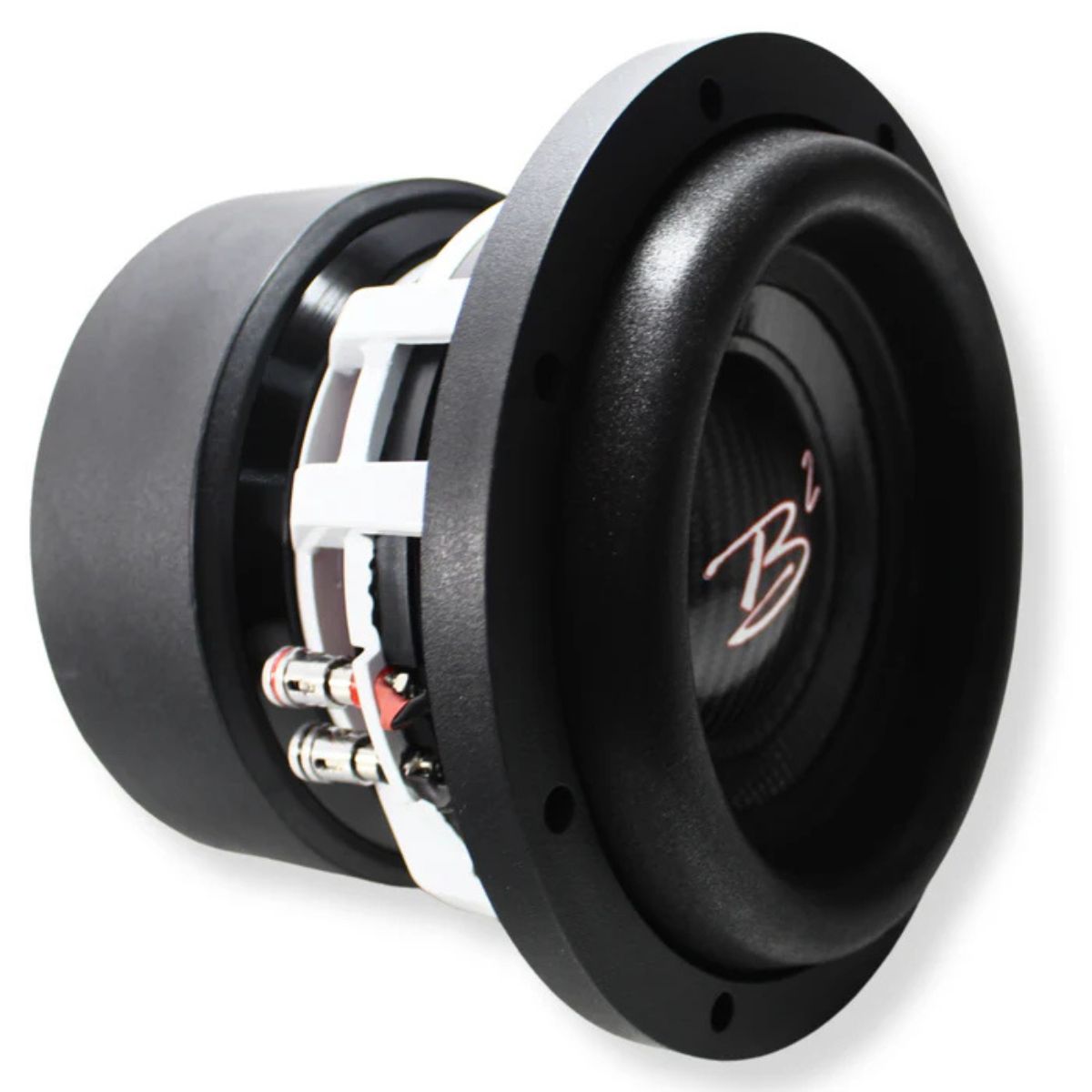

• Enhanced Subwoofer Performance: The RAGE8-D2-V2 subwoofer features a redesigned Bolted down spider and additional pole vents for increased power handling and minimized mechanical noise.

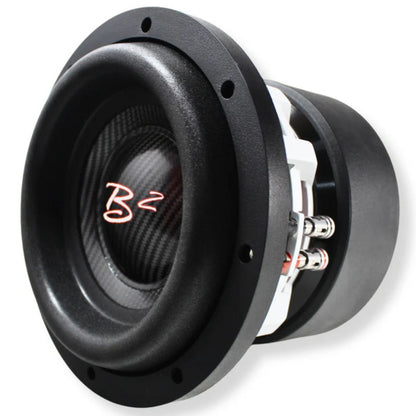

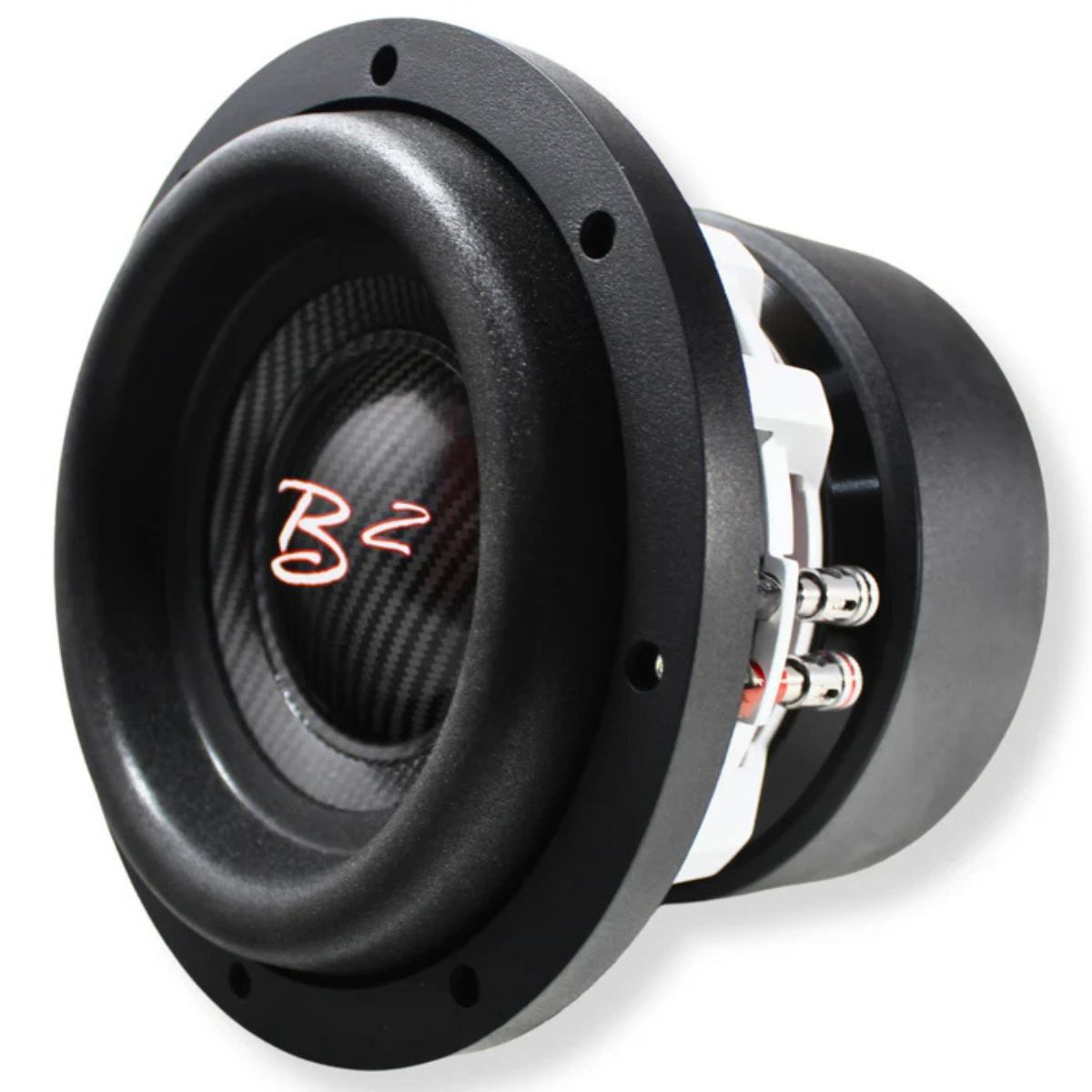

• Custom Carbon Fiber Dustcap: The new protruding logo on the carbon fiber dustcap adds rigidity and strength to the cone, ensuring stable performance even at high volumes.

B2 Audio RAGE Monoblock 3.2k 2 Ohm Amplifier W/ 2 RAGE8 D4 Subwoofers COMBO-10

This Listing Includes:

• (1)  3200 Watt 1-Ohm Monoblock Amplifier



• (2) B2 Audio RAMPAGE8-D1-V2 8" Subwoofer

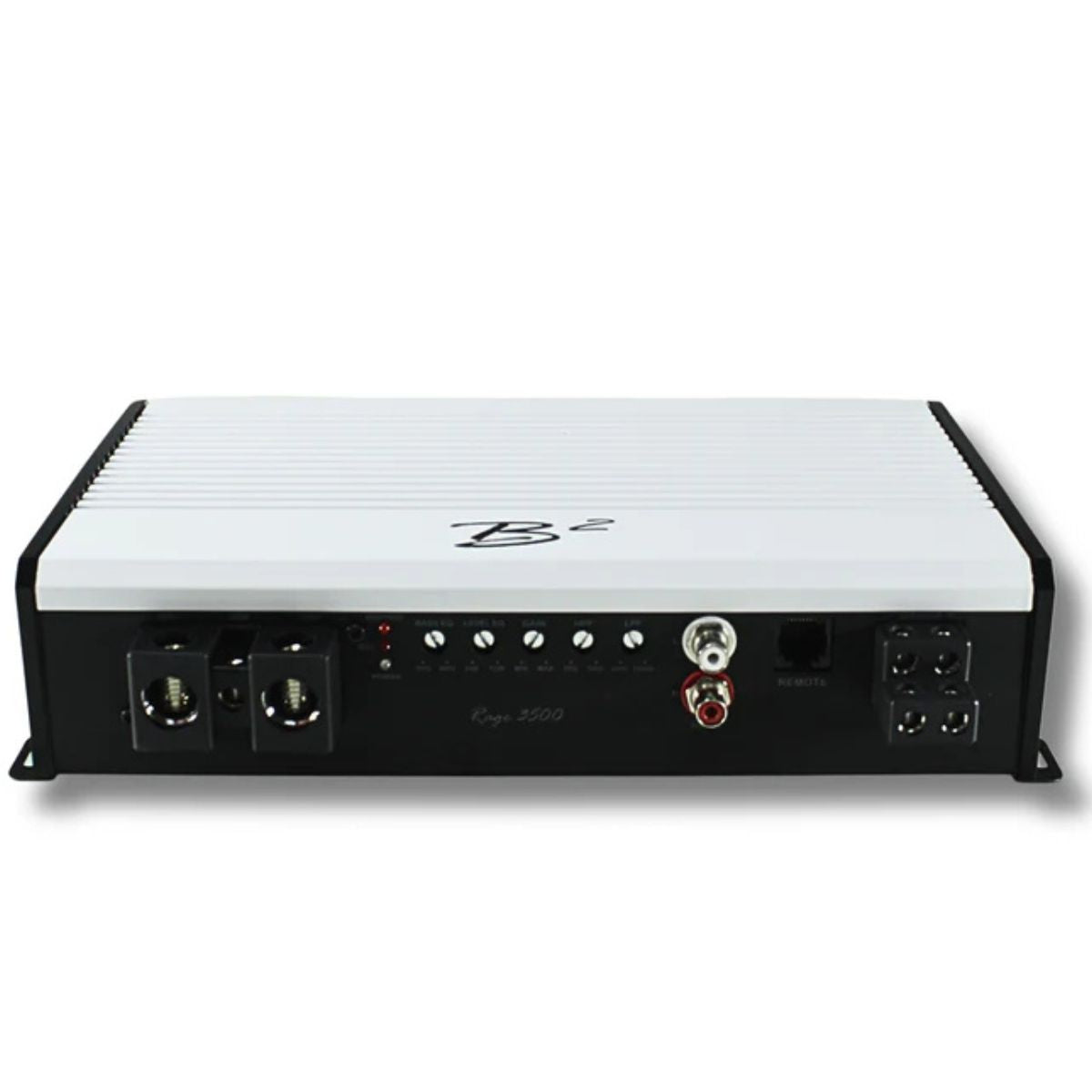

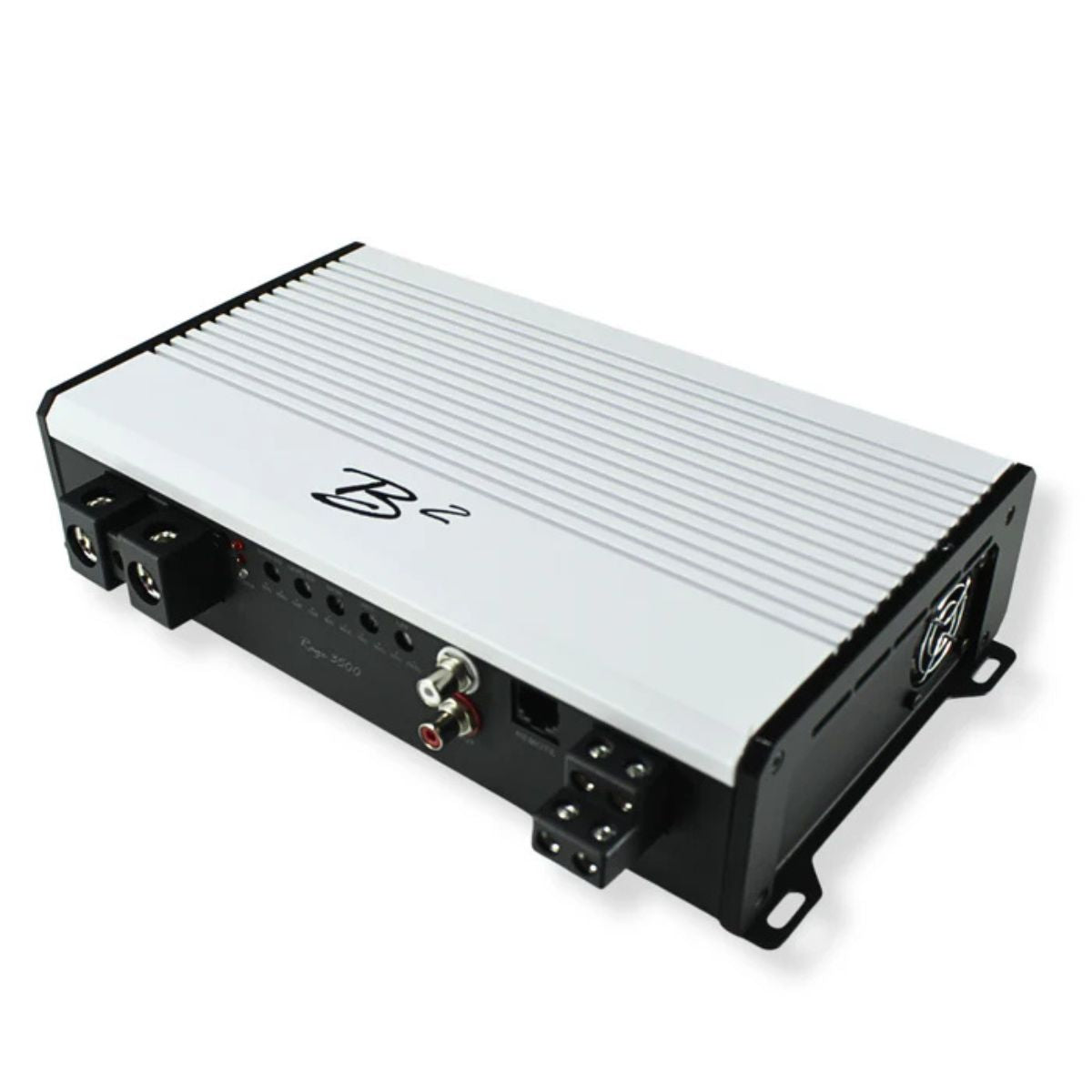

Unleash a new era of audio dominance with the B2 Audio RAGE Series 3200 Watt 1-Channel Class D Full Bridge Amplifier, engineered to redefine the limits of your sound system with 3200 watts of raw power. Its Class D full bridge design delivers explosive performance with exceptional efficiency, ensuring crystal-clear, high-fidelity sound that shakes your core. Designed for extreme flexibility and built to withstand intense use, it features advanced protection measures against overheating and short circuits. Rev up your car audio to the next level with the B2 Audio RAGE Series 8" Dual 2" Voice Coil 2-Ohm 1000W Max Subwoofer RAGE8-D2-V2. This isn't just any speaker, it's a relentless powerhouse engineered to obliterate your expectations. Designed to deliver bone-shattering clarity and gut-wrenching bass, this speaker doesn't just demand attention, it commands respect on the road. With a ferocious 1000 Watts Max power handling capability and dual 2-Ohm impedance, it's ready to dominate any audio challenge you throw its way. Featuring a 2" voice coil diameter and 12 AWG wire inputs for push terminals, it's built to withstand the most intense audio assaults. Thiele & Small specifications ensure optimized performance, while its aggressive enclosure suggestions cater to the most hardcore audio enthusiasts.

Amplifier Specifications:

• RMS Power @ 4 ohm: 1 x 1000 W (1100 W)



• RMS Power @ 2 ohm: 1 x 2000 W (2000 W)



• RMS Power @ 1 ohm: 1 x 3000 W (3200 W)



• Circuit Configuration: Hi-Ef Class D Full Bridge



• Frequency Response: 10 Hz - 24 KHz (+/- 3 DB)



• Signal to Noise Ratio: > 90 dB



• Input Sensitivity: 6 V - 0.2 V



• Crossover Circuit: 12 dB / OCT



• Low Pass Crossover: 50 Hz - 20 KHz



• High Pass Crossover: 10 Hz - 2 KHz



• Damping Factor: > 200



• Power Terminal Gauge: 4 GA



• Fuse Rating: 250 A

Specifications:

• RMS Power Handling: 500W



• Max Power handling: 1000W



• Nominal Impedance: Dual 2 Ohm



• Voice Coil Diameter: 2"



• Frequency Response: 10 Hz ~ 500 Hz



• Sensitivity: 83.8 dB



• Magnet Weight: 175 Oz



• Displacement: 2.5 L / 0.088 cu.ft

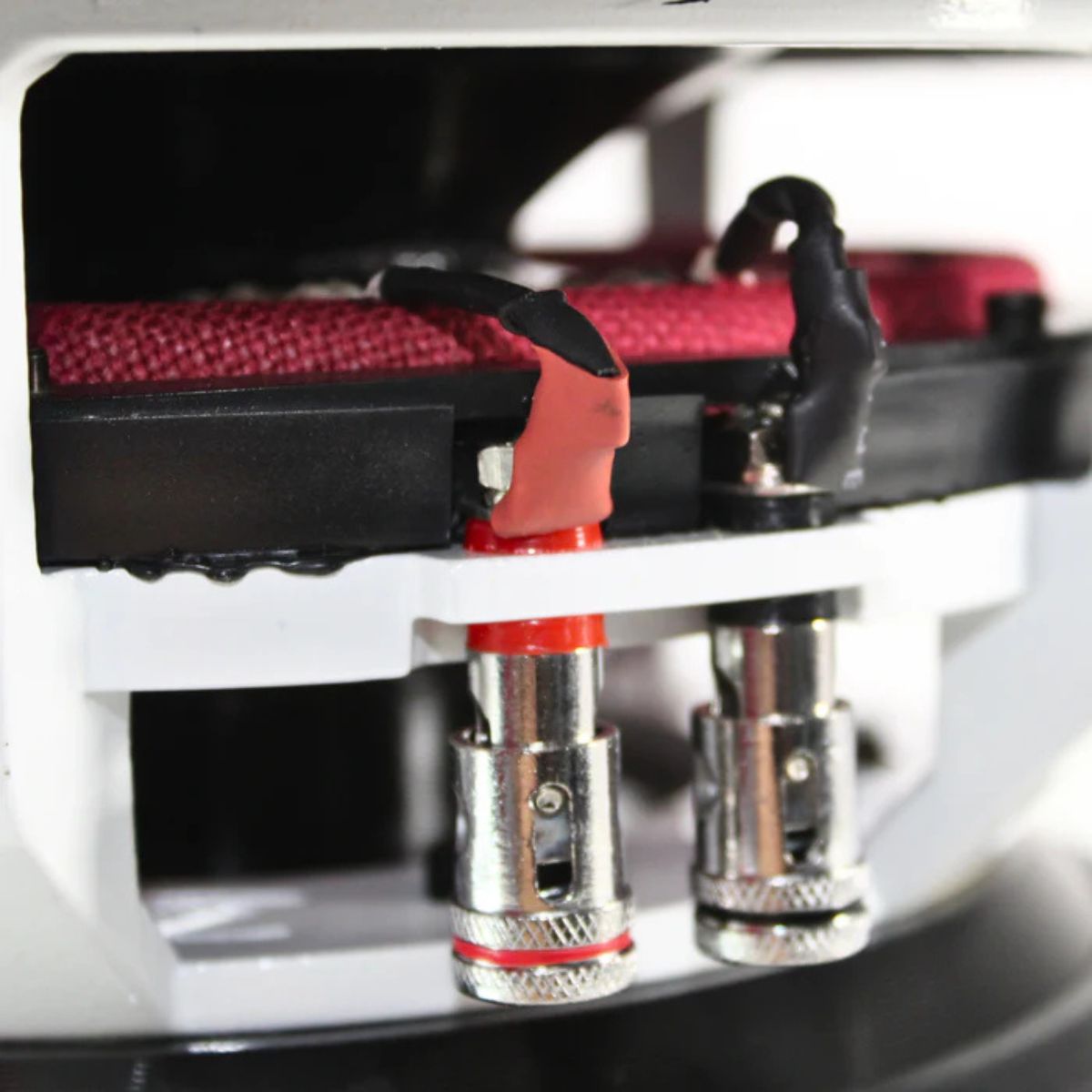

• 12 AWG Wire Inputs For Push Terminals

Thiele & Small

• Free Air Resonance (Fs): 39.3 Hz



• Resistance (Re): 1.9 Ohm



• Mechanical Factor (Qms): 6.09



• Electrical Factor (Qes): 0.5



• Total Factor (Qts): 0.48



• Equivalent Volume (Vas): 5.8 L



• Compliance (Cms): 110 um/N



• Moving Mass (Mms): 138.5 g



• BL Factor (BL): 72.9 TM



• Excursion Max (Xmax): 0.59" / 15 mm
