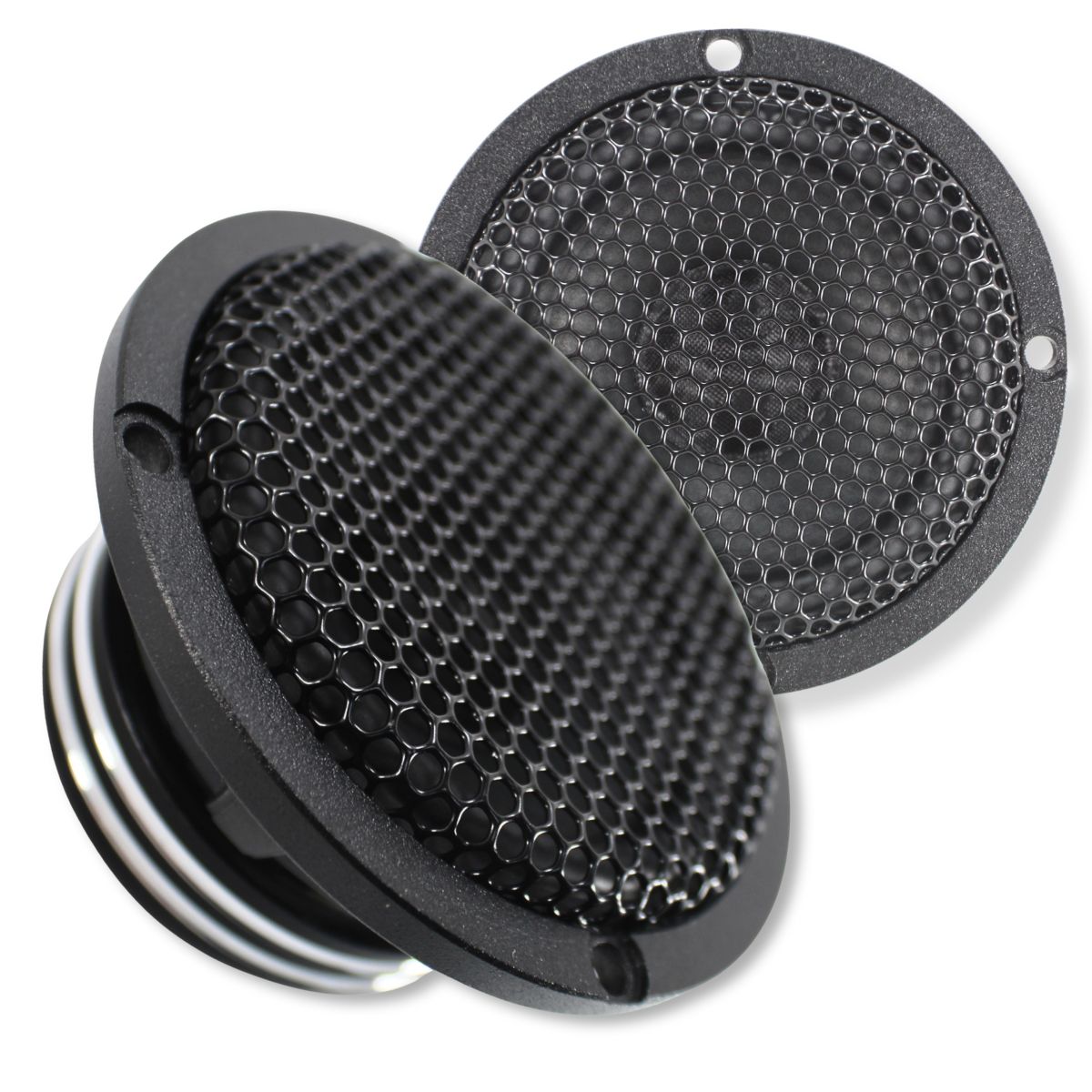

B2 Audio REFERENCE 3" 6-Ohm 50 Watt RMS Bamboo Infused Midrange Speaker REF3MR

B2 Audio REFERENCE 3" 6-Ohm 50 Watt RMS Bamboo Infused Midrange Speaker REF3MR

SKU:B2-REF3MR

Regular price $199.95
Regular price $249.94 Sale price $199.95
Sale Sold out

This product includes a free CPS 2 Year Extended Warranty card that will be shipped with your order. You will need to follow the information on the card to register your warranty for this product.

  • Exceptional Midrange Performance: Experience rich and detailed midrange frequencies with these high-quality bamboo-infused speakers.
  • Powerful RMS Handling: Each speaker boasts a RMS power handling of 50W, ensuring robust and clear audio reproduction.
  • Premium Construction: Crafted with bamboo infusion for enhanced durability and superior sound quality.
  • Wide Frequency Response: Enjoy a frequency response of 50 Hz to 25 KHz, capturing every nuance of your music.
  • Easy Installation: Designed with precise measurements for straightforward mounting in your vehicle or audio setup.


B2 Audio REFERENCE 3" 6-Ohm 50 Watt RMS Bamboo Infused Midrange Speaker REF3MR





This Listing Includes:





  • (2) 3" 50W Midrange Speakers




Fuel your audio revolution with the B2 Audio RAGE 3" Bamboo Infused Midrange Speakers. Engineered to obliterate mediocrity, these speakers unleash relentless midrange performance that'll leave you in awe. With a bone-shaking RMS power handling of 50W per speaker, they don't just reproduce sound, they command it with authority, delivering robust and crystal-clear audio output that dominates the competition. Crafted with bamboo infusion, these speakers aren't just durable, they're unstoppable, ensuring superior sound quality that stands the test of time. Boasting a wide frequency response of 50 Hz to 25 KHz, they faithfully reproduce every nuance of midrange frequencies, elevating your audio experience to new heights whether you're jamming to music or immersing yourself in movies.



Midrange Specifications:





  • RMS Power Handling: 50W


  • Nominal Impedance: 6 Ohm


  • Voice Coil Diameter: 1"


  • Frequency Response: 50 Hz ~ 25 KHz




Thiele & Small Parameters:





  • Free Air Resonance (Fs): 159 Hz


  • Resistance (Re):5.2 ohm


  • Mechanical Factor (Qms): 5.54


  • Electrical Factor (Qes): 1.43


  • Total Factor (Qts): 1.14


  • Equivalent Volume (Vas): 0.5 L


  • L Efficiency: 0.142%


  • Compliance (Cms): 354 um/N


  • BL Factor (BL): 3.2 TM


  • Moving Mass (Mms): 2.8 g


  • Sound Pressure Level (SPL): 83.6 dB




Measurements:





  • Overall Diameter: 3.59" / 91.4mm


  • Mounting Diameter: 3.03" / 77mm


  • Front Mount Baffle Cutout: 3.15" / 80mm


  • Overall Depth: 1.91" / 48.6mm


  • Mounting Depth: 1.53" / 38.9mm


  • Sold as: (Pair)
