B2 Audio RIOT 6.5" 3-Way 4-Ohm Component Set w/ 3" Mids 1" Tweeters & Crossovers

• High-Performance Midrange: Enjoy clear and detailed midrange frequencies with these 3" coated paper cone speakers from B2 Audio RAGE series.
• Silk dome tweeters and coated paper cone midwoofers deliver warm, full sound with a wide frequency response.
• Enhanced Sound Quality: Designed with optimized Thiele & Small parameters for superior audio performance.
• Complete Audio Solution: Includes 3-way crossovers for seamless integration into your car audio system.

B2 Audio RIOT 6.5" 3-Way 4-Ohm Component Set w/ 3" Mids 1" Tweeters & Crossovers

This Listing Includes:

• (2) 6.5" 100W RMS Midrange Speakers


• (2) Silk Dome 10W RMS Tweeters


• (2) Grilles for the 6.5" Speakers


• (2) 3" 80W 6 Ohm Coated Paper Cone Midrange Speakers

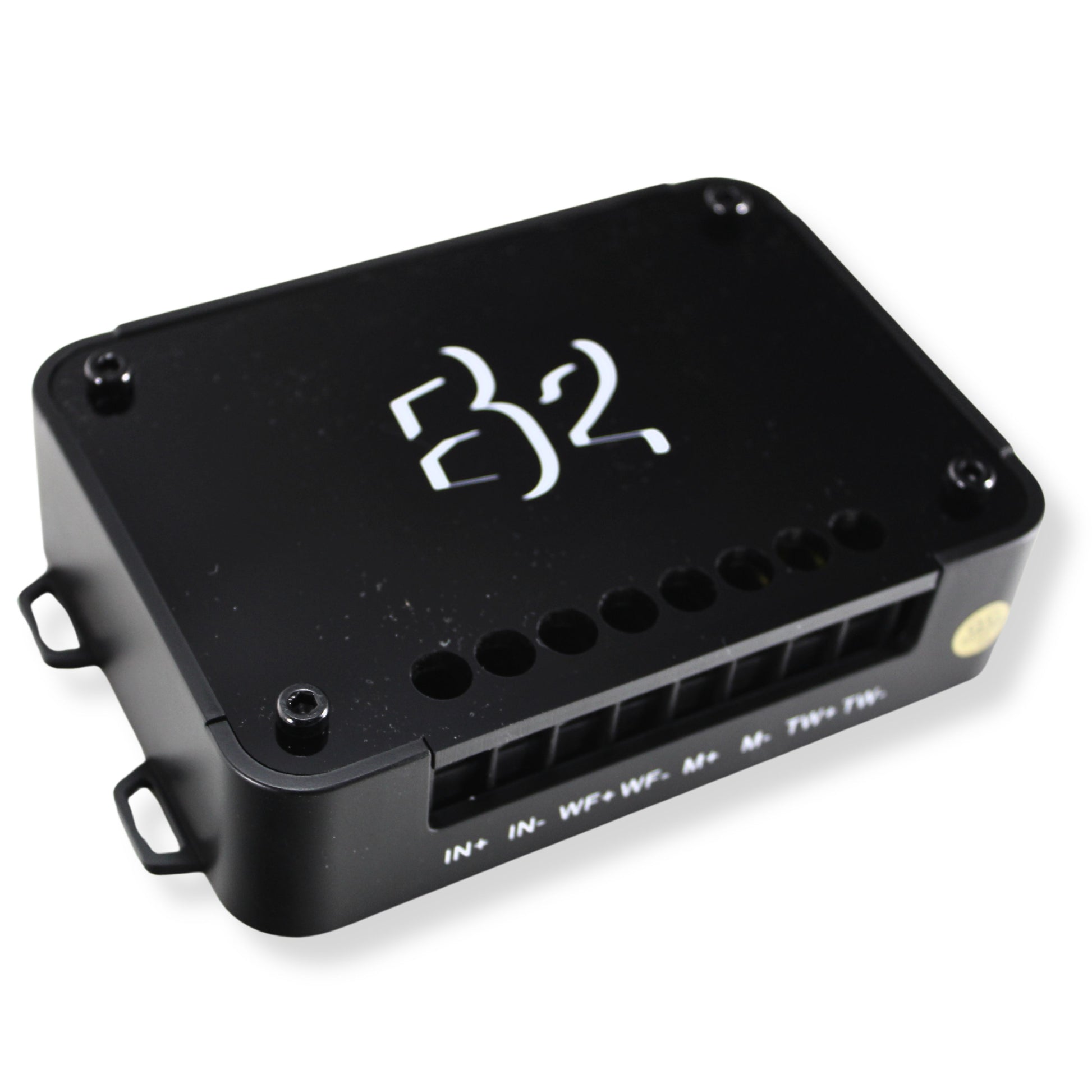

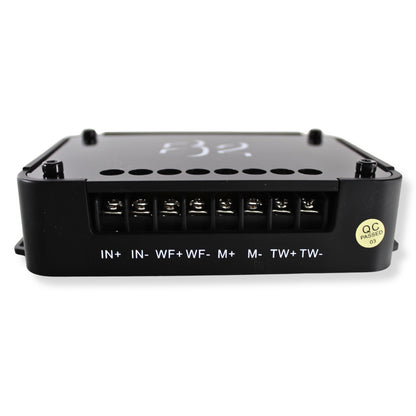

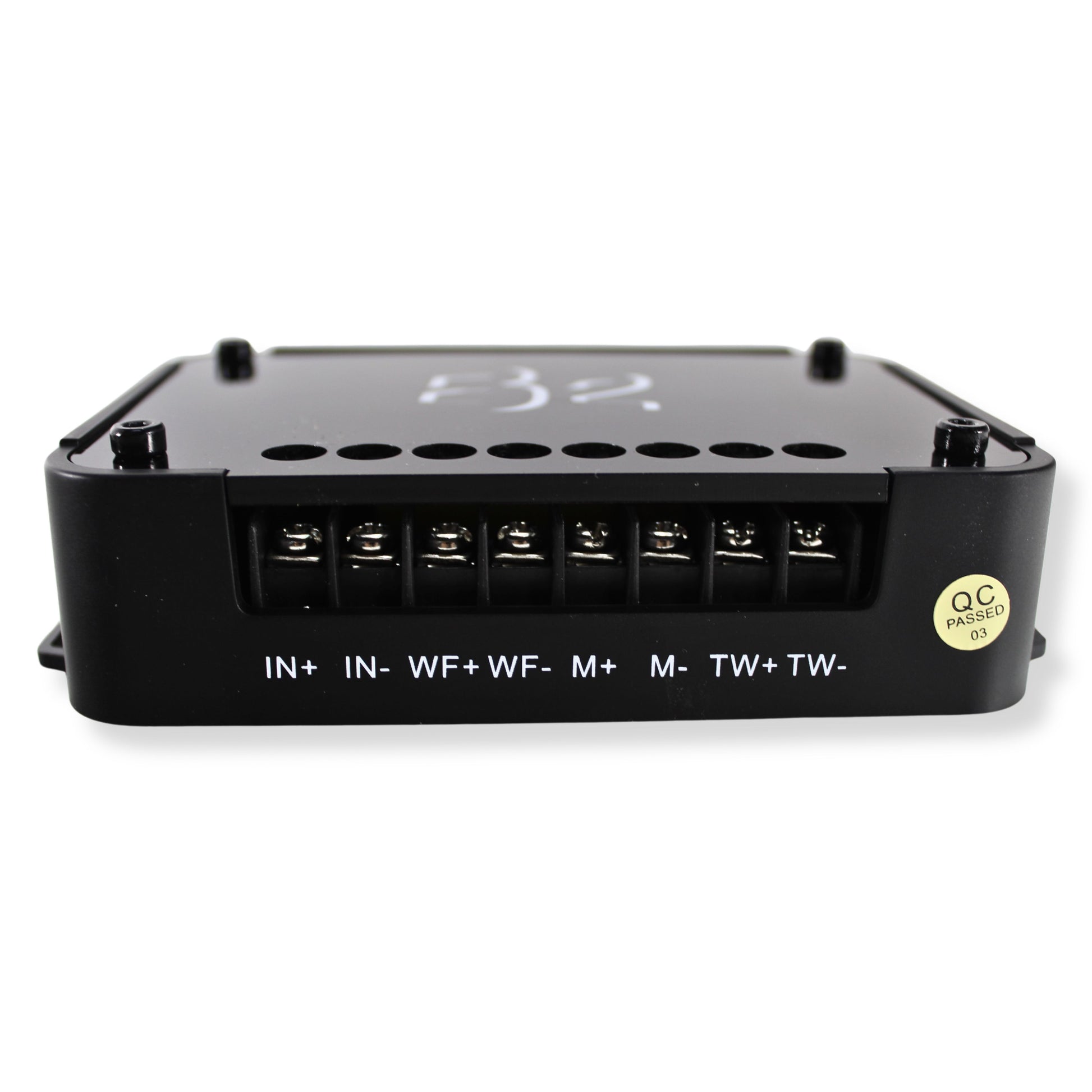

• (2) 3-Way Crossovers

Rev up your car's audio with the RIOT61 6.5" Component Speaker Kit. Engineered for raw power and performance, it features aggressive 12 dB/octave crossovers with tweeter attenuation set at 3.5 KHz for precision. Silk dome tweeters deliver clear highs, while coated paper cone midwoofers provide a fuller sound. With easy installation and specs that scream dominance, including wide frequency response and high sensitivity, the RIOT61 ensures an immersive driving experience.

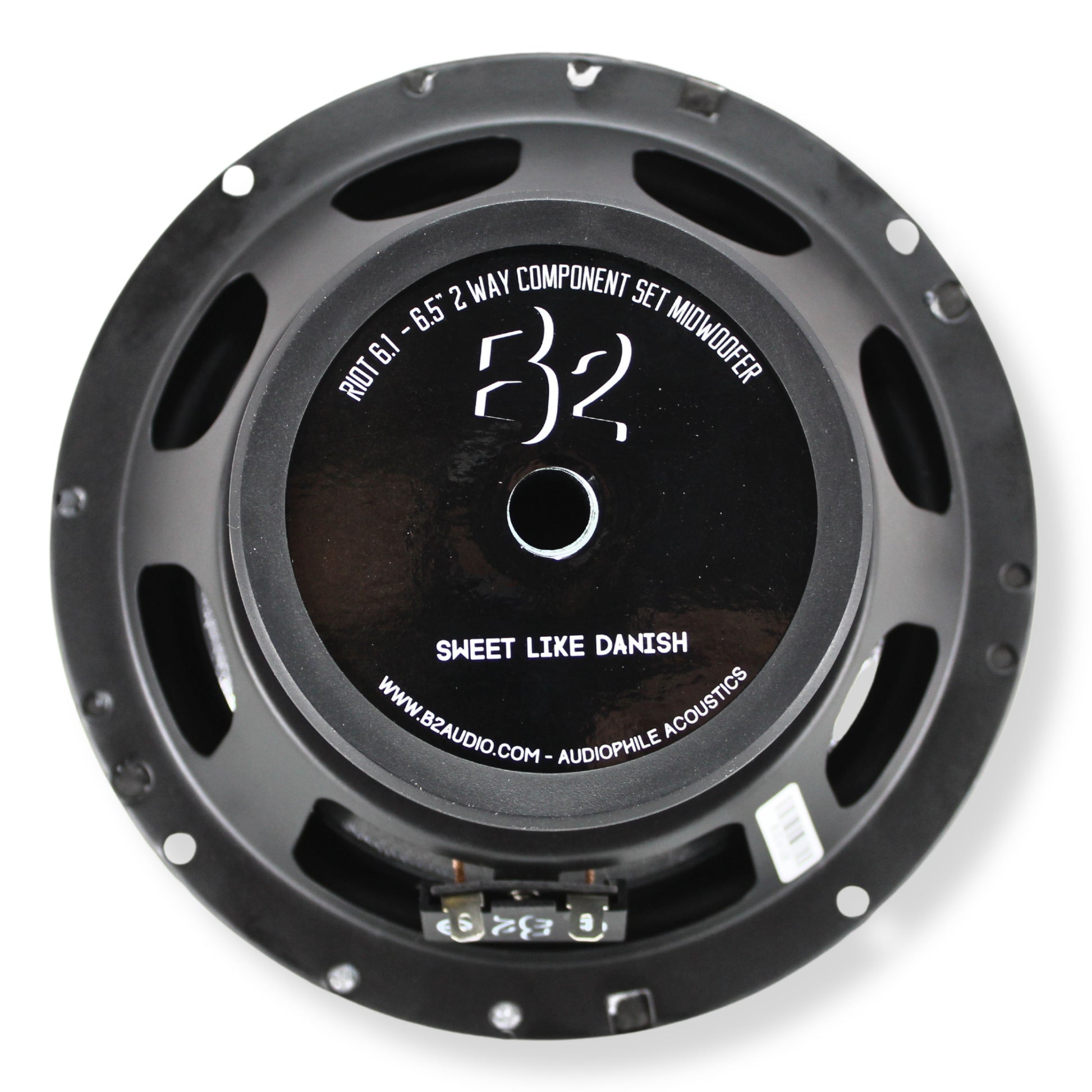

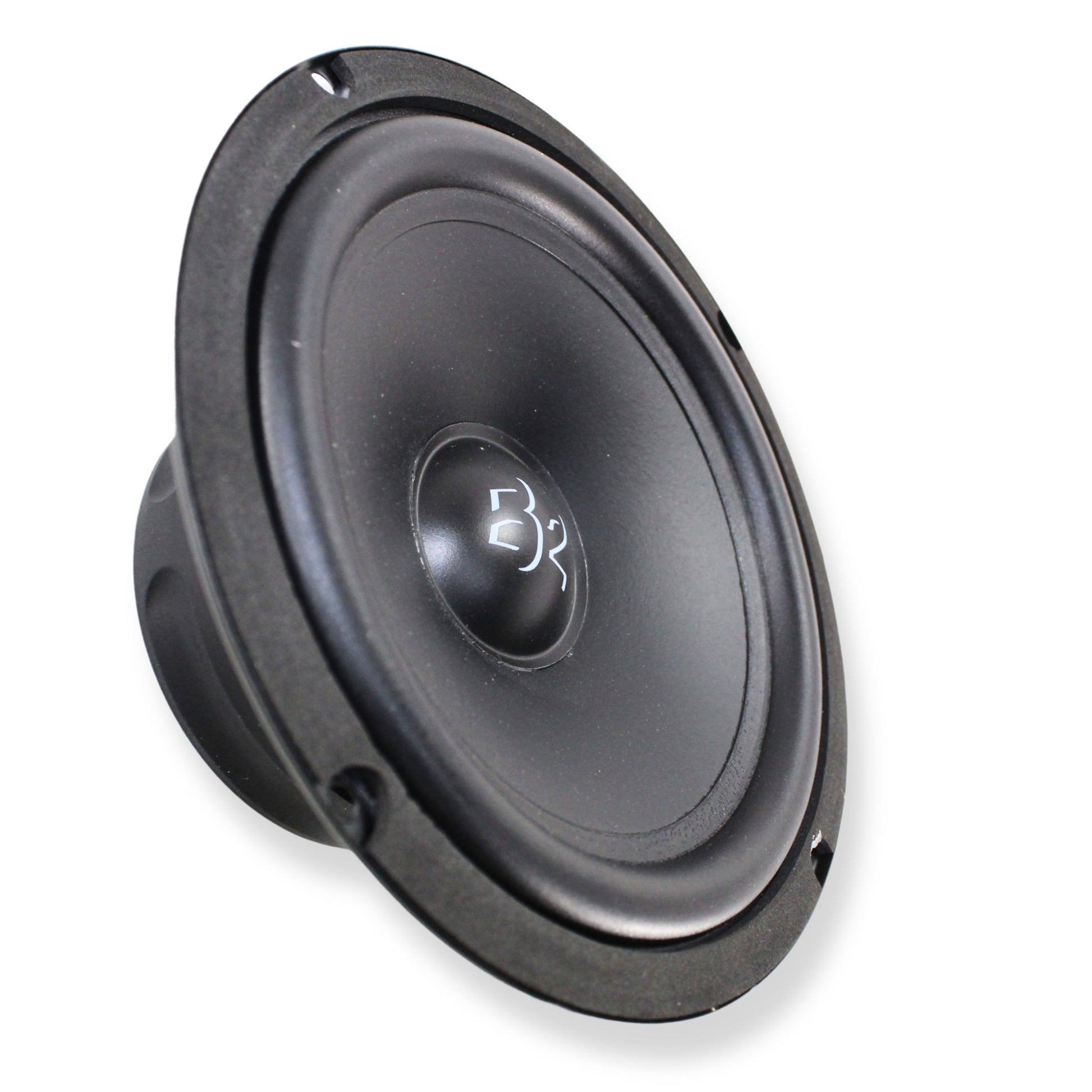

6.5" Midrange Specifications:

• RMS Power Handling: 100W


• Maximum Power Handling: 150W


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 1.2"


• Frequency Response: 60 Hz ~ 23 KHz


• Sensitivity: 90.2 dB

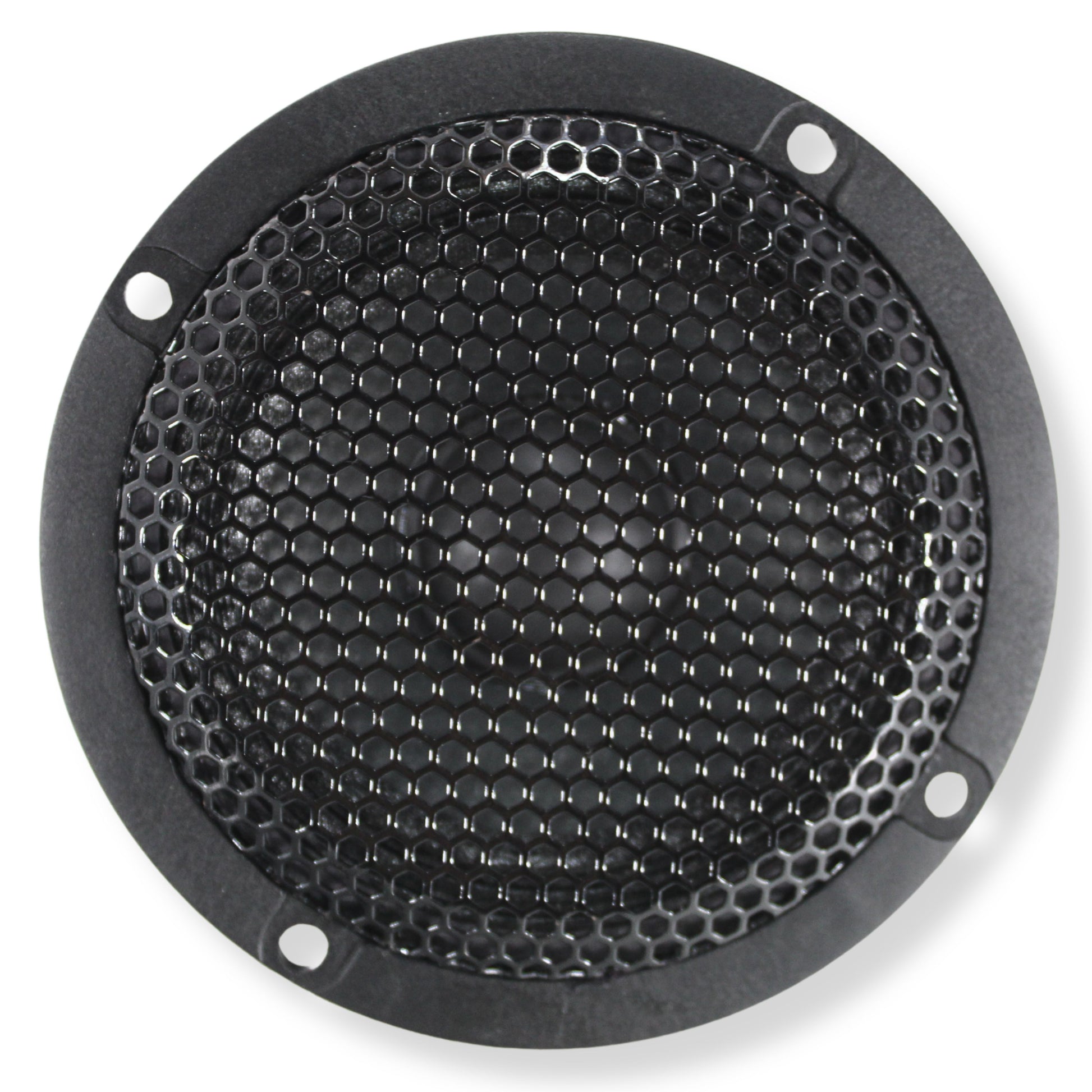

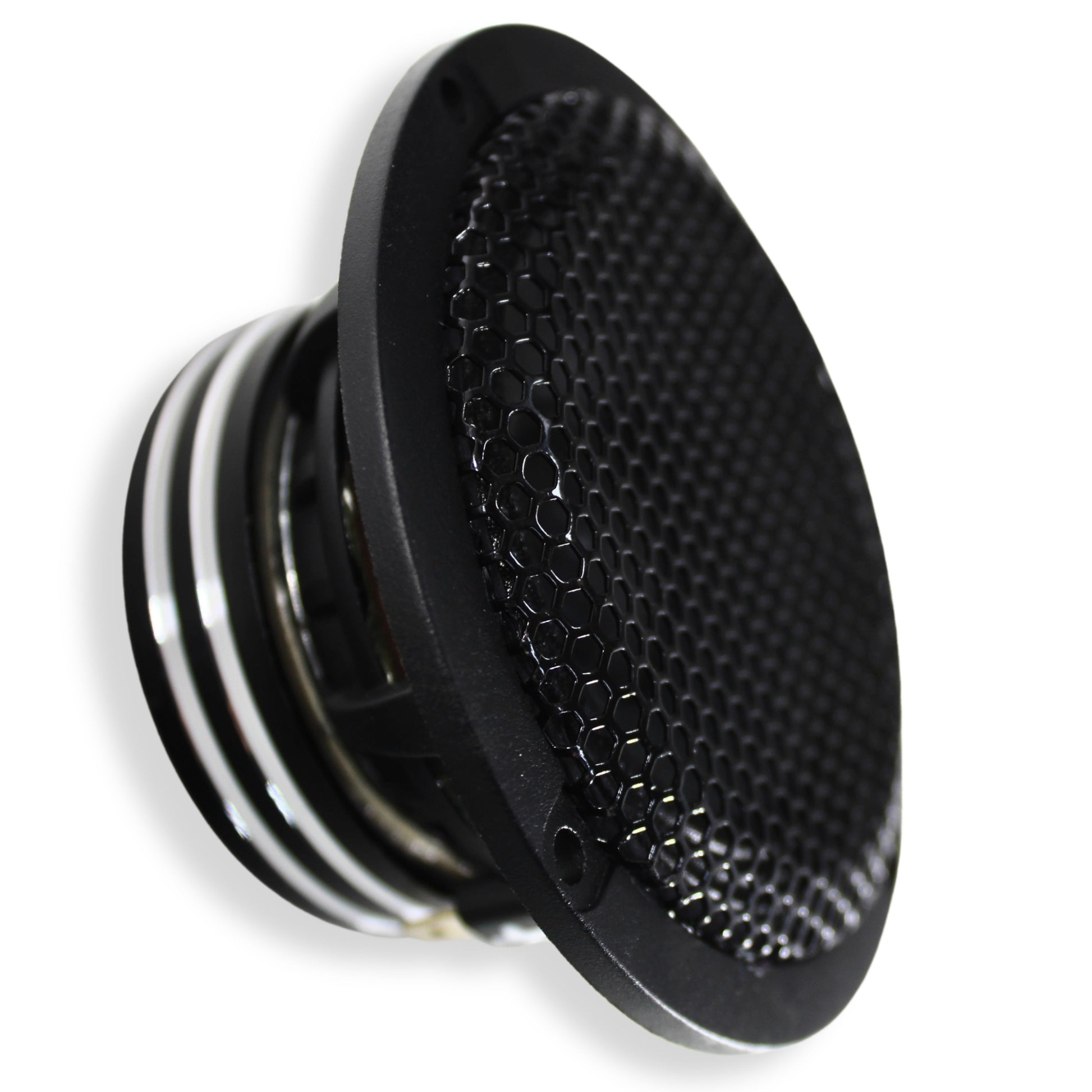

3" Midrange Specifications:

• RMS Power Handling: 80W


• Nominal Impedance: 6 Ohm


• Voice Coil Diameter: 1"


• Frequency Response: 60 Hz ~ 20 KHz

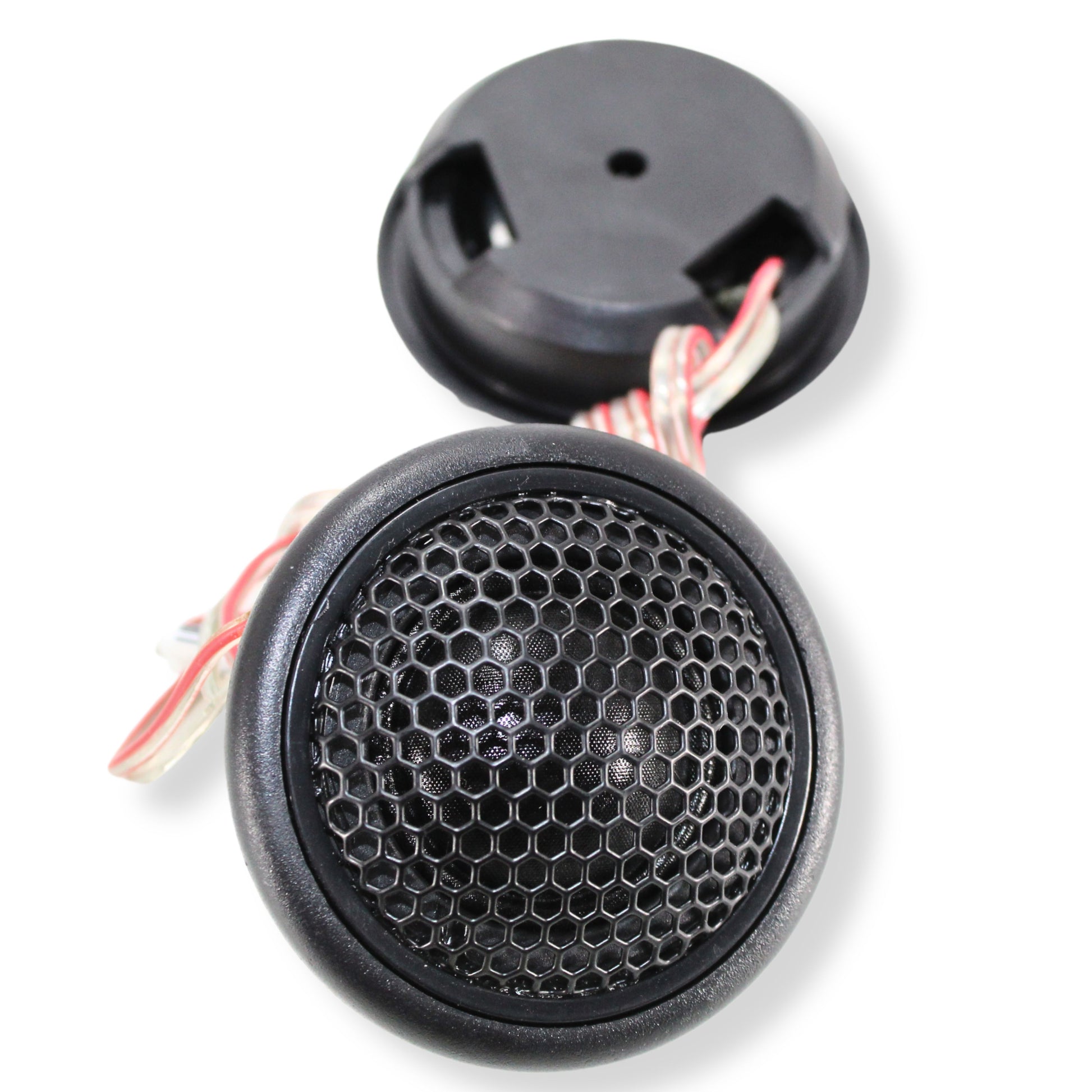

1" Tweeter Specifications:

• RMS Power Handling: 10W


• Max Power Handling: 25W


• Nominal Impedance: 4 Ohm


• Voice Coil Diameter: 1"


• Sensitivity: 94 dB


• Free Air Resonance (Fs): 1.8 KHz

Thiele & Small Parameters:

6.5" Midrange:

• Free Air Resonance (Fs): 62 Hz


• Resistance (Re): 3.4 ohm


• Mechanical Factor (Qms): 3.55


• Electrical Factor (Qes): 0.55


• Total Factor (Qts): 0.476


• Equivalent Volume (Vas): 14.03 L


• Compliance (Cms): 560 um/N


• BL Factor (BL): 5.32 TM


• Moving Mass (Mms): 11.73 g

3" Midrange:

• Free Air Resonance (Fs): 208.90 Hz


• Resistance (Re): 5.34 ohm


• Mechanical Factor (Qms): 6.00


• Electrical Factor (Qes): 1.28


• Total Factor (Qts): 1.05


• Sound Pressure Level (SPL): 83.7 dB

Measurements:

6.5" Midrange:

• Overall Diameter: 6.53" / 166mm


• Mounting Diameter: 5.66" / 144mm


• Front Mount Baffle Cutout: 5.55 / 141mm


• Overall Depth: 2.59 / 65.9mm


• Mounting Depth: 2.40" / 61mm


• Sold as: (Pair)

3" Midrange:

• Overall Diameter: 3.38" / 86mm


• Mounting Diameter: 3.17" / 80mm


• Front Mount Baffle Cutout: 2.52" / 64mm


• Overall Depth: 1.58" / 40.3mm


• Mounting Depth: 1.14" / 29mm


• Sold as: (Pair)

1" Tweeter:

• Overall Diameter: 1.96" / 50mm


• Overall Depth: 1.00" / 25.6mm


• Mounting Depth: 0.63" / 16mm
