RAMPAGE 8" Dual Voice Coil 1000W RMS Subwoofer w/ Tru Spec Vented 8" Enclosure
RAMPAGE 8" Dual Voice Coil 1000W RMS Subwoofer w/ Tru Spec Vented 8" Enclosure
SKU:B2-COMBO-26
CASE QUANTITY: N/A
PACKAGE WEIGHT: 30.0 LB
Share
- Unmatched Bass Power: Experience deep, earth-shaking bass with the B2 Audio RAMPAGE 8" Subwoofer, delivering 1000 Watts RMS and 2000 Watts Peak Power, perfect for high-impact audio setups.

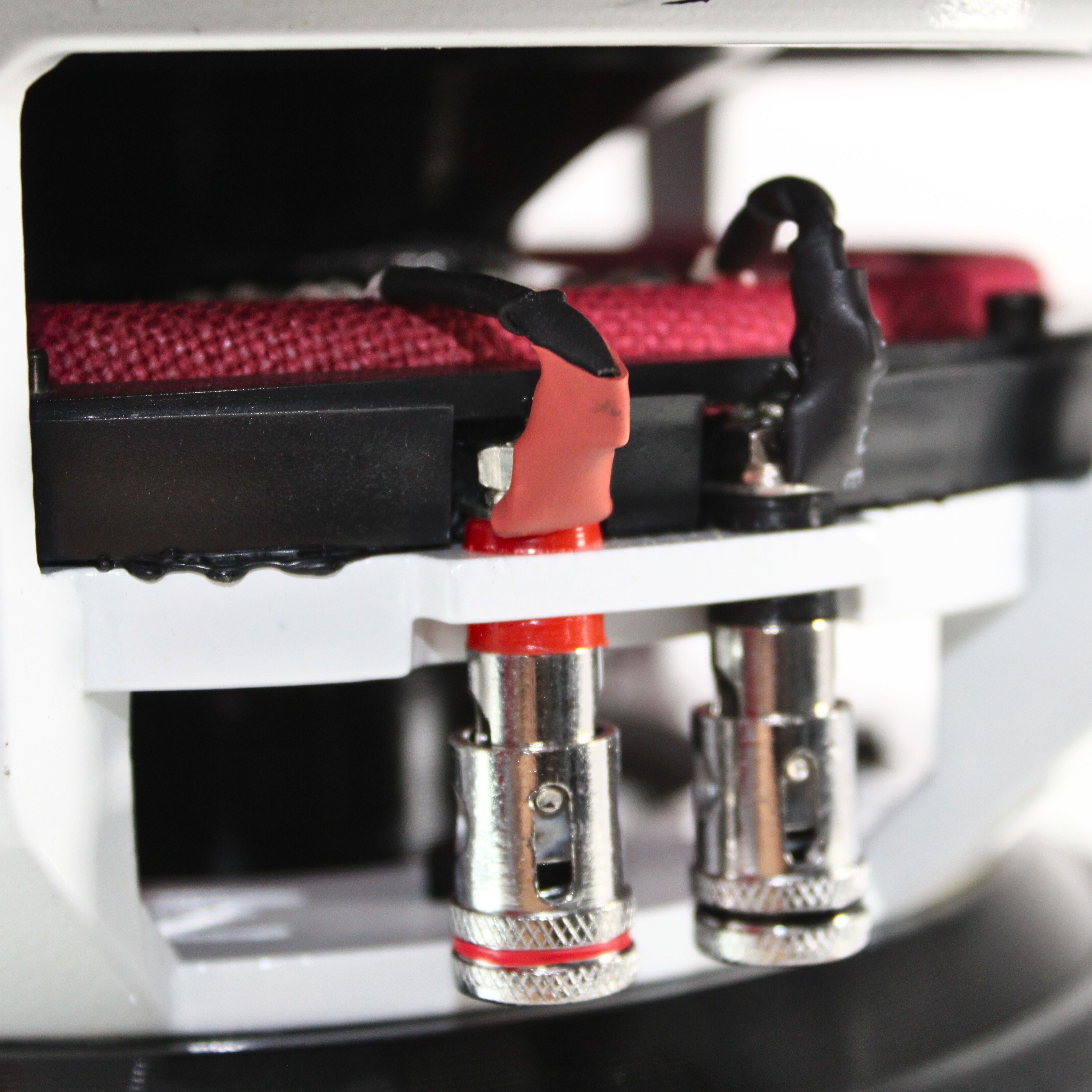

- Flexible Installation: Dual 1-ohm or Dual 2-ohm voice coils offer versatile wiring options, allowing you to customize your system and push your amplifier to peak performance with ease.
- Premium Tru Spec Enclosure: Paired with a Tru Spec Prefab Enclosure, this combo is dialed to precise specifications for optimal sound quality, with a durable 0.75" MDF construction and a tuning frequency of 35 Hz.
- High Sensitivity & Precision: With a sensitivity of 87.2 dB, this subwoofer provides powerful bass at all volumes, bringing music to life even at lower power levels, perfect for enthusiasts who demand superior performance.
- Compact Size, Big Sound: Designed for tight spaces, the RAMPAGE subwoofer and Tru Spec enclosure pack a punch in a compact form, outperforming larger subs and enhancing any sound system with ease.
RAMPAGE 8" Dual Voice Coil 1000W RMS Subwoofer w/ Tru Spec Vented 8" Enclosure
This Listing Includes:

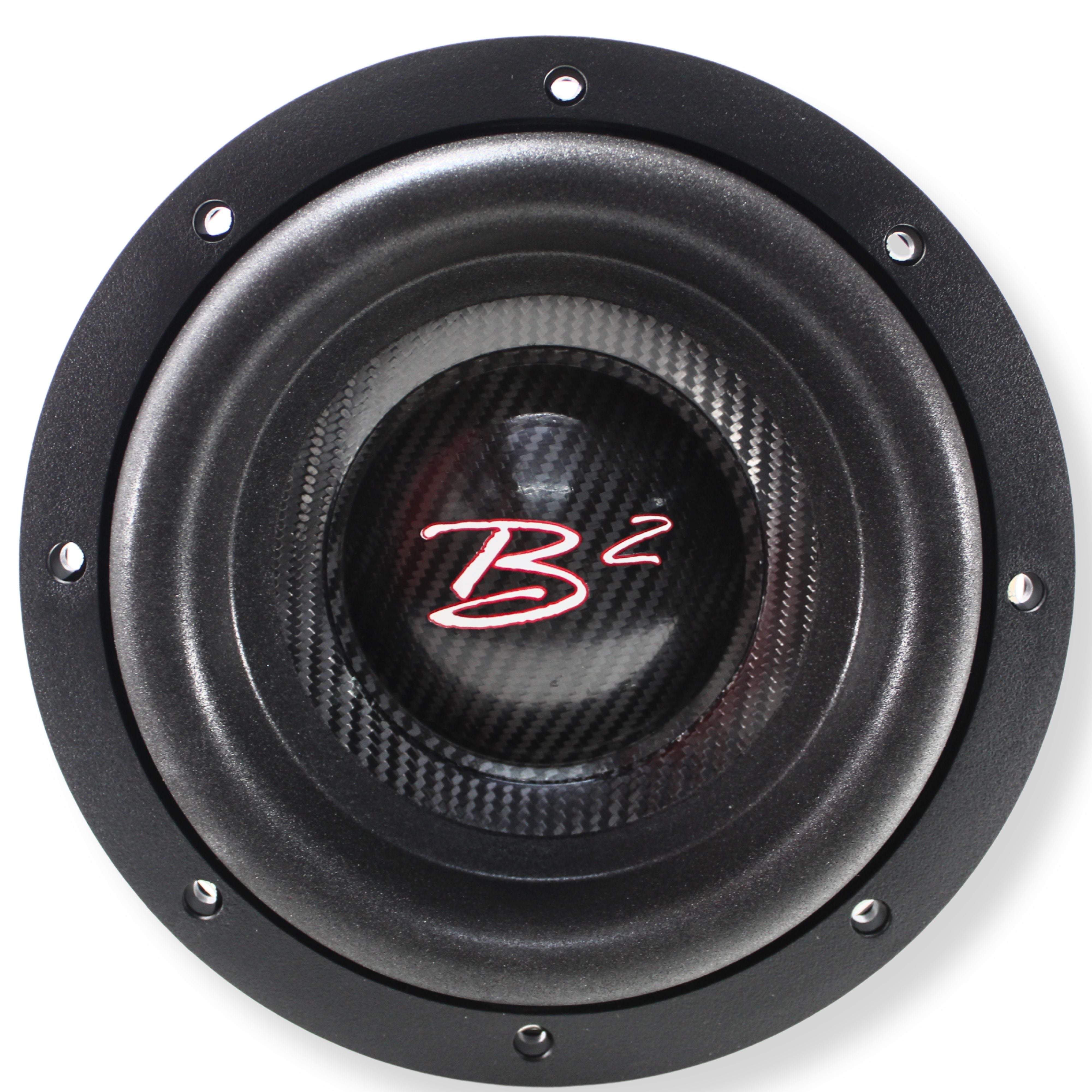

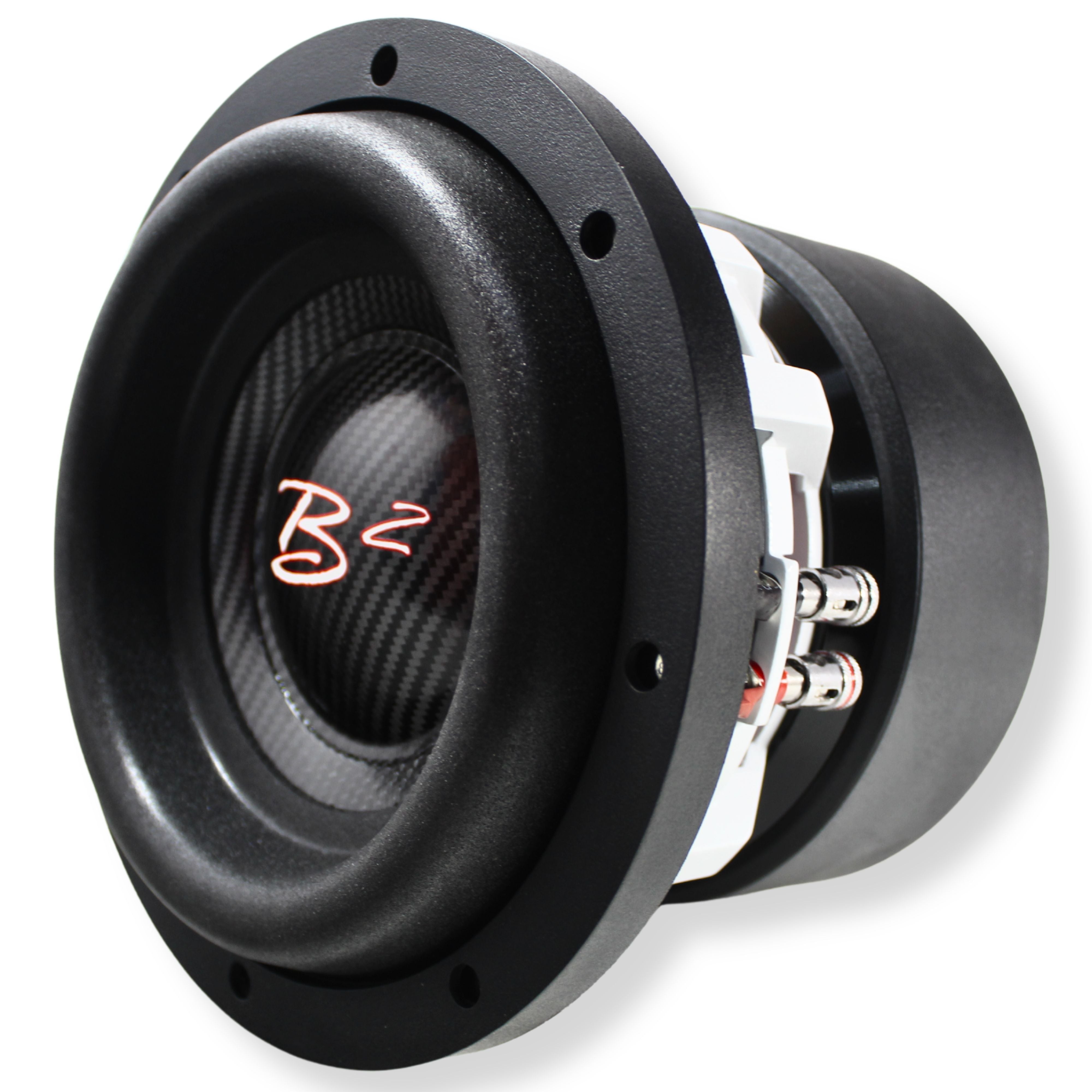

- (1) B2 Audio RAMPAGE8-V2 8" Subwoofer
- (1) Tru Spec Prefab Single 8" Subwoofer Enclosure
Unleash Earth-Shaking Sound with Precision

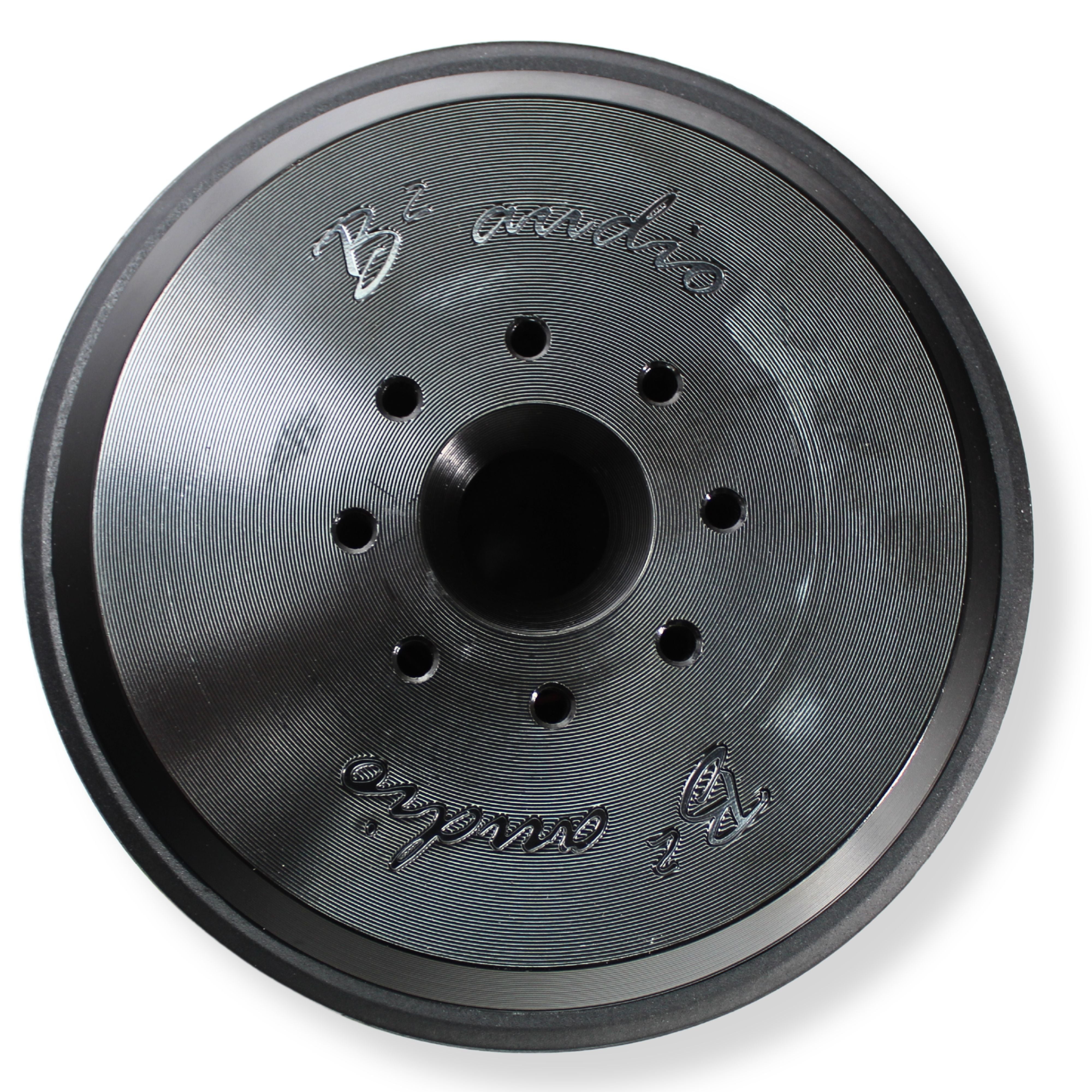

Get ready for a seismic shift in your audio setup with the B2 Audio RAMPAGE Series 8" 2000 Watt Peak Subwoofer and Tru Spec Prefab enclosure. This combination is built to deliver explosive power and clarity, pushing your system to new limits with deep, thunderous bass. With dual voice coils for versatile wiring options, the RAMPAGE subwoofer packs a 2" voice coil and 300 oz magnet, ensuring ground-pounding bass that resonates at any volume. Its exceptional sensitivity (87.2 dB) means you’ll feel every beat, while its compact size allows it to outperform larger subs.
High-Performance Subwoofer Specifications:
- RMS Power Handling: 1000 Watts
- Max Power Handling: 2000 Watts
- Frequency Response: 10 Hz - 500 Hz
- Nominal Impedance: Dual 1-Ohm or Dual 2-Ohm
- Voice Coil Diameter: 2"
- Sensitivity: 87.2 dB
- Magnet Weight: 300 Oz
- Displacement Volume: 3.3 L / 0.115 cu ft
Thiele & Small Parameters (1-Ohm/2-Ohm)
- Free Air Resonance (Fs): 39 Hz / 37.5 Hz
- Mechanical Factor (Qms): 5.67 / 6.16
- Electrical Factor (Qes): 0.55 / 0.5
- Total Factor (Qts): 0.5 / 0.46
- Equivalent Volume (Vas): 5.4 L / 5.2 L
- Excursion Max (Xmax): 20 mm / 20 mm
Measurements:
- Overall Diameter: 8.66" / 220mm
- Mounting Diameter: 7.84" / 199mm
- Overall Depth: 7.09" / 180mm
- Mounting Depth: 5.91" / 150mm

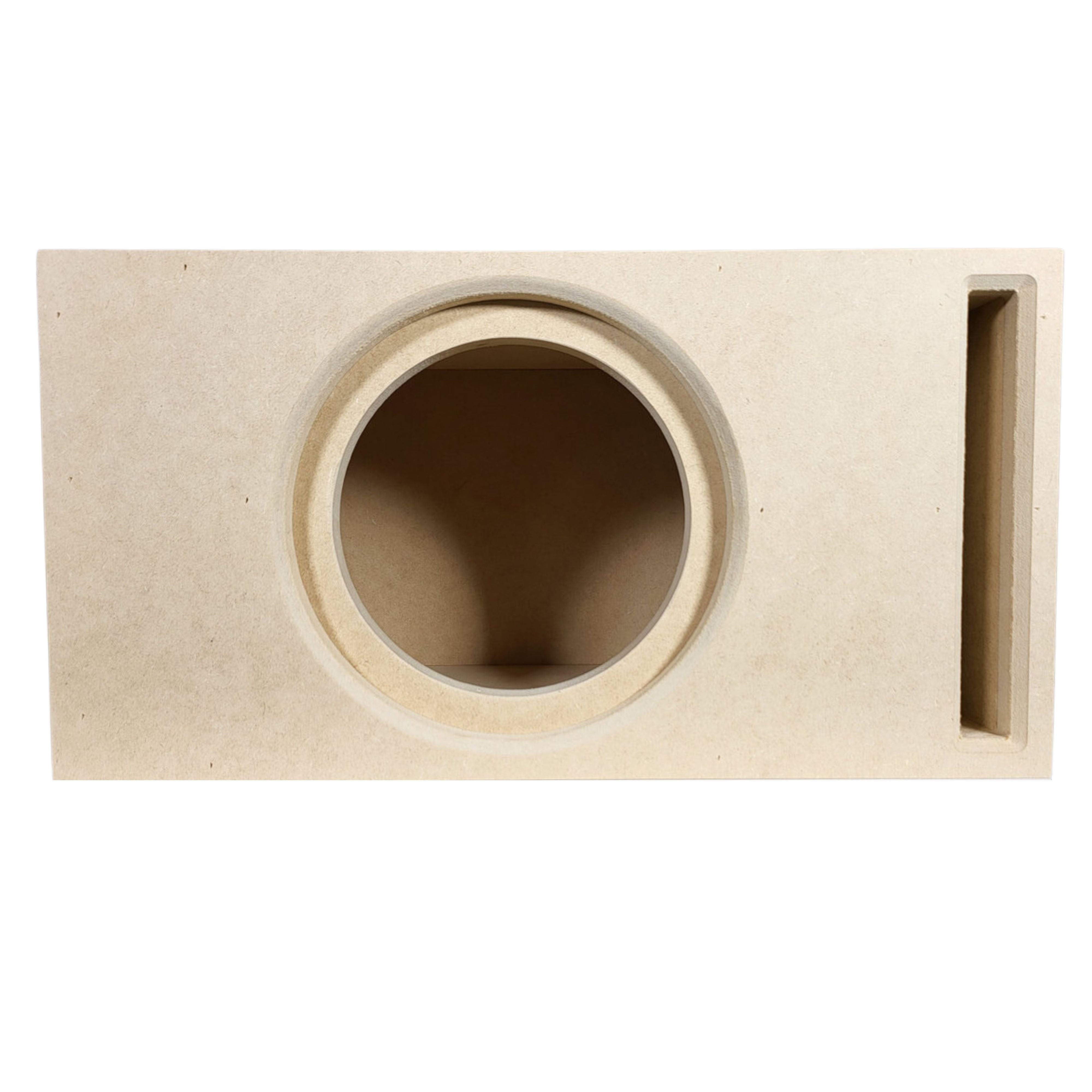

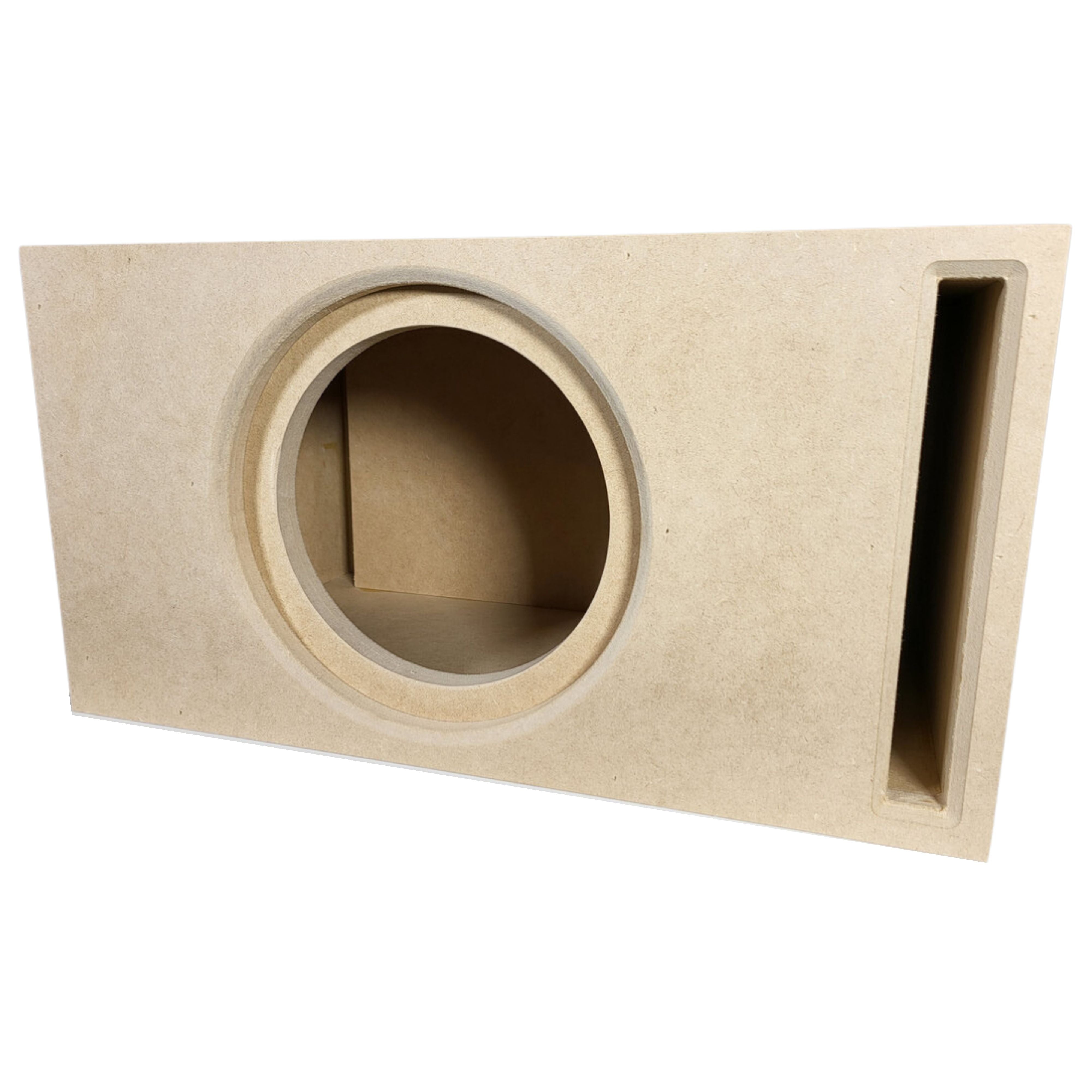

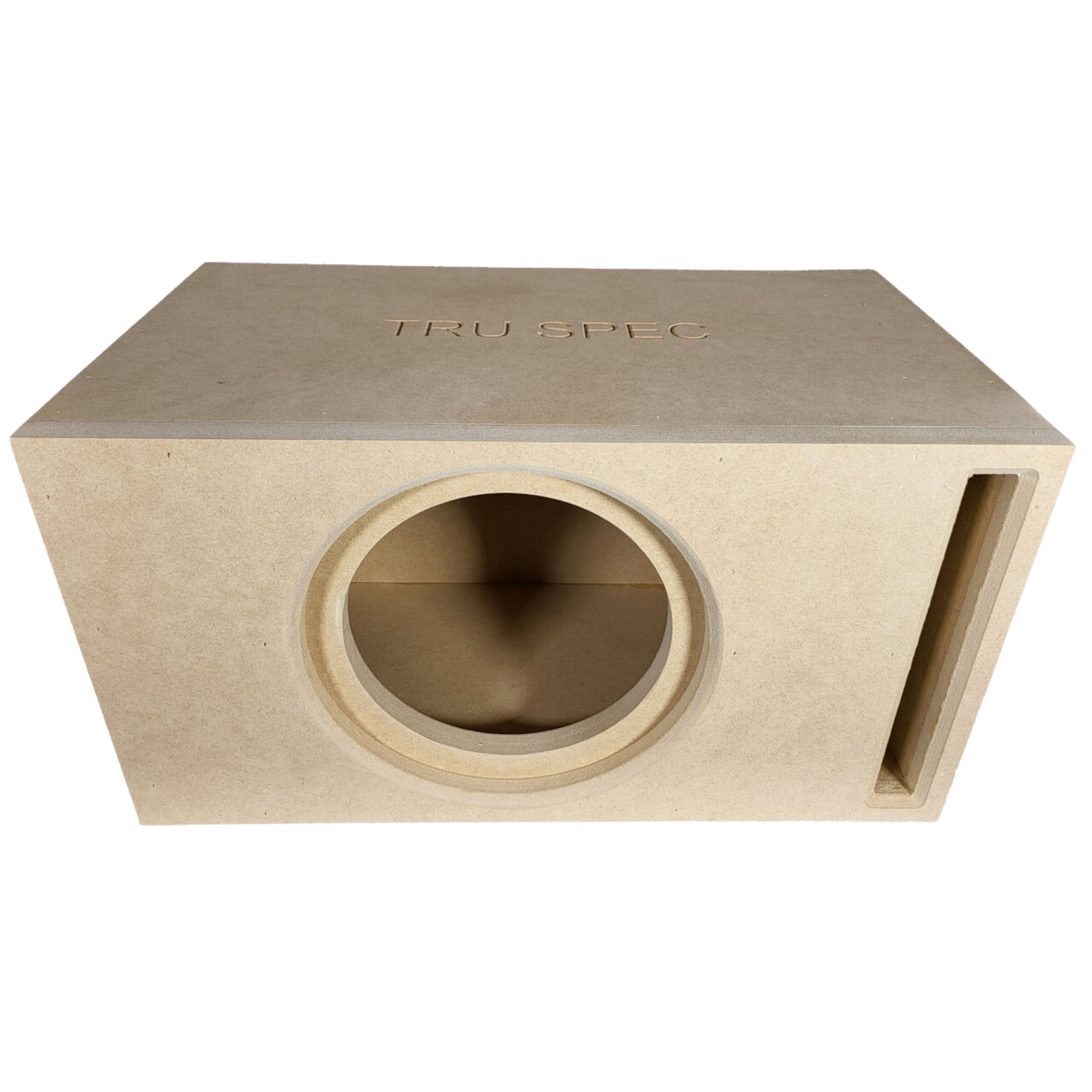

Tru Spec Prefab Single 8" Subwoofer Enclosure
This Tru Spec Prefab Enclosure is designed to complement the B2 Audio RAMPAGE subwoofer perfectly. Constructed with a 0.75" thick MDF material and precisely dialed to manufacturer's specifications, this enclosure provides optimal performance and reliability for the RAMPAGE8
Box Dimensions:
- Length: 20"
- Height: 10.5"
- Width: 11.26"
Specifications:
- Net Internal Volume: 0.65 ft
- Tuning Frequency: 35 Hz
- Port Area: 9.00 inch
- Cutout Diameter: 7.45"
- Flush Trim Diameter: 9"
Elevate Your Sound System
With the B2 Audio RAMPAGE Series 8" Subwoofer and Tru Spec Enclosure, experience high-powered bass that commands attention. Perfectly suited for serious bass enthusiasts, this setup will transform your sound system, delivering heart-pounding lows and unparalleled performance. Feel the power, unleash the chaos, and dominate the audio landscape with this powerful subwoofer and enclosure combo!
