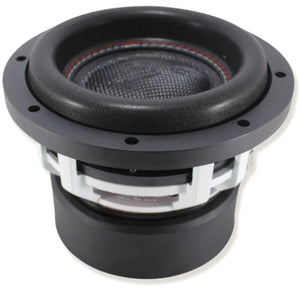

Two RAGE 8" DVC 500W RMS Subwoofer w/Tru Spec Vented Dual 8" Enclosure

Two RAGE 8" DVC 500W RMS Subwoofer w/Tru Spec Vented Dual 8" Enclosure

SKU:B2-COMBO-41

CASE QUANTITY: N/A

PACKAGE WEIGHT: 70.0 LB

Regular price $599.95
Regular price $537.95 Sale price $599.95
Sale Sold out
Model
  • Explosive Bass Performance: Unleash earth-shaking sound with the B2 Audio RAGE Series 8" Dual Voice Coil 500W RMS Subwoofer, delivering deep, thunderous bass that resonates at every volume, thanks to its 2" voice coil and 300 oz magnet for maximum impact.
  • Precision-Tuned Tru Spec Enclosure: The Tru Spec Prefab Dual 8" Subwoofer Enclosure, made with durable 0.75" MDF, is tuned to 35 Hz to perfectly complement the RAGE subwoofer, optimizing sound quality and bass depth for a powerful audio experience.
  • Compact Yet Powerful Design: This compact 8" subwoofer packs a punch, with an impressive sensitivity of 83.8 dB, outperforming larger subs and providing ground-pounding bass that doesn’t compromise on space.
  • Versatile Dual Voice Coils: With dual 2-ohm voice coils, this subwoofer offers flexible wiring options to customize your audio setup and achieve the exact sound profile you desire.
  • Built for Serious Bass Enthusiasts: Perfect for those who demand high-performance audio, this subwoofer and enclosure combo elevates any sound system, delivering heart-pounding lows and dominating sound that commands attention.

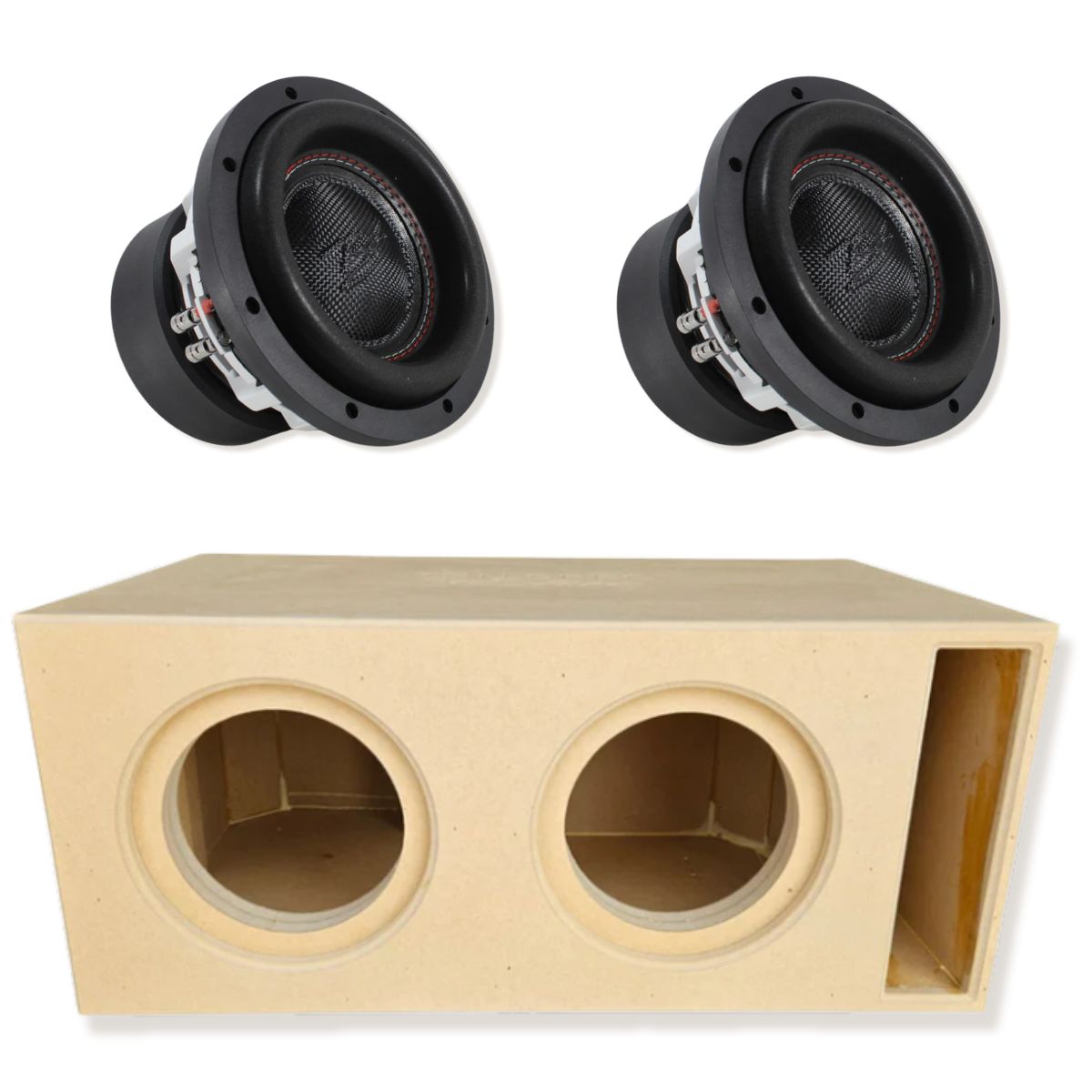

Two RAGE 8" DVC 500W RMS Subwoofer w/Tru Spec Vented Dual 8" Enclosure


This Listing Includes:

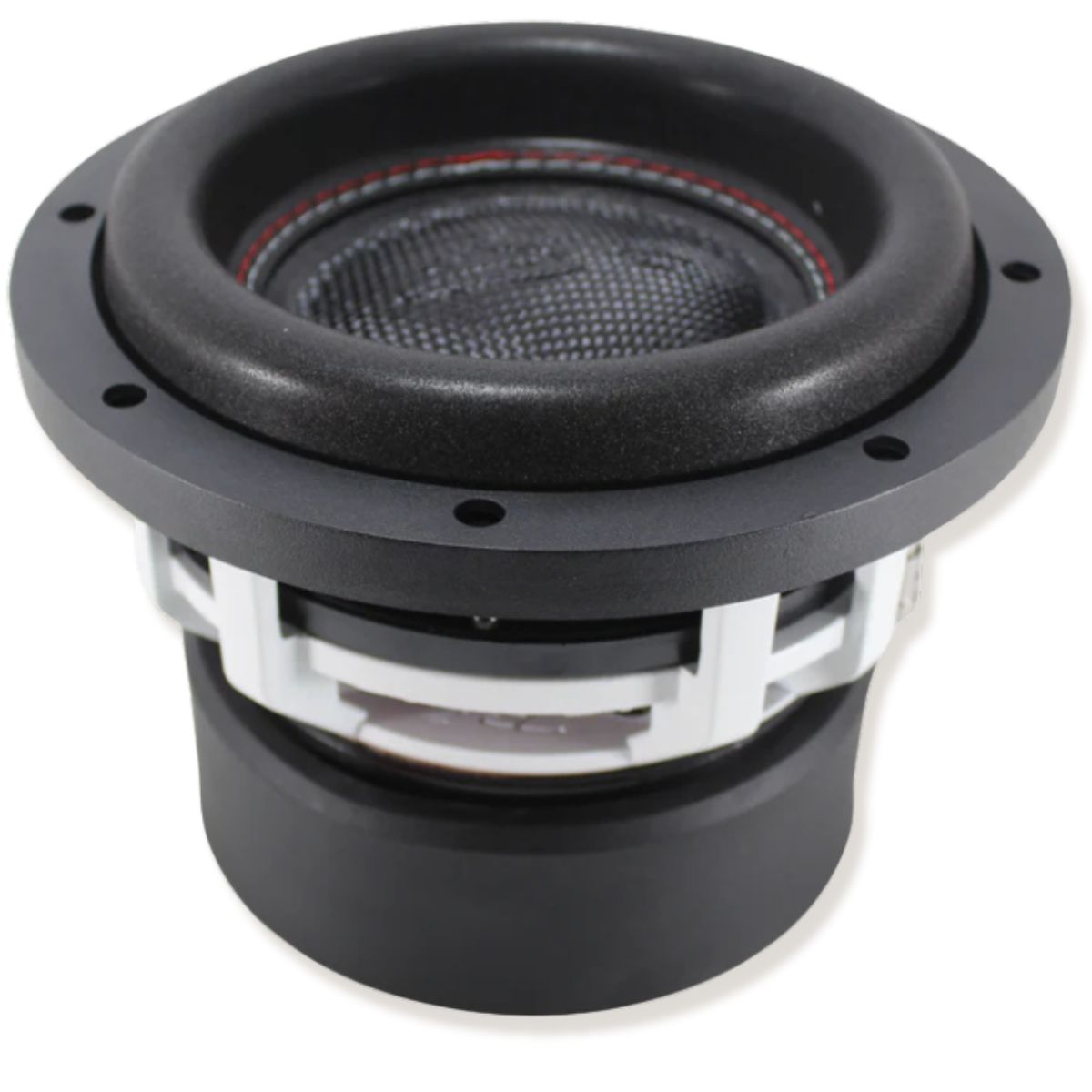

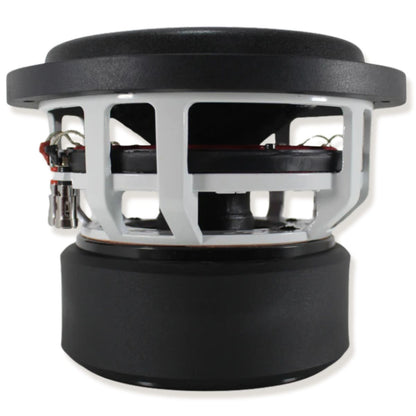

  • (2) B2 Audio RAGE8-V2 8" Subwoofer

  • (1) Tru Spec Prefab Single 8" Subwoofer Enclosure


Unleash Earth-Shaking Sound with Precision


Get ready for a seismic shift in your audio setup with the B2 Audio RAGE Series 8" Dual Voice Coil 1000 Watt Peak Subwoofer and Tru Spec Prefab enclosure. This combination is built to deliver explosive power and clarity, pushing your system to new limits with deep, thunderous bass. With dual voice coils for versatile wiring options, the RAGE subwoofer packs a 2" voice coil and 175 oz magnet, ensuring ground-pounding bass that resonates at any volume. Its exceptional sensitivity (83.8 dB) means you’ll feel every beat, while its compact size allows it to outperform larger subs.

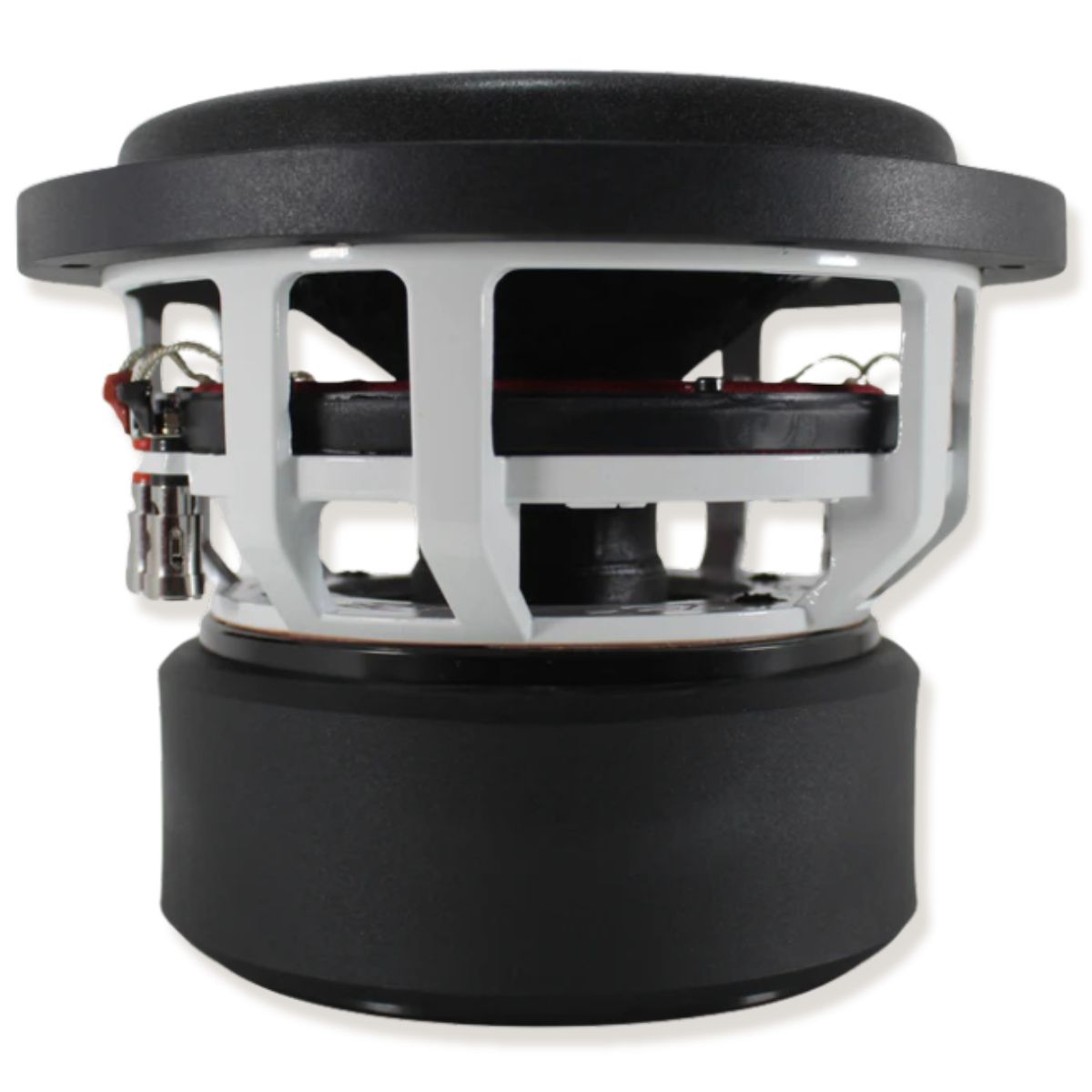

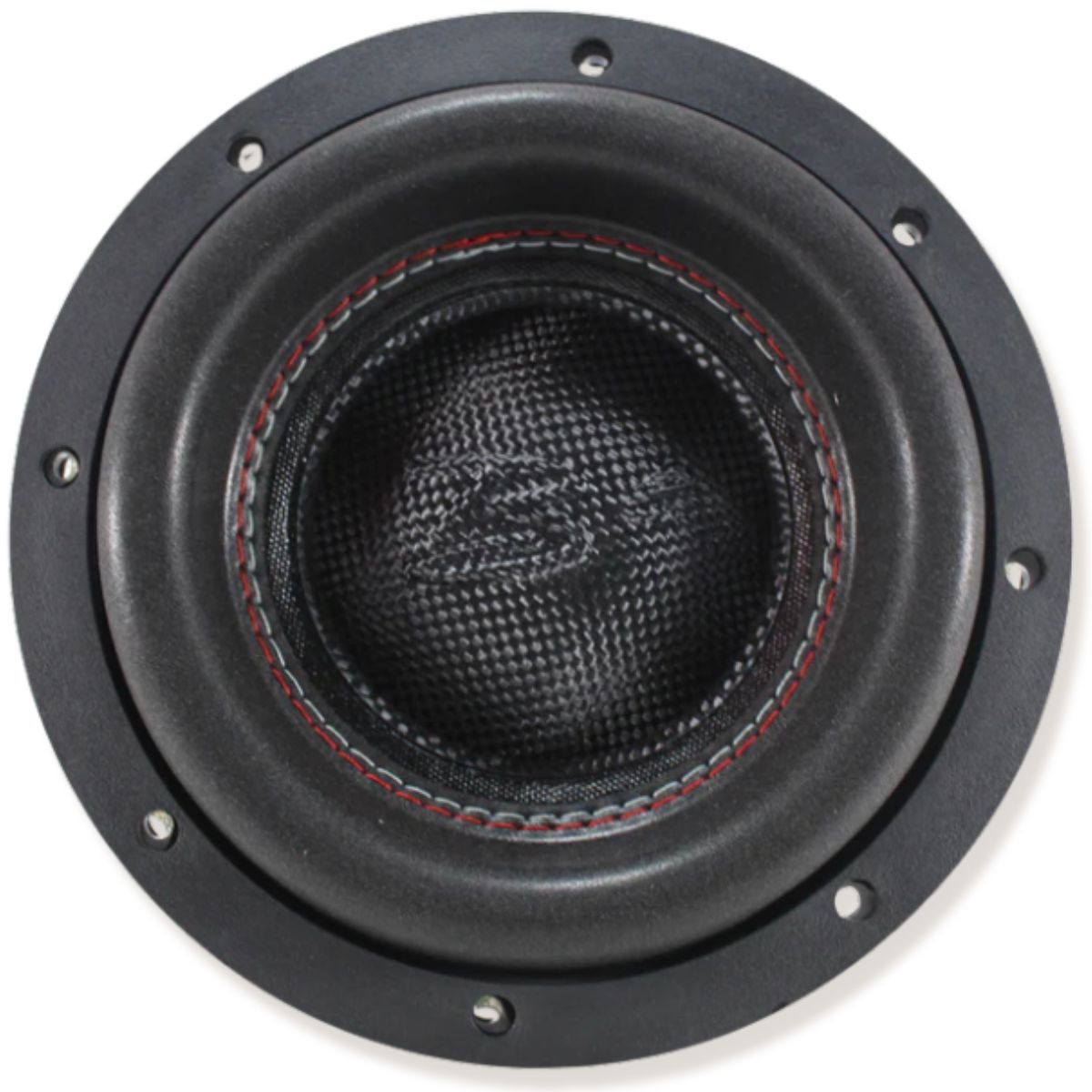

High-Performance Subwoofer Specifications (Per Woofer):



  • RMS Power Handling: 500W

  • Max Power handling: 1000W

  • Nominal Impedance: Dual 2 Ohm or Dual 4 Ohm

  • Voice Coil Diameter: 2"

  • Frequency Response: 10 Hz ~ 500 Hz

  • Sensitivity: 83.8 dB

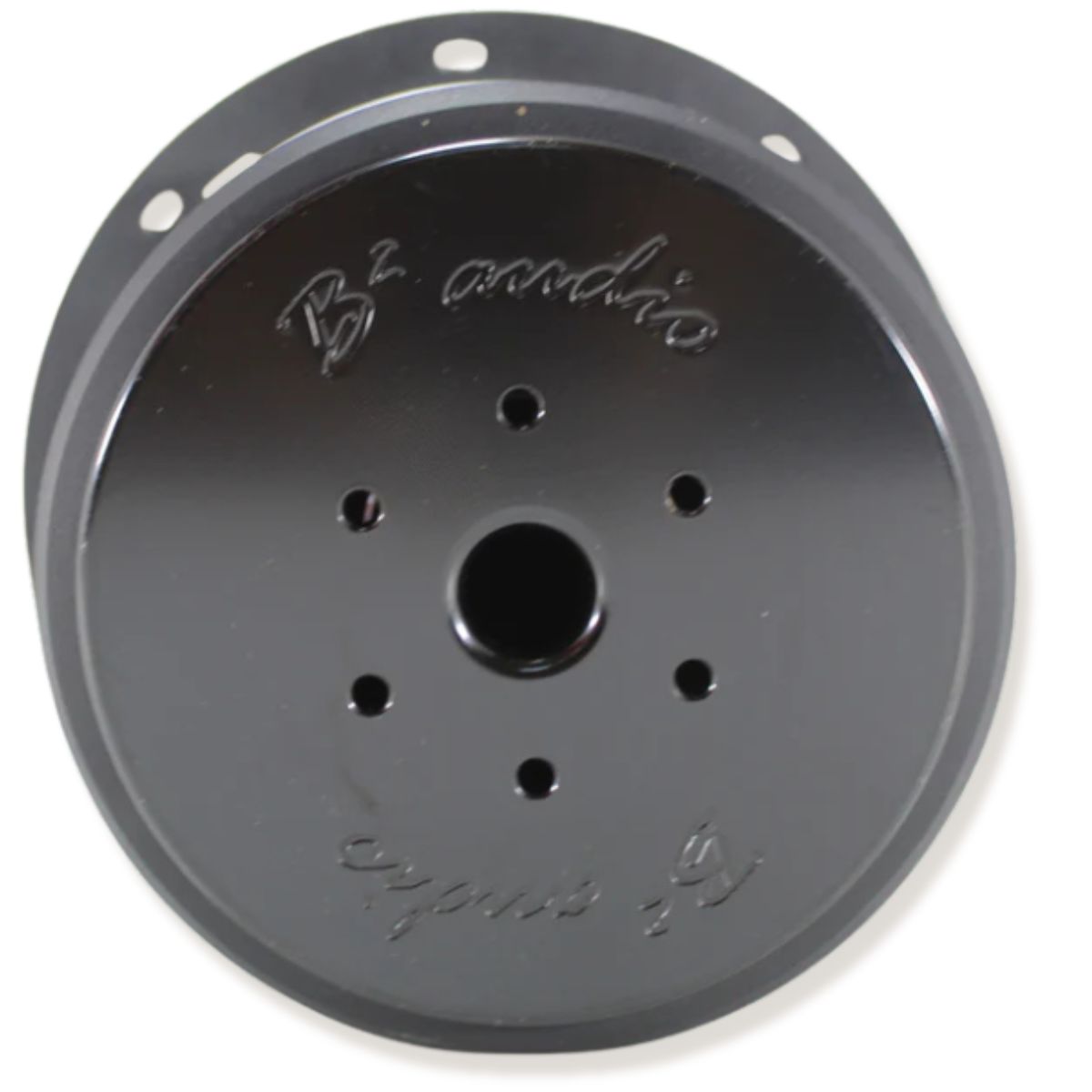

  • Magnet Weight: 175 Oz

  • Displacement: 2.5 L / 0.088 cu.ft

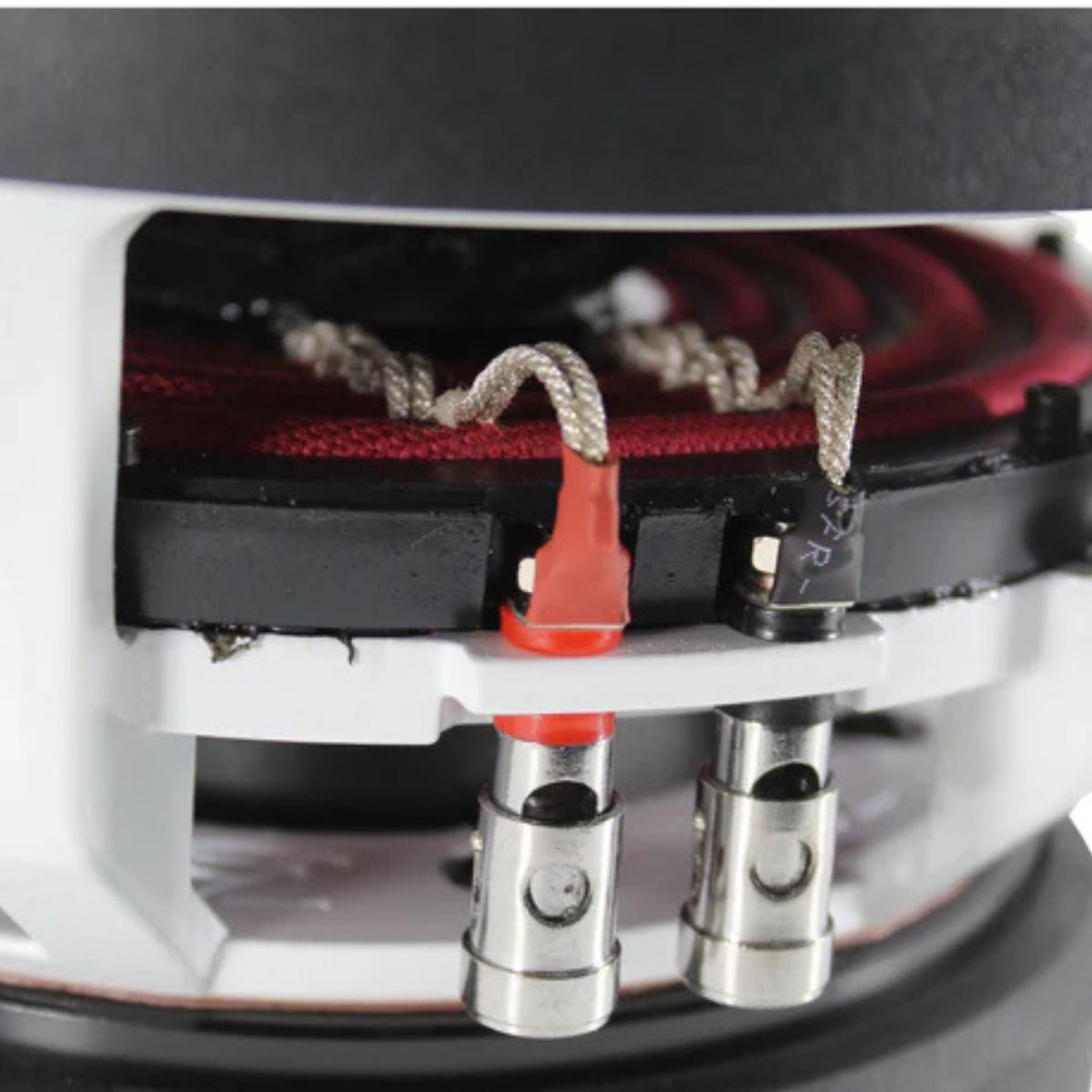

  • 12 AWG Wire Inputs For Push Terminals


Thiele & Small Parameters (2-ohm / 4-Ohm):



  • Free Air Resonance (Fs): 39.3 Hz / 40.9 Hz

  • Resistance (Re): 1.9 Ohm / 3.2 Ohm

  • Mechanical Factor (Qms): 6.09 / 5.64

  • Electrical Factor (Qes): 0.5 / 0.54

  • Total Factor (Qts): 0.48 / 0.47

  • Equivalent Volume (Vas): 5.8 L / 5.9 L

  • Compliance (Cms): 110 um/N / 110 um/N

  • Moving Mass (Mms): 138.5 g / 129.7 g

  • BL Factor (BL): 72.9 TM / 69.5 TM

  • Excursion Max (Xmax): 15 mm / 15 mm


Measurements:



  • Overall Diameter: 8.66" / 220mm

  • Mounting Diameter: 7.83" / 199mm

  • Front Mount Baffle Cutout: 7.28" / 185mm

  • Overall Depth: 6.57" / 167mm

  • Mounting Depth: 5.31" / 135mm

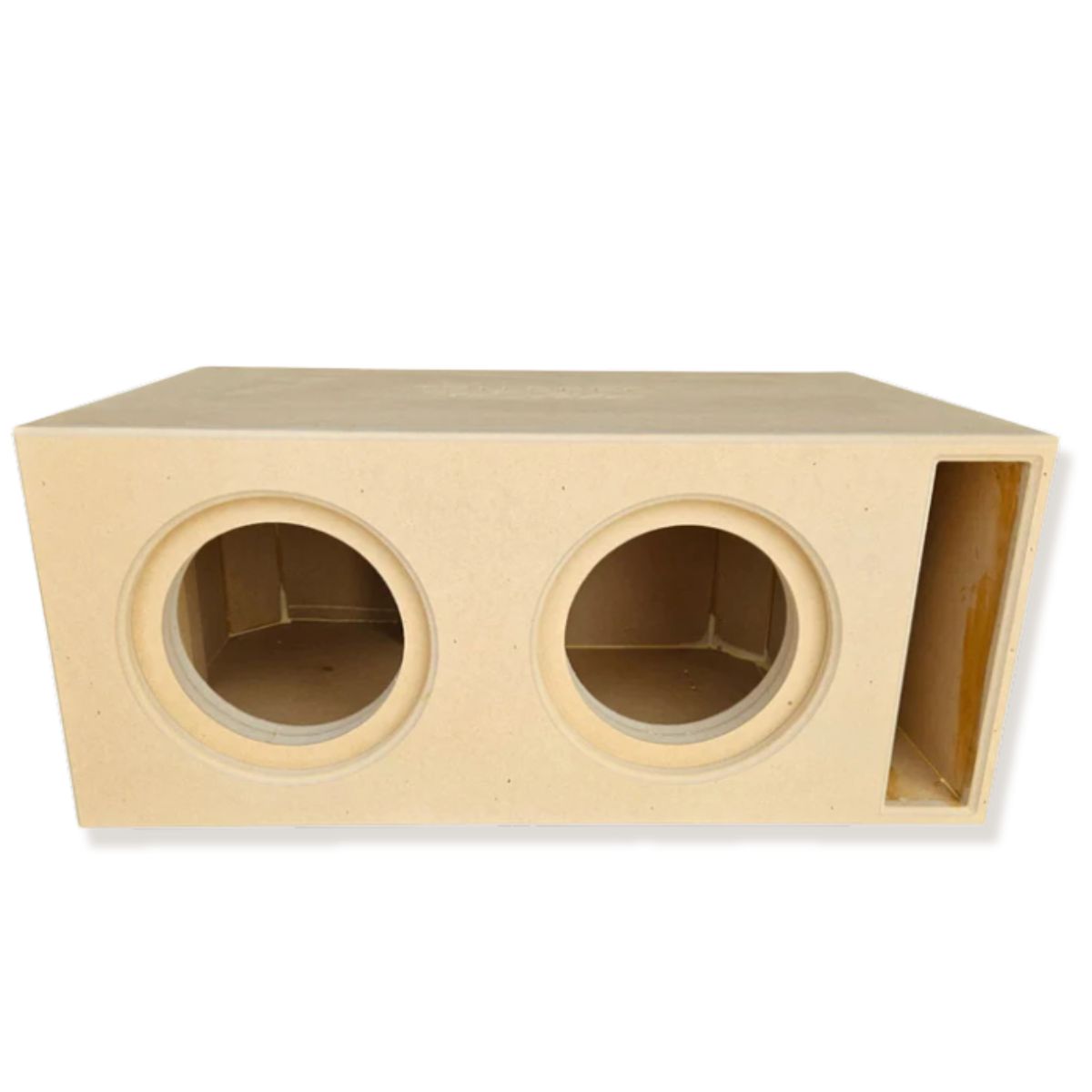

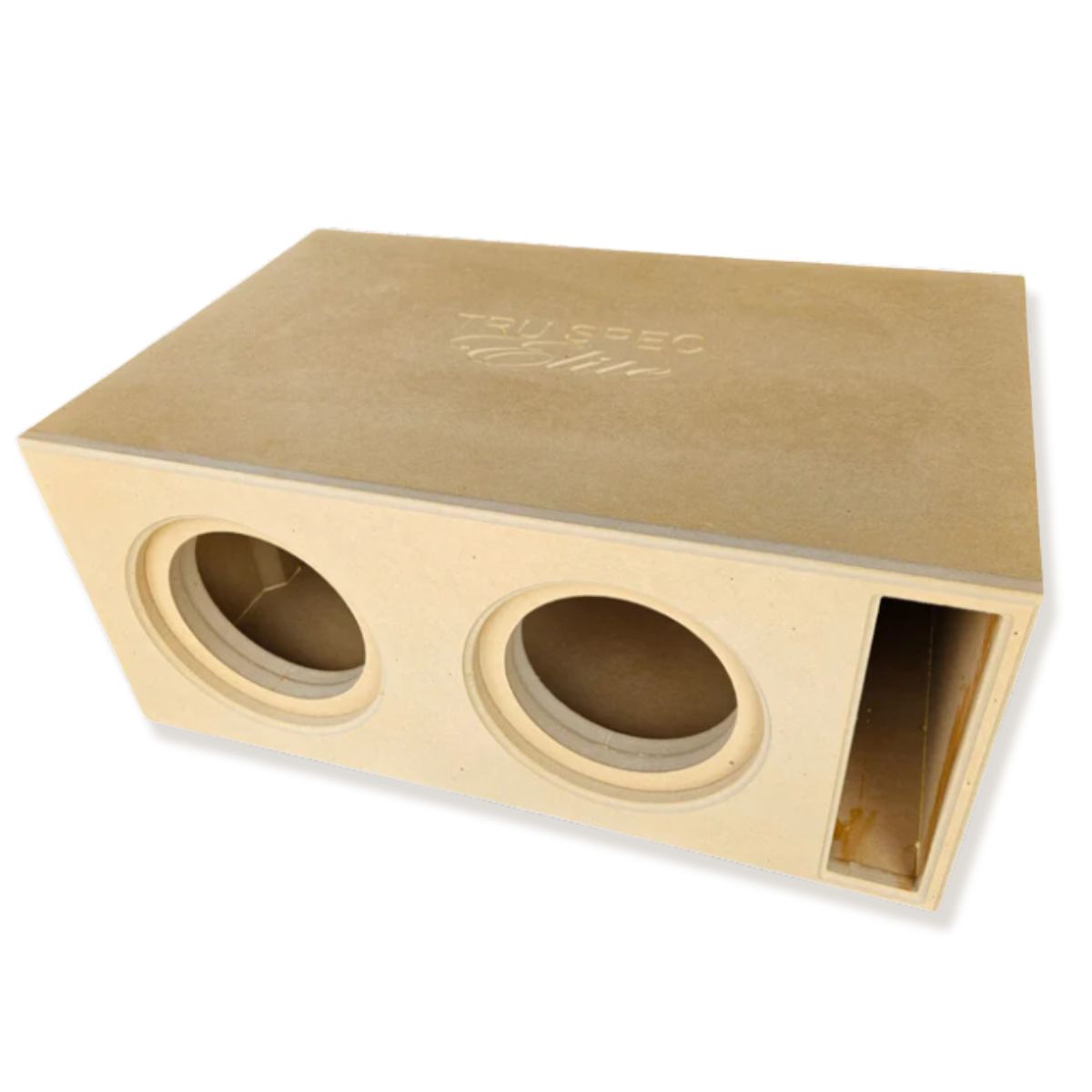

Tru Spec Prefab Double 8" Subwoofer Enclosure

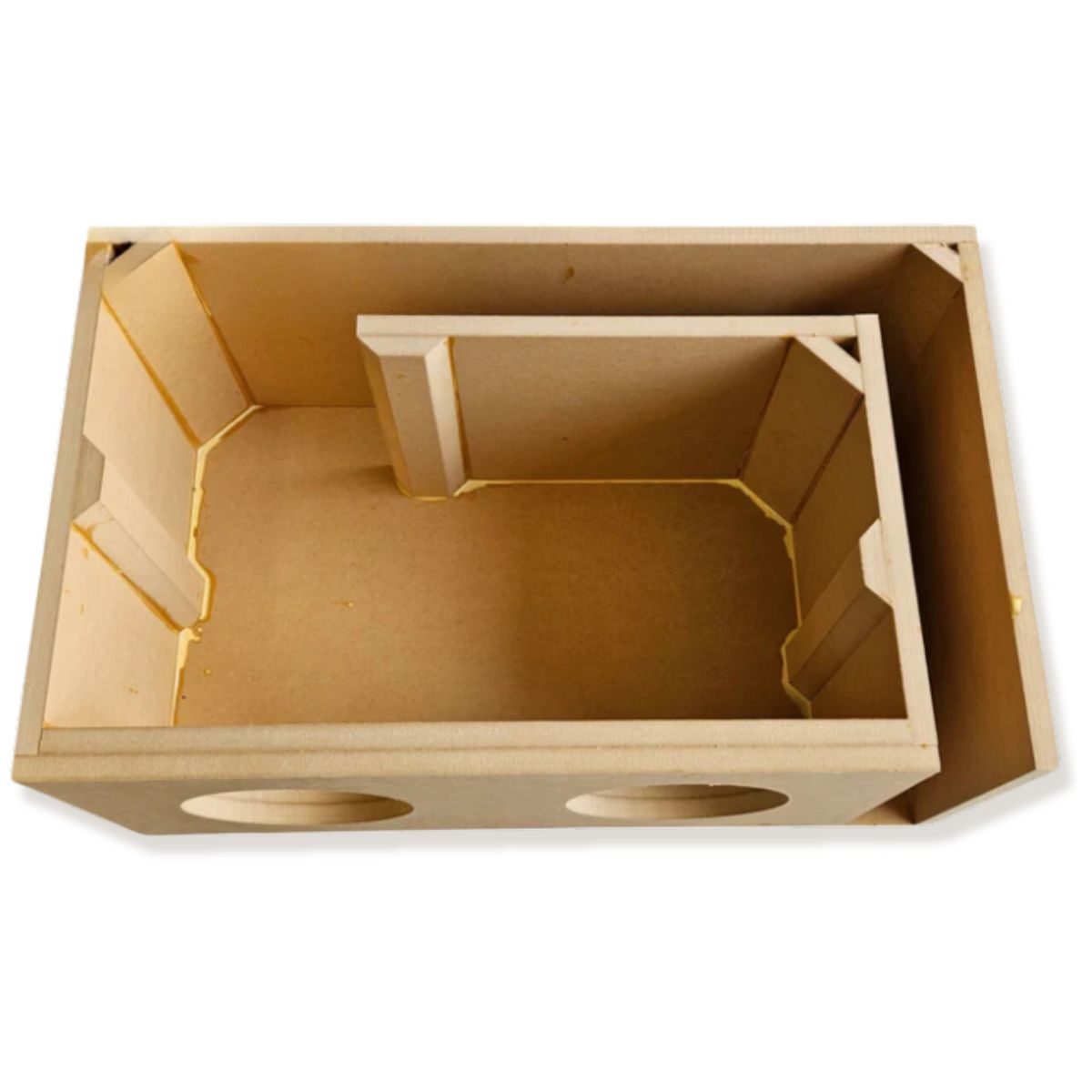

This Tru Spec Prefab Enclosure is designed to complement the B2 Audio RAGE subwoofer perfectly. Constructed with a 0.75" thick MDF material and precisely dialed to manufacturer's specifications, this enclosure provides optimal performance and reliability for the RAGE8. Made with double baffles and internal bracing for heavy duty subwoofers!


Box Dimensions:



  • Length: 30.00"

  • Height: 13.00"

  • Width: 19.50"


Specifications:



  • Material: MDF

  • Cutout: 7.45"

  • Material Thickness: 0.75"

  • Net Internal Volume: 2.00 ft3

  • Tuning Frequency: 32 Hz

  • Port Area: 32.00 inch2


Elevate Your Sound System


With the B2 Audio RAGE Series 8" Subwoofer and Tru Spec Enclosure, experience high-powered bass that commands attention. Perfectly suited for serious bass enthusiasts, this setup will transform your sound system, delivering heart-pounding lows and unparalleled performance. Feel the power, unleash the chaos, and dominate the audio landscape with this powerful subwoofer and enclosure combo!
