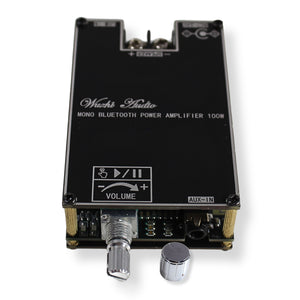

ZK-1001B Bluetooth 100W Mono Channel Amplifier Board for B2 RC2 AUX/USB Inputs

• Inputs: Supports Bluetooth, USB, and 3.5mm AUX, providing multiple ways to connect devices like phones, laptops, and music players.
• Mono Channel Output: 100W power for clear, high-quality sound performance.
• TWS Pairing Functionality: Easily pair two amplifier boards to create a true stereo experience, separating left and right audio channels wirelessly.
• Compact and Durable Design: Perfect for DIY audio projects with reliable performance and easy installation.
• Power & Limitations: Capable of running two RC2 subwoofers; however, it may clip under heavy bass due to the lack of bass and treble adjustments.

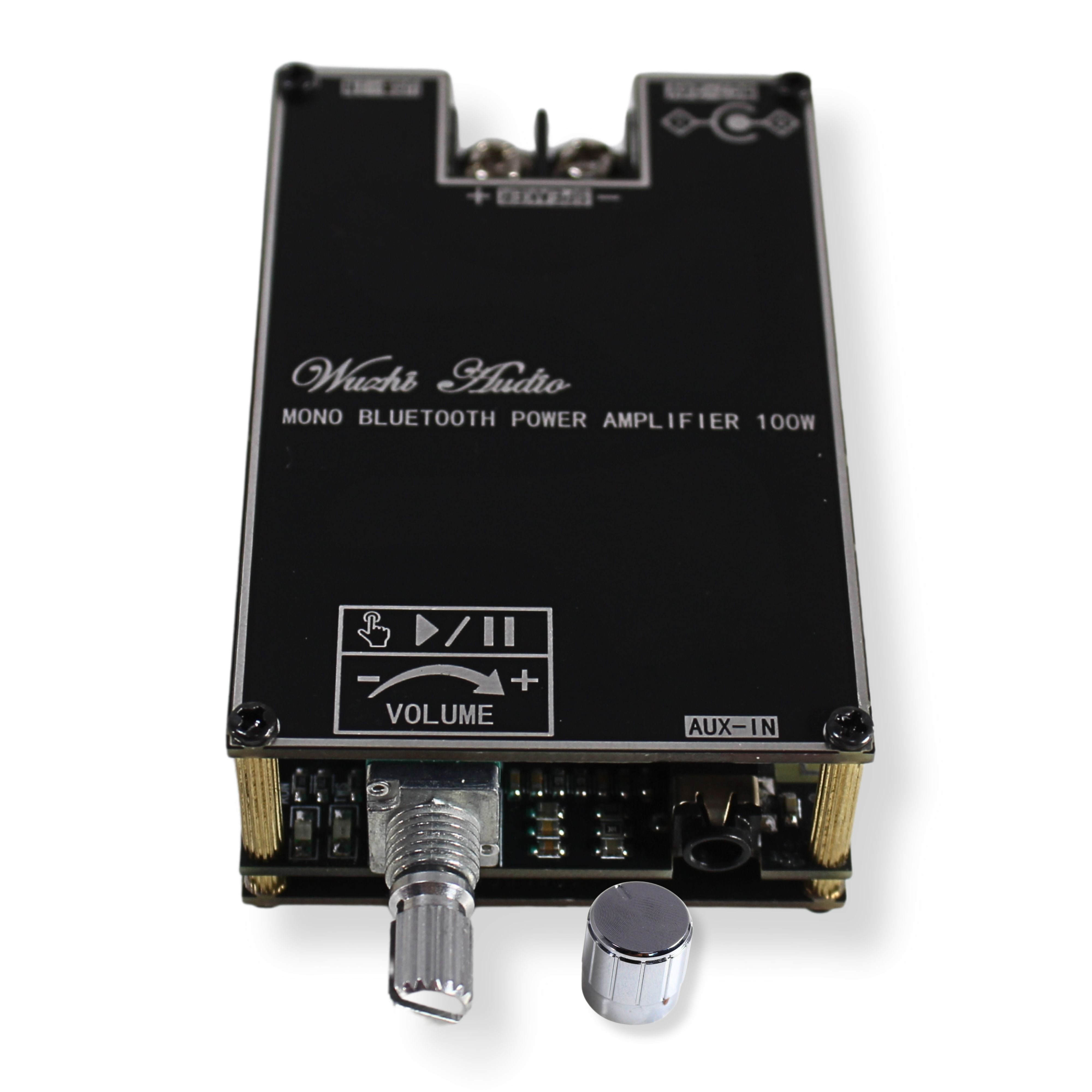

ZK-1001B Bluetooth 100W Mono Channel Amplifier Board w/DC 7-24V, AUX/USB Inputs

This Listing Includes:

• (1) Daakro ZK-1001B Bluetooth Amplifier Board, 100W Mono Channel Amp, DC 24V, TWS Pairing, Multi-Audio Inputs, Knob Controls for DIY Wireless Speakers

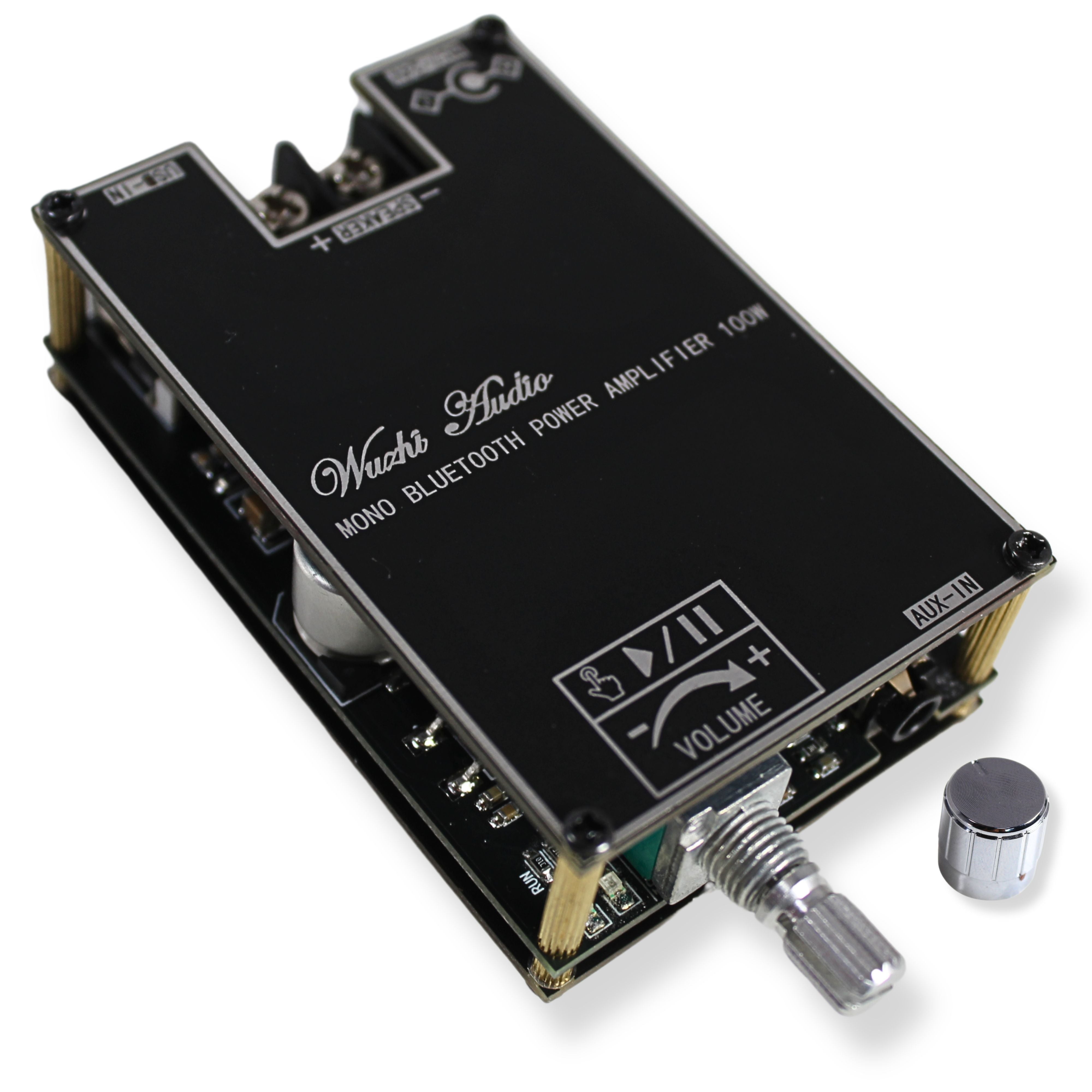

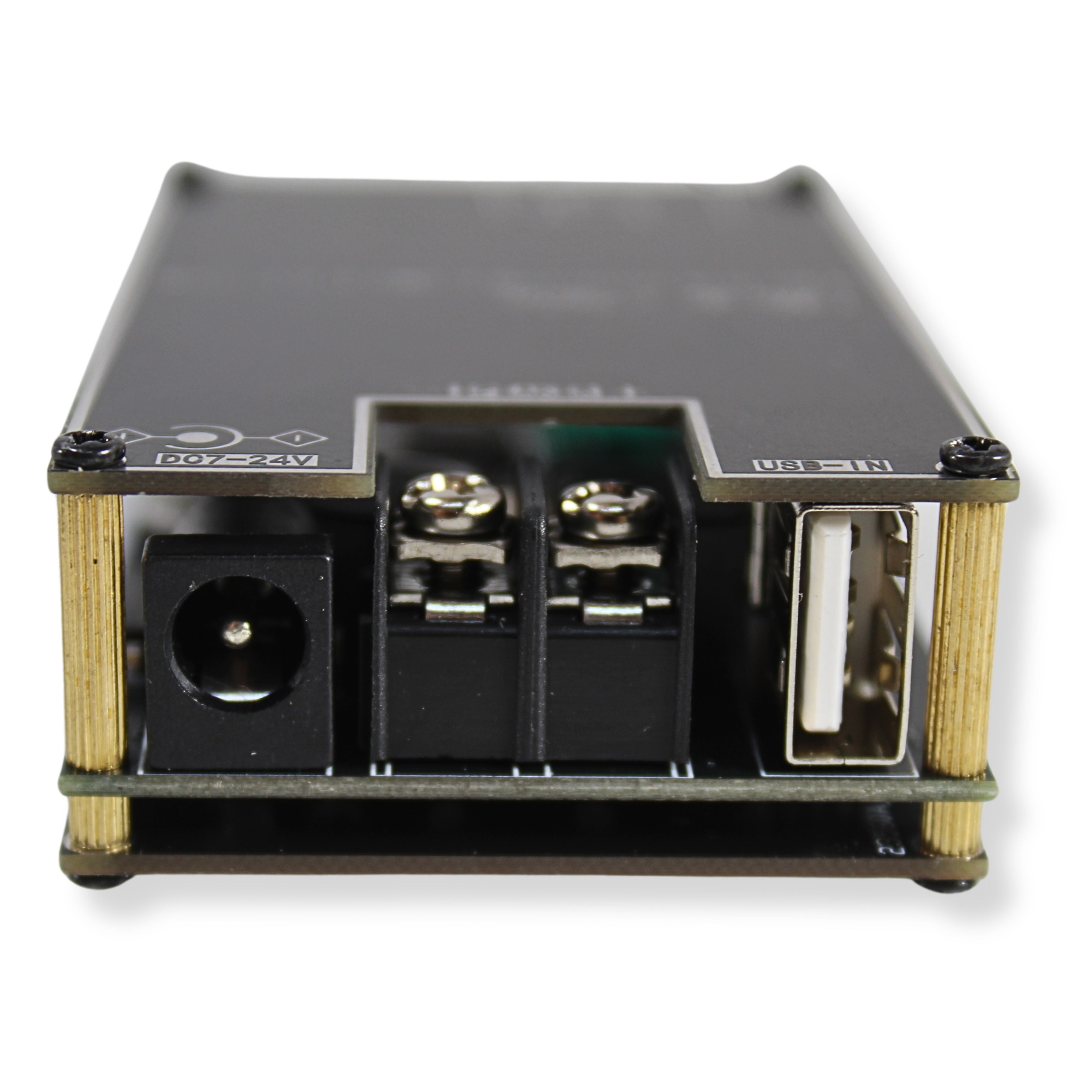

The Daakro ZK-1001B Bluetooth Amplifier Board is a powerful and versatile audio solution designed for DIY home audio projects. Delivering 100W of mono channel output, this amplifier board supports multiple audio inputs, including Bluetooth, USB, and AUX, allowing seamless connectivity with various devices. This Bluetooth power amplifier board uses a TDA3116D2 high-fidelity power amplifier chips, and the power output of a single chip can reach 100W. The large heat sink can quickly release heat to ensure that the chip can stably output large-scale power and avoid damage to the chip. Make wiring more convenient without damaging the wires. 5.5mm * 2.1mm DC interface, suitable for most notebook power adapters. Its compact design, combined with password-free operation and True Wireless Stereo (TWS) pairing functionality, makes it an ideal choice for creating high-quality wireless speaker systems. Capable of running two RC2 subwoofers; however, it may clip under heavy bass due to the lack of bass and treble adjustments.

Key Features:

• High Power Output: 100W mono channel amplifier for robust sound performance.


• Multiple Audio Inputs: Supports Bluetooth, USB flash drive, AUX, and USB sound card inputs for versatile connectivity.


• TWS Pairing Functionality: Easily pair two amplifier boards to create a true stereo experience, separating left and right audio channels wirelessly.

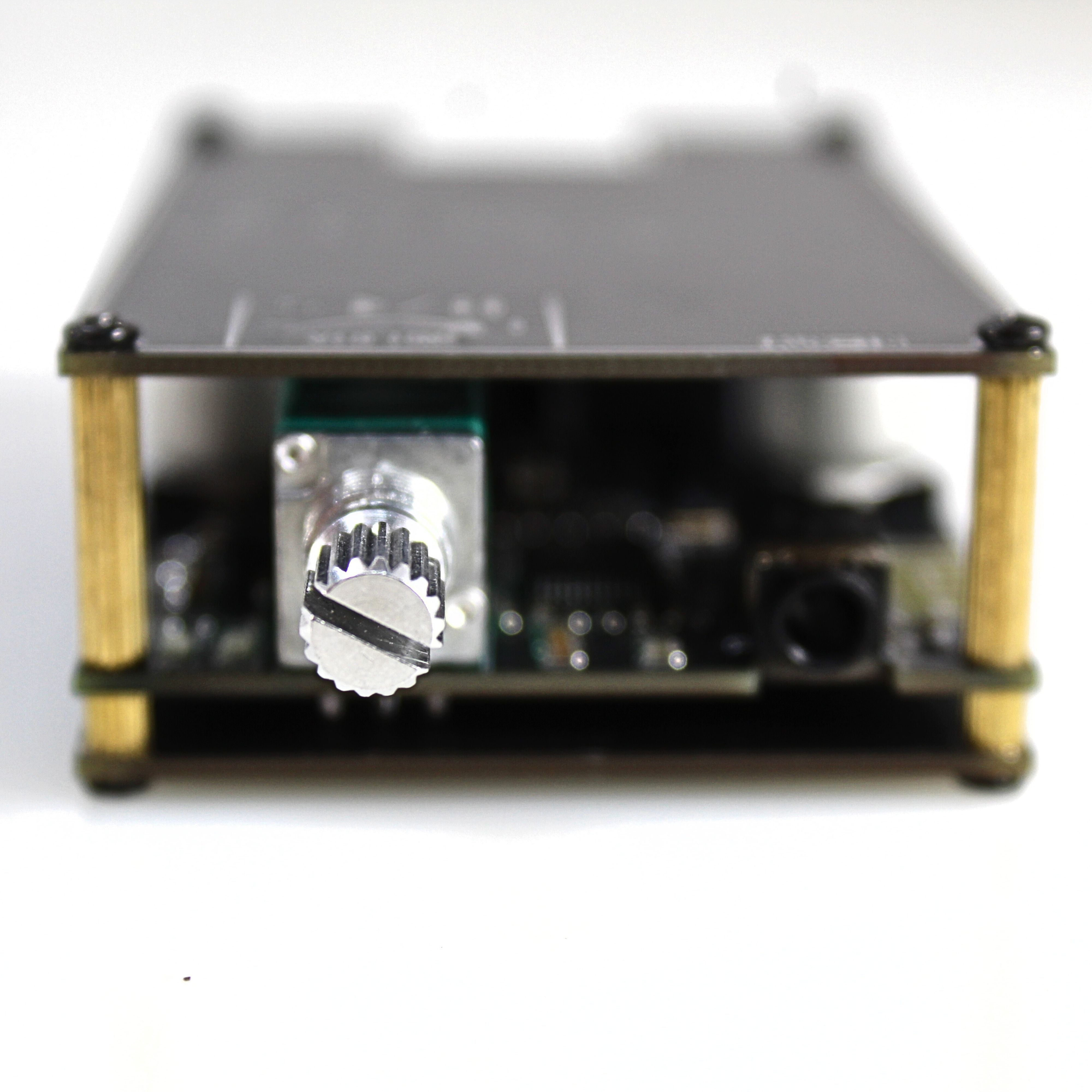

• User-Friendly Knob Controls: Multi-functional knob for volume adjustment, play/pause, track switching, and power control, enhancing ease of use.


• Compact and Durable Design: Perfect for DIY audio projects with reliable performance and easy installation.


• Indicator Lights: WORK and TWS indicators provide clear status updates for hassle-free operation.


• Multi-function Knob Controlled

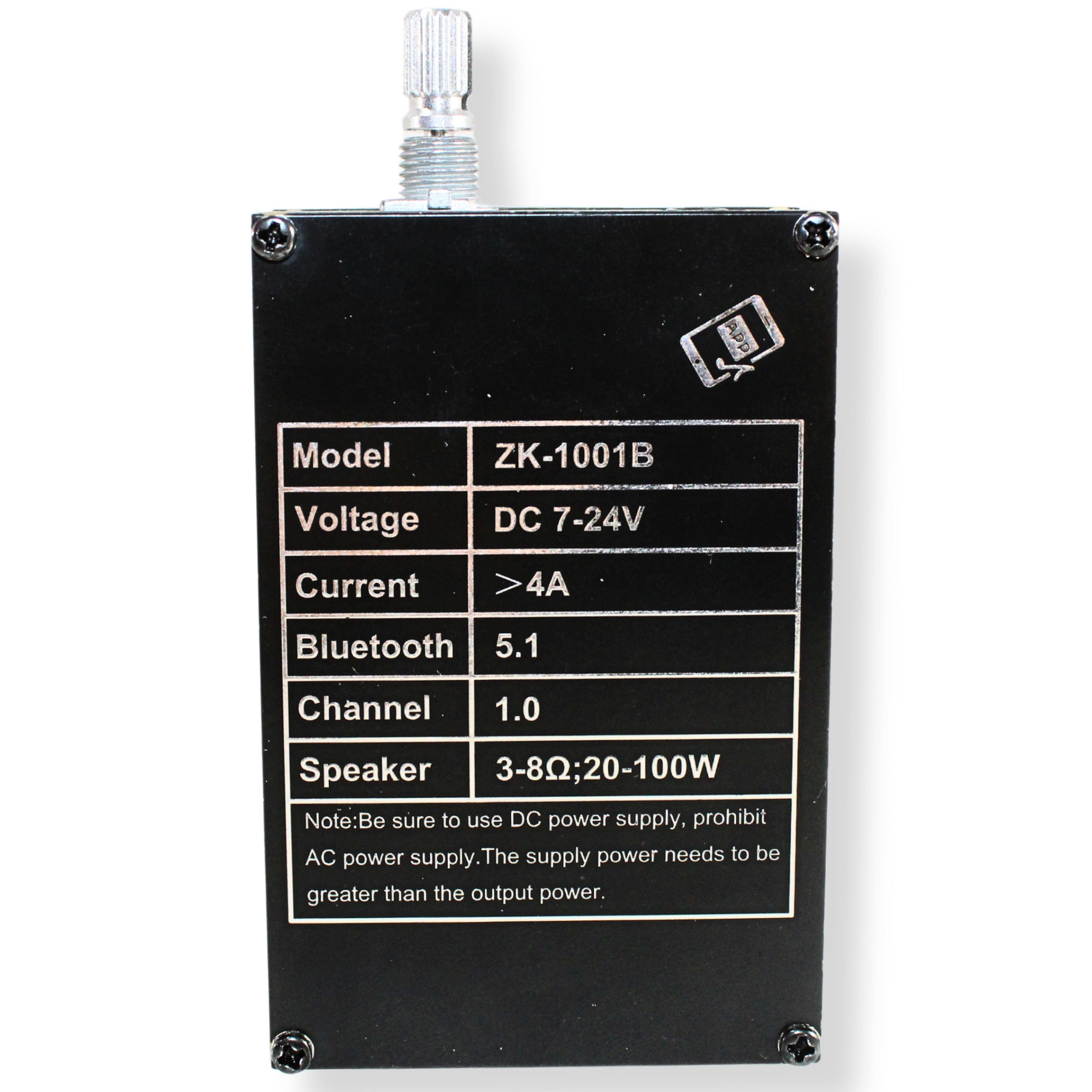

Specifications:

• Number of Channels: 1


• Package Type: Box


• Output Power: 100 Watts


• Voltage: 7 to 24 Volts (DC)


• Bluetooth Version: 5.0


• Supported Audio Inputs: Bluetooth, AUX, USB Flash Drive, USB Sound Card


• Product Dimensions: Compact size for easy integration into DIY setups


• Weight: Lightweight and portable design


• Class: D


• TAP3116D2 Chip


• Large Heat Sink

Power Outputs:

• 12v @ 4 Ohm: 30W


• 12v @ 8 Ohm: 10W


• 15v @ 4 Ohm: 50W


• 15v @ 8 Ohm: 20W


• 19v @ 4 Ohm: 70W


• 19v @ 8 Ohm: 30W


• 24v @ 4 Ohm: 100W


• 24v @ 8 ohm: 50W

Please note: There must be enough voltage and current input to have enough power output. Higher the voltage and current input, higher the power will be. Under the same conditions, the smaller the speaker impedance, the greater the power obtained.

Applications:

• DIY wireless speaker systems


• Home audio enhancements


• Office audio setups


• Custom AV solutions

Dimensions:

• Length: 3.35 in


• Width: 1.80 in


• Height: 0.8 in


• Weight: 1.8 oz

The power switch on the board is a standby switch. After the switch is turned off, the machine is in a low-power standby state. To completely turn off the power or unplug it for a long time, you can unplug the DC plug on the machine.
